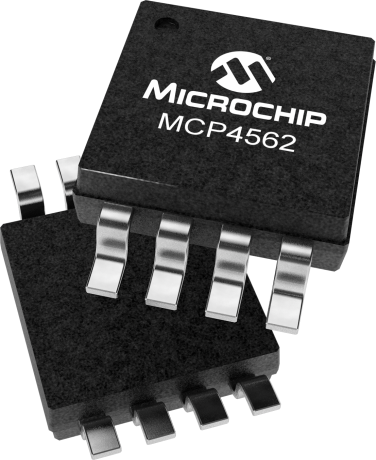

MCP4562-503E/MS Digital Potentiometers by Microchip Technology
8-Bit Single Digital POT with NVM and I2C™
| Status: | Active |
|---|---|
| Series: | mcp4562 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.61
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.94
|
11,590
in stock
|
Buy Now |
|
Newark Electronics
from US$0.83
|
26
in stock
|
Buy Now |
|
element14
from US$1.09
|
26
in stock
|
Buy Now |
|
Farnell
from US$0.97
|
26
in stock
|
Buy Now |
|
Avnet America
from US$0.65
|
0
in stock
|
Buy Now |
|
TME
from US$0.61
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.14
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single Resistor Network |
| Potentiometer or Rheostat configuration options |
| 8-bit: 256 Resistors (129 Steps) |
| 5kΩ |
| 10kΩ |
| 50kΩ |
| 100kΩ |
| Zero-scale to Full-scale Wiper Operation |
| Low Wiper Resistance – 75Ω typical |
| Absolute (Rheostat) – 50 ppm typical (0°-70°C) |
| Ratiometric (Potentiometer) – 15 ppm typical |
| 100 kHz |
| 400 kHz |
| 3.4 MHz |
| Brown-out Reset Protection – 1.5V typical |
| Serial Interface Inactive Current – 2.5 uA typical |
| High-Voltage Tolerant Digital Inputs Up to 12.5V |
| 2.7V to 5.5V - Device Characteristics Specified |
| 1.8V to 5.5V - Device Operation |
| Wide Bandwidth (-3 dB) Operation – 2 MHz typical for 5.0Ω Device |
| Extended Temperature Range (-40°C to +125°C) |
| AEC-Q100 Grade 1 quarlified |
Specifications
| Resolution (Number of Taps) | 257 |
|---|---|
| Resistance (ohms) k | 5, 10, 50, 100 |
| Pins | Packaging | 8 | MSOP |
| Temp Range | -40C to +125C |
| Packing Media | Tube (100) |
