LTC4089EDJC-3#PBF USB Power Manager (PowerPath, Battery Charger) by Analog Devices
| Status: | Production |
|---|---|
| Series: | LTC4089-3 |
| RoHS: | Compliant |

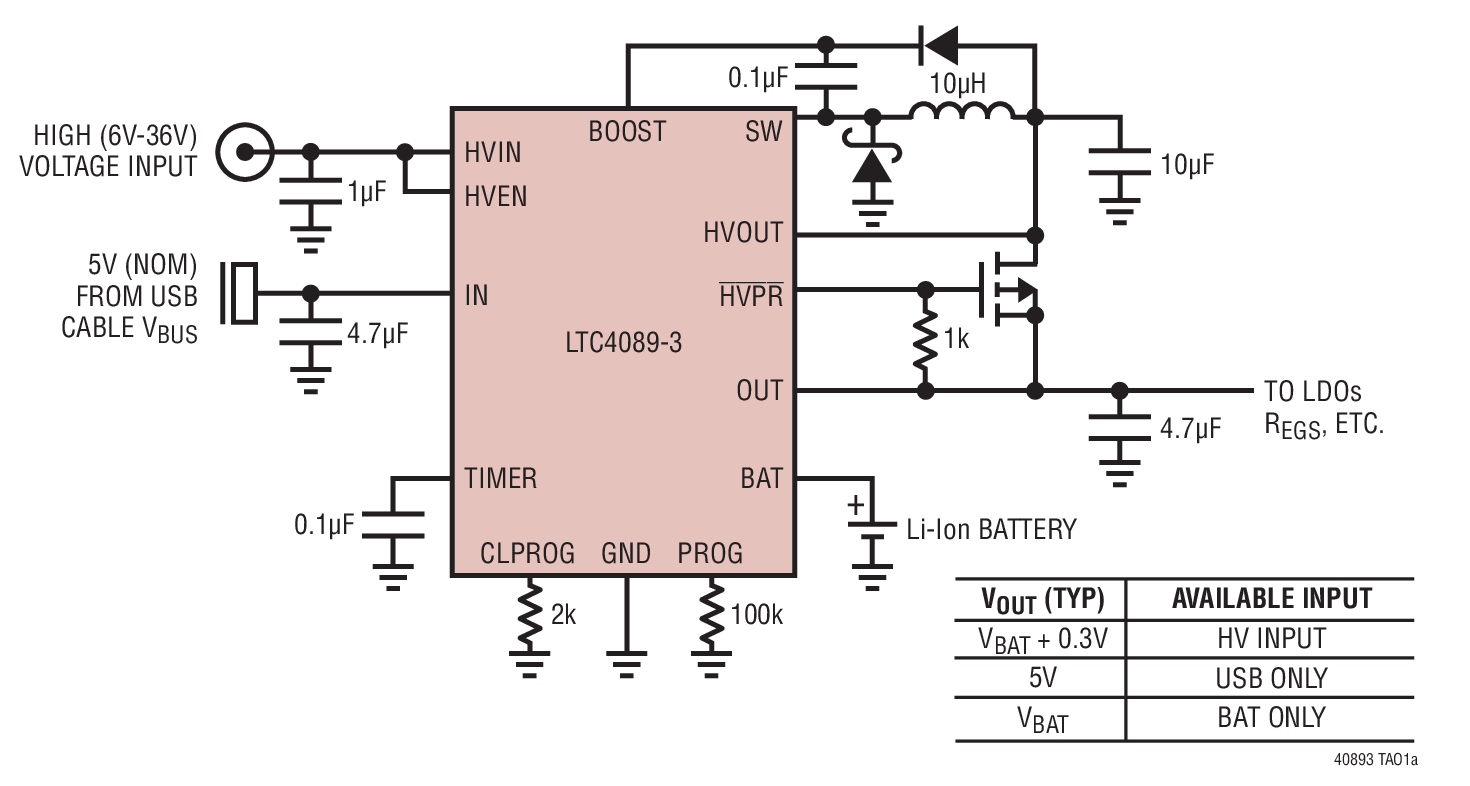

Features
| Seamless Transition Between Power Sources: Li-Ion Battery, USB, and 6V to 36V External Supply |
| High Efficiency 1.2A Charger from 6V to 36V Input with Adaptive Output Control |
| 3.95V Float Voltage Improves Battery Lifespan and High Temperature Safety Margin |
| Load Dependent Charging from USB Input Guarantees Current Compliance |
| 215mΩ Internal Ideal Diode plus Optional External Ideal Diode Controller Provides Low Loss Power Path When External Supply/USB Not Present |
| Constant-Current/Constant-Voltage Operation with Thermal Feedback to Maximize Charging Rate without Risk of Overheating |
| Selectable 100% or 20% Current Limit (e.g., 500mA/100mA) from USB Input |
| Preset 3.95V Charge Voltage with ±0.8% Accuracy |
| C/10 Charge Current Detection Output |
| NTC Thermistor Input for Temperature Qualified Charging |
| Tiny (6mm × 3mm × 0.75mm) 22-Lead DFN Package |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| USB Pwr Manager w/ Hi V Sw Chr | Analog Devices |
| Switching Battery Charger Li-Ion/Li-Pol 1200mA 3.95V Automotive 22-Pin DFN EP Tube | Richardson RFPD |
LTC4089EDJC-3#PBF Special Function by Linear Technology
USB PWR MANAGER 36V 0.5A 3.95V 22DFN
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| IC Function | USB Power Manager |
|---|---|
| Supply Voltage Min | 4.35V |
| Supply Voltage Max | 5.5V |
| IC Package Type | DFN |
| No. of Pins | 22Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (15-Jan-2018) |
