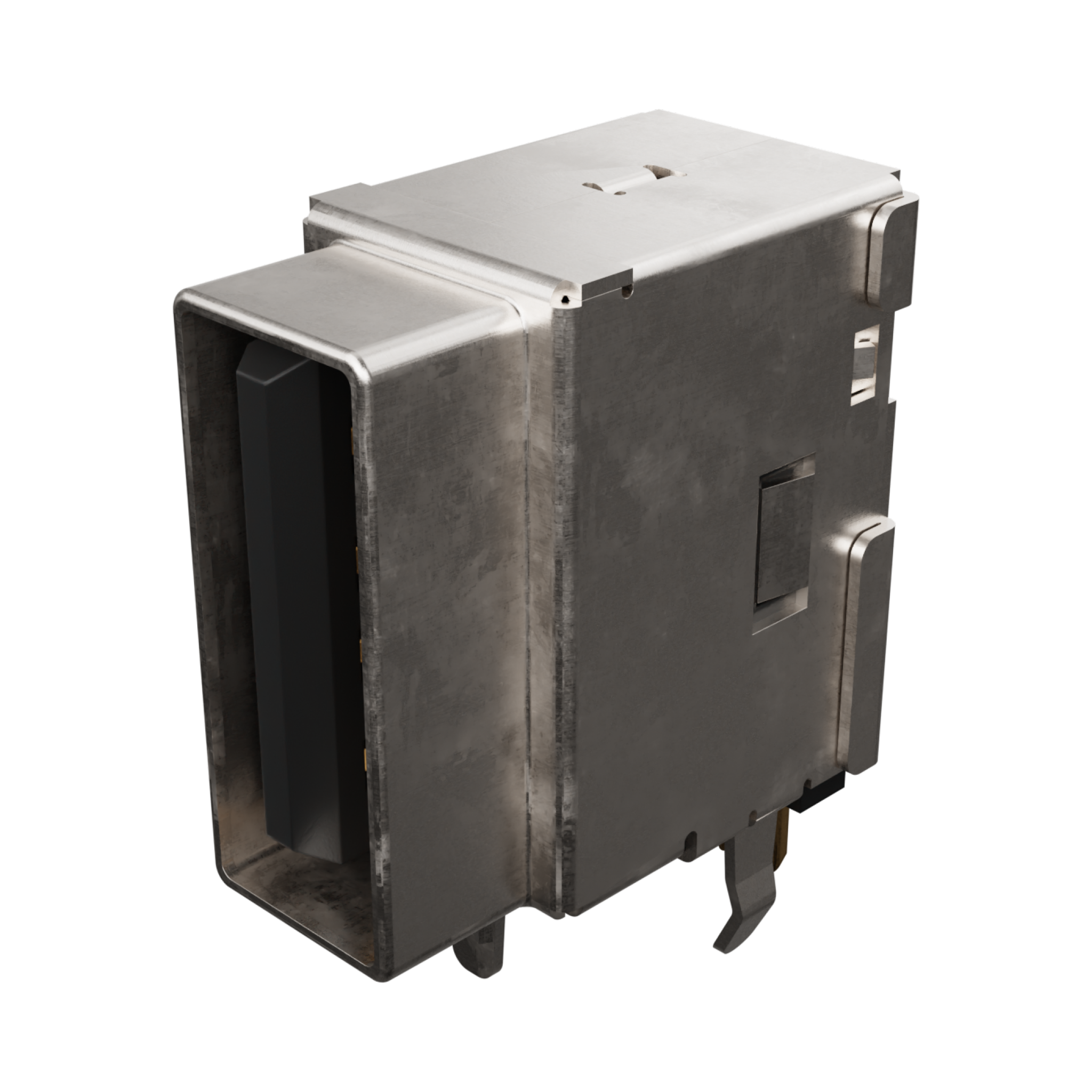

894858003 USB by Molex
Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Single Upright, Right-Angle, Terminal Length 2.50mm, Without Mylar, 0.76µm Gold (Au) Plating, Tray Package, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
89485-8003,
0894858003 |
Where to Buy
Prices starting from US$0.80
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.03
|
1,350
in stock
|
Buy Now |
|
TME
from US$1.11
|
1,250
in stock
|
Buy Now |
|
Conrad
from US$2.14
|
1,250
in stock
|
Buy Now |
|
Newark Electronics
from US$1.55
|
280
in stock
|
Buy Now |
|
element14
from US$1.36
|
280
in stock
|
Buy Now |
|
Farnell
from US$1.51
|
280
in stock
|
Buy Now |
|
Rutronik
from US$0.92
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.96
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.80
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | USB |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 750V AC (RMS) |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Female |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Upright |
| Net Weight | 2.261/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Panel Mount | No |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.50mm |
| Pitch Mating Interface | 2.00mm, 2.50mm |
| Pitch Termination Interface | 1.40mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| USB REC 4P UPRIGHT SHLD TYPE A | TTI Americas |
| Connector: USB A | TME |
| Universal Serial Bus Buchse Senkrecht 894858003 Molex Inhalt: 1 St. | Conrad |
| Usb Conn, 2.0, Usb Type A, Rcpt, Tht | Newark Electronics |
| USB CONN, 2.0, USB TYPE A, RCPT, THT | element14 |
| USB Type-A R/A Upright THT | Rutronik |
| SINGLE PORT UP-RIGHT USB | TTI Europe |
| SINGLE PORT UP-RIGHT USB CONN (L/F) | Heilind Americas |
