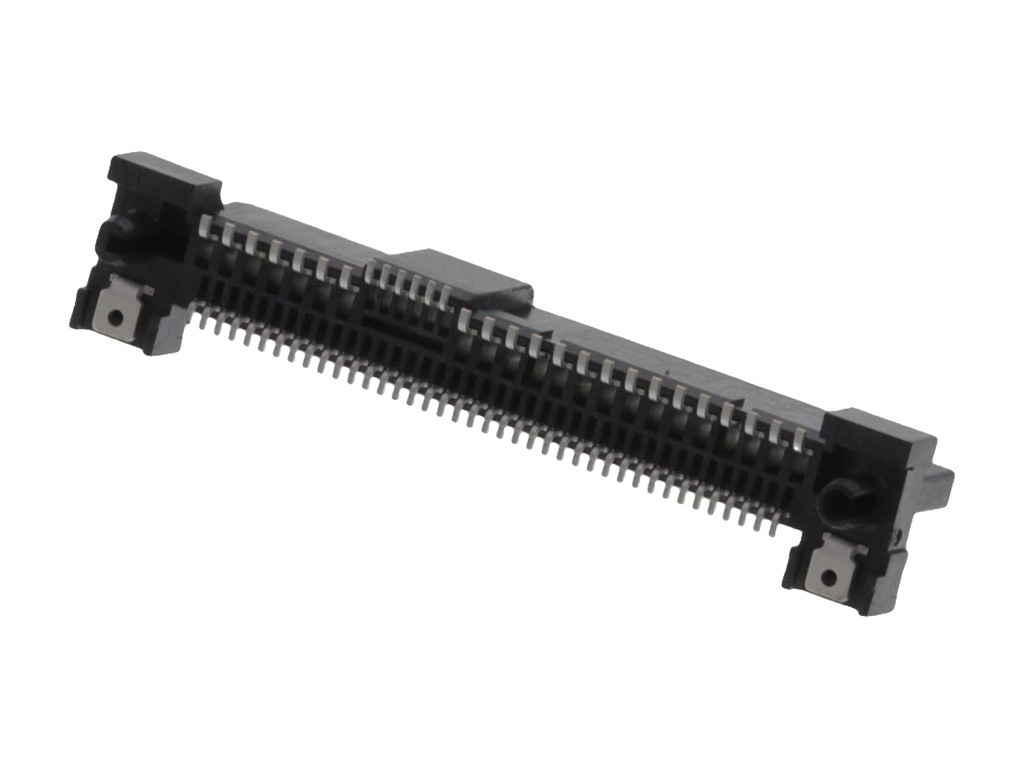

787570001 SAS-3/PCIe-3,U.2 (SFF-8639) by Molex
1.27mm Signal Pitch, 0.80mm Signal Pitch, 1.27mm Power Pitch SAS-3/PCIe-3 Receptacle, Vertical, Surface Mount, with Front Solder Tab, 8.15mm Height, 2.00mm Peg Length, 2.36mm Peg Diameter, 1.60mm PCB Thickness, 68 Circuits, with Cap, Embossed Tape and Reel, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
78757-0001,
0787570001 |
Where to Buy
Prices starting from US$4.60
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$16.72
|
9,600
in stock
|
Buy Now |
|
TME
from US$7.59
|
9,600
in stock
|
Buy Now |
|
Conrad
from US$12.28
|
9,600
in stock
|
Buy Now |
|
Farnell
from US$14.26
|
8,800
in stock
|
Buy Now |
|
RS
from US$12.16
|
0
in stock
|
Buy Now |
|
element14
from US$13.07
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$8.85
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.60
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SAS-3/PCIe-3,U.2 (SFF-8639) |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Circuits Detail | Signal 53, Power 15 |
| Circuits Loaded | 68 |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Gender | Female |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.887/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.80mm, 1.27mm |
| Pitch Termination Interface | 0.80mm, 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | 0° to +55°C |
| Termination Interface Style | Surface Mount |
