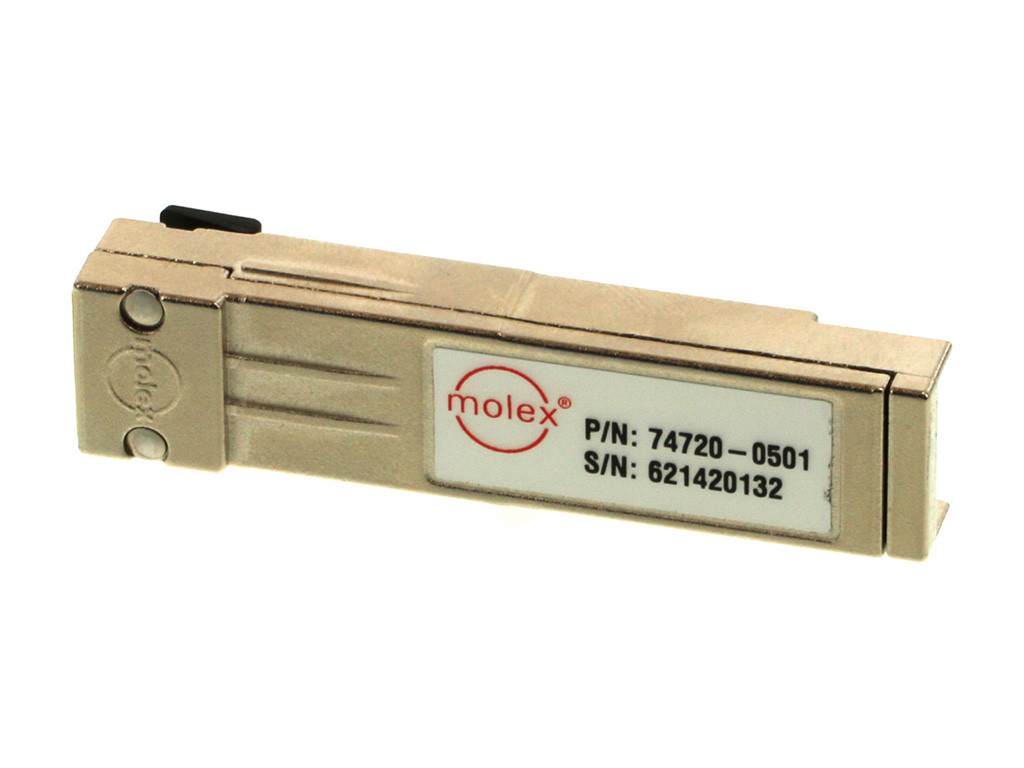

747200501 SFP by Molex
Small Form-Factor Pluggable (SFP) Loopback Adapter, 3.5 db Attenuation
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: |
74720-0501,
0747200501 |
Specifications
| Product Name | SFP |
|---|---|
| Application | Module-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | N/A |
| Grounding To Panel | N/A |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 5V |
Physical |
|
|---|---|
| Boot Color | N/A |
| Circuits Loaded | N/A |
| Color Resin | Black |
| Gender | Dual |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Plating Mating | N/A |
| Material Resin | Polycarbonate |
| Net Weight | 22.000/g |
| Orientation | Horizontal |
| Panel Mount | No |
| Pcb Locator | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | N/A |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | N/A |
| Ports | 1 |
| Termination Interface Style | N/A |
| Waterproof Dustproof | No |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SFP ADAPTER ASSY LOOPBACK W/SERIAL ID | Farnell |
| Loopback Adapter | Newark Electronics |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 747200501?
Additional datasheets, footprints and schematics for 747200501 are listed on our Part Details page. You can also find images and similar parts to 747200501 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 747200501 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 747200501 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 747200501 fall under?
The 747200501 is listed under High-Speed I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 747200501 when available in the High-Speed I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 747200501 you can contact the distributor directly for product support, shipping queries etc.
Is the 747200501 RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for 747200501 have stock available?
Authorised distributors including Farnell, Newark Electronics and Avnet Abacus have stock available or on a lead time for 747200501.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 747200501 often in real-time on the comparison pages.
What if I can't find stock of 747200501?
You can fill out our help required form which you can use to request a quote for 747200501 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
