534620629 2.00mm I/O Connectors by Molex

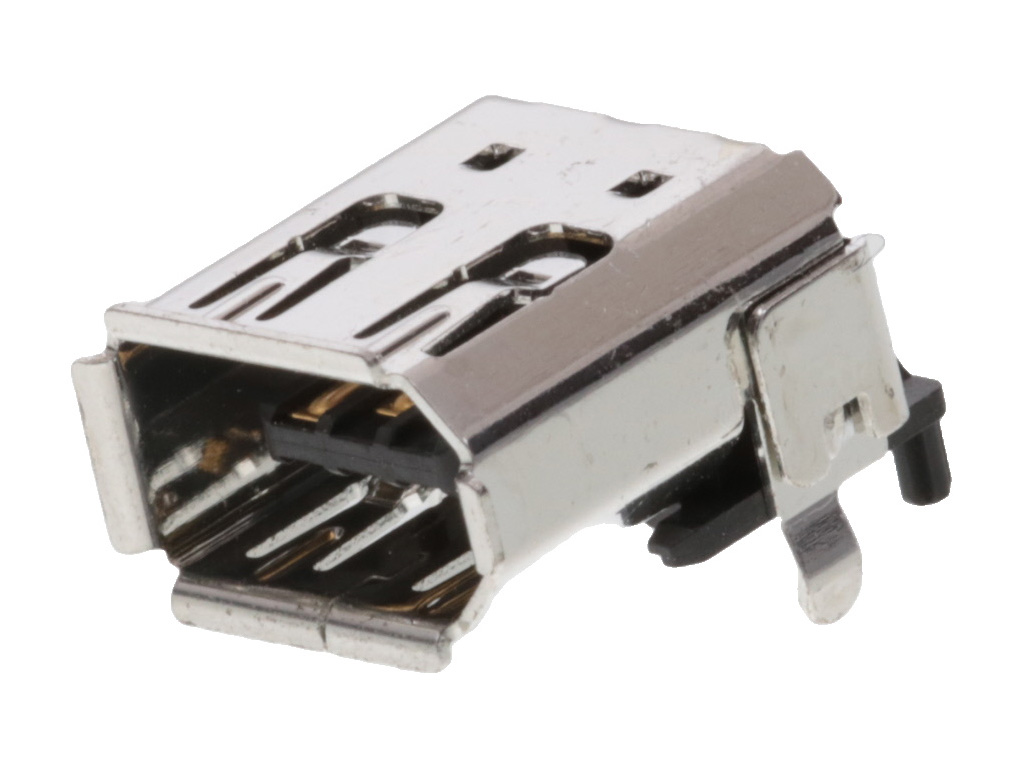

2.00mm Pitch IEEE 1394-1995 Shielded I/O PCB Socket, Right-Angle, Flat, Surface Mount, 6 Circuits, Tray Packaging
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53462-0629,
0534620629 |
Where to Buy
Prices starting from US$2.08
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$8.17
|
24,170
in stock
|
Buy Now |
|
Farnell
from US$6.48
|
21,754
in stock
|
Buy Now |
|
TTI Americas
from US$5.79
|
3,000
in stock
|
Buy Now |
|
element14
from US$5.85
|
86
in stock
|
Buy Now |
|
Newark Electronics
from US$7.64
|
21
in stock
|
Buy Now |
|
TME
from US$6.94
|
11
in stock
|
Buy Now |
|
RS
from US$4.20
|
3
in stock
|
Buy Now |
|
Avnet Abacus
-
|
149
in stock
|
Buy Now |
|
Avnet America
from US$5.20
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$7.38
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$5.43
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.64
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.00mm I/O Connectors |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A, 1.5A |
| Shielded | Yes |
| Voltage Maximum | 40V |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Lock To Mating Part | Yes |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1953.434/mg |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.00mm |
| Pitch Mating Interface | 2.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -25° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 534620629 2.0 IO UPRT DIP SMT Molex Inhalt: 1 St. | Conrad |
| I-O CONNECTORS | Farnell |
| 2.00MM REC 6P RA SHLD SMT | TTI Americas |
| CONN, FIREWIRE IEEE-1394, RCPT, 6POS | element14 |
| Conn, Firewire Ieee-1394, Rcpt, 6Pos | Newark Electronics |
| Connector: wire-board | TME |
| Molex 53462-0629 Firewire Connector | RS |
| I/O Connector, 6 Contacts, Receptacle, Firewire IEEE-1394, Solder, 53462, PCB Mount | Avnet Abacus |
| 53462 SERIES 6 WAY RIGHT ANGLE SURFACE MOUNT FIREWIRE CONNECTOR SOCKET | RS Americas |
| IEEE1394 SHIELDED PCB SOCKET | TTI Europe |
| 2.0 I/O FLAT SMT WAFER ASSY W KINK 6CKT | Heilind Americas |
