524651871 SlimStack by Molex

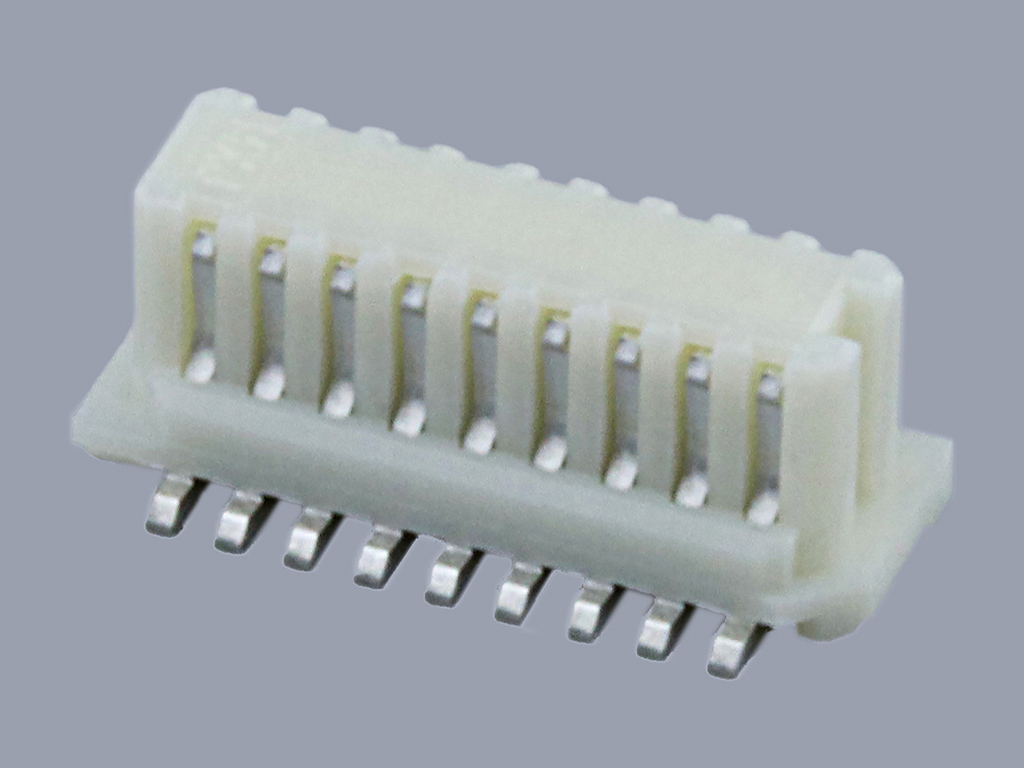

SlimStack Board-to-Board Connector, 0.80mm Pitch, Rigid Type Receptacle, 4.50 or 5.65mm Mated Height, Vertical, 18 Circuits, without Boss
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52465-1871,
0524651871 |
Where to Buy
Prices starting from US$0.88
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.07
|
5,250
in stock
|
Buy Now |
|
TME
from US$1.17
|
1,000
in stock
|
Buy Now |
|
Conrad
from US$1.63
|
1,000
in stock
|
Buy Now |
|
Farnell
from US$1.22
|
1,000
in stock
|
Buy Now |
|
element14
from US$1.45
|
910
in stock
|
Buy Now |
|
Newark Electronics
from US$1.75
|
756
in stock
|
Buy Now |
|
Avnet America
from US$1.23
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.79
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.11
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.89
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.88
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 18 |
| Circuits Maximum | 18 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Mated Height | 4.50mm, 5.65mm |
| Mated Width | 4.70mm, 5.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 187.700/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.80mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.8MM BTB SMT RECEPT 18CK 524 51891 | Heilind Americas |
| Connector: PCB to PCB | TME |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 18 Rastermaß: 0.80 mm 524651871 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, RCPT, 18POS, 2ROW, 0.8MM | Farnell |
| CONNECTOR, RCPT, 18POS, 2ROW, 0.8MM | element14 |
| Connector, Rcpt, 18Pos, 2Row, 0.8Mm | Newark Electronics |
| Conn Board to Board RCP 18 POS 0.8mm Solder ST SMD Embossed T/R | Avnet America |
| 0.8MM BTB SMT RECEPT 18CK 524651891 | RS Americas |
| SLIMSTACK BOARD-TO-BOARD | TTI Europe |
