512810694 Easy-On by Molex

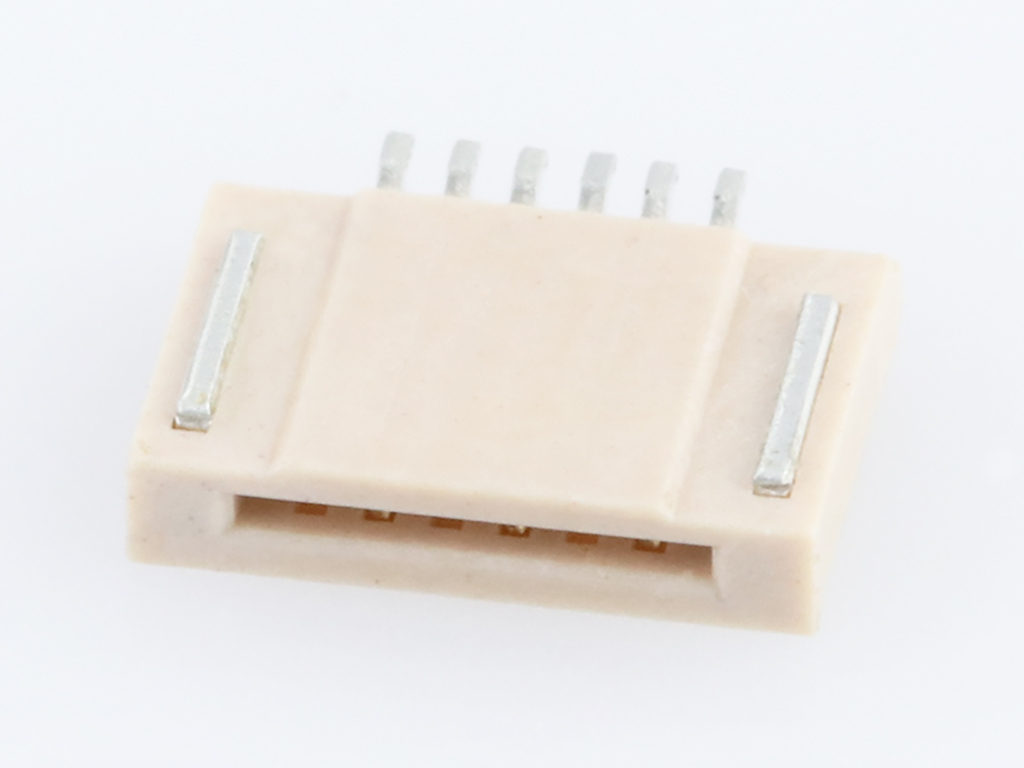

0.50mm Pitch Easy-On FFC/FPC Connector, Surface Mount, Right-Angle, Non-ZIF, Dual Contact Style, 1.20mm Mated Height, 6 Circuits, Gold (Au) Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51281-0694,
0512810694 |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.45
|
210,000
in stock
|
Buy Now |
|
Farnell
from US$0.44
|
192,000
in stock
|
Buy Now |
|
TME
from US$0.30
|
1,327
in stock
|
Buy Now |
|
RS Americas
from US$0.32
|
640
in stock
|
Buy Now |
|
CoreStaff
from US$0.20
|
26
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
1
in stock
|
Buy Now |
|
|
RS
from US$0.40
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 6 |
| Color Resin | Natural |
| Contact Position | Dual |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.20mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 51.774/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 6 Rastermaß: 0.5 mm 512810694 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 6POS, 1ROW, 0.5MM | Farnell |
| Connector: FFC/FPC | TME |
| EASY ON FFC FPC, DUAL CONTACT STYLE, 1.2MM MATED HEIGHT, 6 CIRCUITS, GOLD | RS Americas |
| Connector, Ffc/Fpc, 6Pos, 1Row, 0.5Mm | Newark Electronics |
| Molex 51281-0694 FPC Connector | RS |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 512810694?
Additional datasheets, footprints and schematics for 512810694 are listed on our Part Details page. You can also find images and similar parts to 512810694 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 512810694 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 512810694 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 512810694 fall under?
The 512810694 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 512810694 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 512810694 you can contact the distributor directly for product support, shipping queries etc.
Is the 512810694 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 512810694 have stock available?
Authorised distributors including Conrad, Farnell, TME, RS Americas and CoreStaff have stock available or on a lead time for 512810694.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 512810694 often in real-time on the comparison pages.
What if I can't find stock of 512810694?
You can fill out our help required form which you can use to request a quote for 512810694 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
