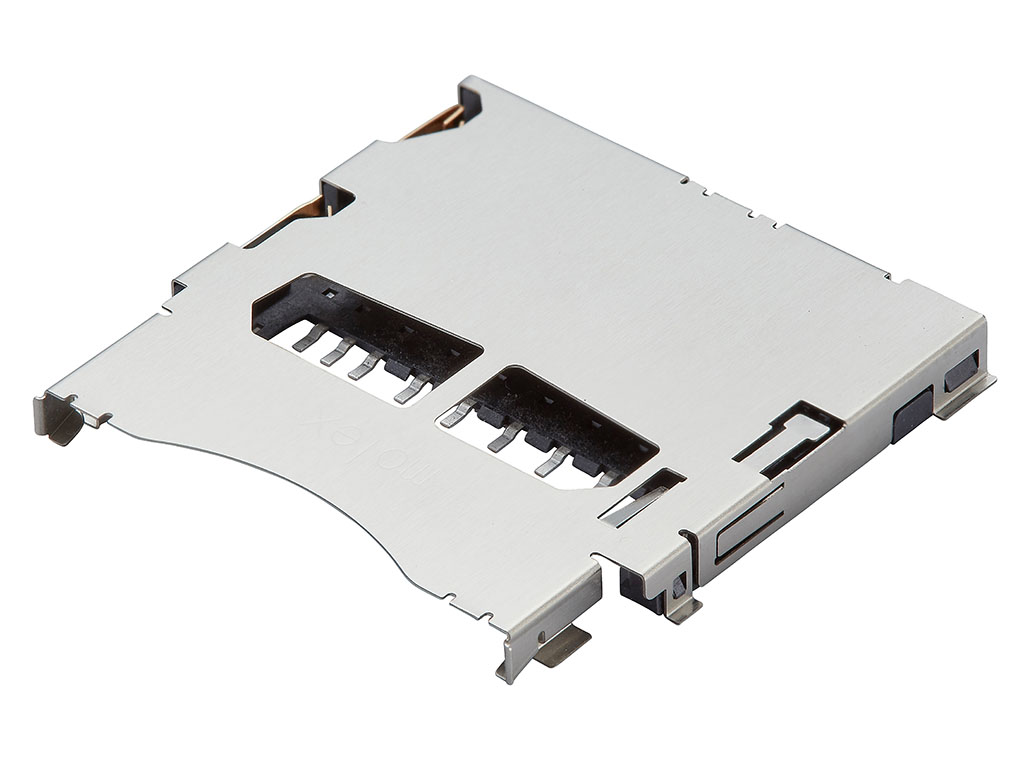

5035000991 SD Card by Molex
2.50mm Pitch SD Memory Card Connector, 2.95mm Height, Normal Mount, Push-Push, with Detect, Protect and Anti-Card-Fly-Out Features
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 503500-0991 |
Where to Buy
Prices starting from US$2.86
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$4.32
|
85
in stock
|
Buy Now |
|
element14
from US$2.86
|
85
in stock
|
Buy Now |
|
Offical Electronic
-
|
137
in stock
|
Buy Now |
|
Farnell
from US$3.94
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
TTI Europe
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SD Card |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Shielded | Yes |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Card Detection Switch | Open |
| Card Entry Location | Front |
| Circuits Loaded | 9 |
| Durability Mating Cycles Max | 10000 |
| Ejector Button Side | N/A |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Shell | Stainless Steel |
| Net Weight | 1547.679/mg |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.50mm |
| Temperature Range Operating | -25° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.50mm SD Memory Card Connector PushPush | RS |
| CONNECTOR, SD CARD, 9POS | element14 |
| Conn SD Card Receptacle 9 POS 2.5mm Solder Right Angle Surface Mount | Avnet America |
| 2.50MM SD MEMORY CARD CONNECTO | TTI Europe |
| 2.50MM SD 09P P/P .116 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5035000991?
Additional datasheets, footprints and schematics for 5035000991 are listed on our Part Details page. You can also find images and similar parts to 5035000991 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5035000991 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5035000991 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5035000991 fall under?
The 5035000991 is listed under Memory / SIM Card Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5035000991 when available in the Memory / SIM Card Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5035000991 you can contact the distributor directly for product support, shipping queries etc.
Is the 5035000991 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5035000991 have stock available?
Authorised distributors including RS, element14, Offical Electronic, Farnell and Avnet America have stock available or on a lead time for 5035000991.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5035000991 often in real-time on the comparison pages.
What if I can't find stock of 5035000991?
You can fill out our help required form which you can use to request a quote for 5035000991 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
