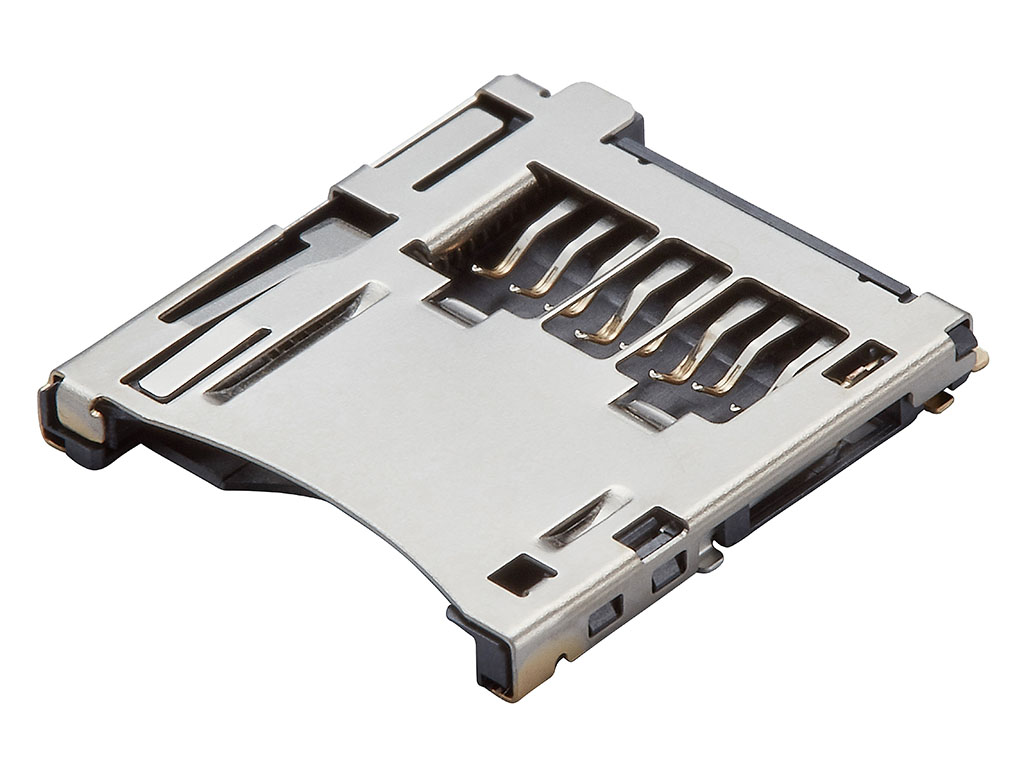

5027740891 microSD Card by Molex
1.10mm Pitch microSD Memory Card Connector, Reverse Mount Surface Mount, Push-Push Type
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502774-0891 |
Where to Buy
Prices starting from US$1.64
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$1.64
|
0
in stock
|
Buy Now |
|
RS
from US$1.82
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$2.09
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.35
|
0
in stock
|
Buy Now |
|
element14
from US$1.85
|
0
in stock
|
Buy Now |
|
Sager
from US$2.93
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.71
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
TTI Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | microSD Card |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Shielded | Yes |
| Voltage Maximum | 10V AC (RMS)/DC |
Physical |
|
|---|---|
| Card Detection Switch | Open |
| Card Entry Location | Front |
| Circuits Loaded | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10000 |
| Ejector Button Side | N/A |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Shell | Stainless Steel |
| Net Weight | 422.587/mg |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.10mm |
| Plating Min Mating | 0.500µm |
| Plating Min Termination | 2.000µm |
| Temperature Range Operating | -25° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 08P micro_SD-Card Holder Push-Push | Rutronik |
| Micro SD connector,rev mnt,SMT,push-push | RS |
| Microsd Reverse Assy 8Ckt Embstp Pkg |Molex 502774-0891 | Newark Electronics |
| RIGHT ANGLE SURFACE MOUNT MICRO SD CARD CONNECTOR, WITH SOLDER TERMINATION | RS Americas |
| CONNECTOR, MICRO SD, 8POS | element14 |
| Memory Card Connectors 1.10MM MICRO SD 08P REV P/P | Sager |
| Conn Micro SD Card Receptacle 8 POS 1.1mm Solder Right Angle Surface Mount | Avnet America |
| 1.10MM MICRO SD 08P REV P/P | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5027740891?
Additional datasheets, footprints and schematics for 5027740891 are listed on our Part Details page. You can also find images and similar parts to 5027740891 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5027740891 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5027740891 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5027740891 fall under?
The 5027740891 is listed under Memory / SIM Card Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5027740891 when available in the Memory / SIM Card Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5027740891 you can contact the distributor directly for product support, shipping queries etc.
Is the 5027740891 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5027740891 have stock available?
Authorised distributors including Rutronik, RS, Newark Electronics, RS Americas and element14 have stock available or on a lead time for 5027740891.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5027740891 often in real-time on the comparison pages.
What if I can't find stock of 5027740891?
You can fill out our help required form which you can use to request a quote for 5027740891 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
