5025984593 Easy-On by Molex

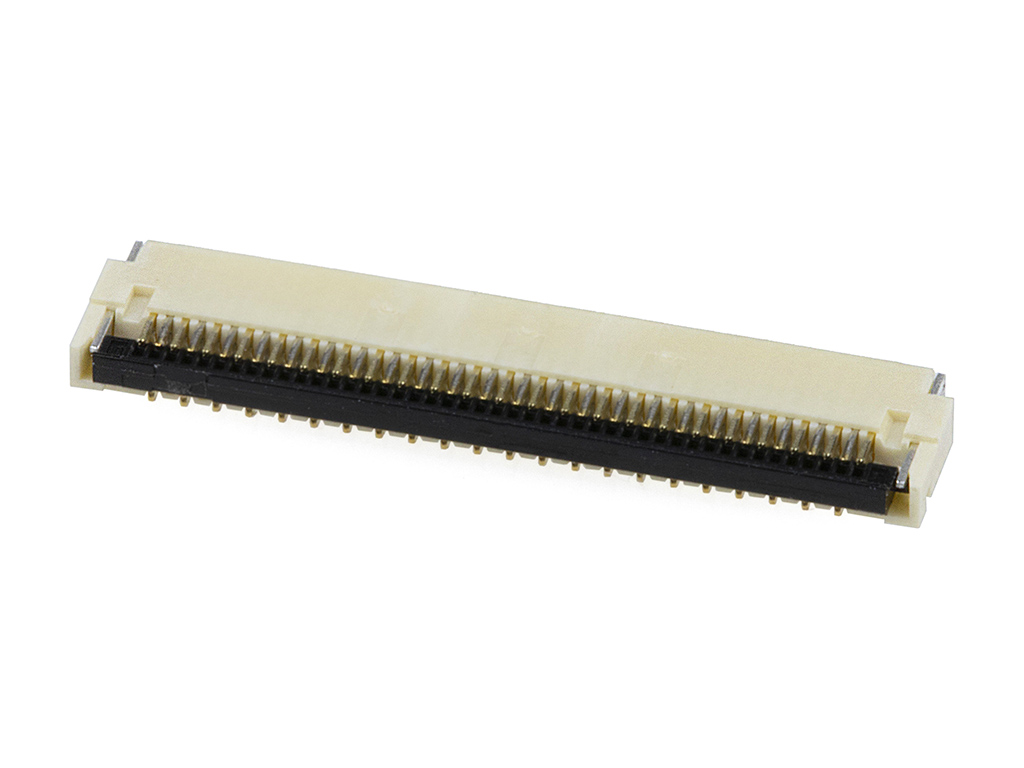

Easy-On Back Flip FPC Connector, 0.30mm Pitch, Right-Angle, Surface Mount, Dual Contact Style, 1.15mm Mated Height, 45 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502598-4593 |
Where to Buy
Prices starting from US$0.80
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.82
|
42,000
in stock
|
Buy Now |
|
Farnell
from US$1.88
|
38,500
in stock
|
Buy Now |
|
Avnet America
from US$1.49
|
6,000
in stock
|
Buy Now |
|
element14
from US$1.74
|
3,144
in stock
|
Buy Now |
|
TTI Americas
from US$1.60
|
1,883
in stock
|
Buy Now |
|
TME
from US$1.58
|
731
in stock
|
Buy Now |
|
Newark Electronics
from US$1.98
|
620
in stock
|
Buy Now |
|
RS
from US$1.67
|
350
in stock
|
Buy Now |
|
Avnet Abacus
-
|
15,000
in stock
|
Buy Now |
|
|
RS Americas
from US$2.14
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.57
|
0
in stock
|
Buy Now |
|
Sager
from US$2.11
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.80
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Back Flip |
| Circuits Loaded | 45 |
| Color Resin | Black, White |
| Contact Position | Dual |
| Durability Mating Cycles Max | 10 |
| Mated Height | 1.15mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 108.887/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.30mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FPC only |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 45 Rastermaß: 0.3 mm 5025984593 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 45POS, 1ROW, 0.3MM | Farnell |
| FFC/FPC Connector Socket 45 Position 0.3 mm Solder Right Angle Surface Mount Emboss T/R | Avnet America |
| FPC CONNECTOR, RCPT, 45POS, 0.2MM, SMD | element14 |
| .3MM 45P EASY-ON RA SMT | TTI Americas |
| Connector: FFC/FPC | TME |
| Fpc Connector, Rcpt, 45Pos, 0.2Mm, Smd | Newark Electronics |
| Molex 502598-4593 FPC Connector | RS |
| 0.3 FPC BACK FLIP HSG ASSY45CKTEMBSTPPKG | RS Americas |
| 0.3FPC BACK FLIP HSG ASSY45CKT | TTI Europe |
| FFC & FPC Connectors .3MM 45P EASY-ON RA SMT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5025984593?
Additional datasheets, footprints and schematics for 5025984593 are listed on our Part Details page. You can also find images and similar parts to 5025984593 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5025984593 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5025984593 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5025984593 fall under?
The 5025984593 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5025984593 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5025984593 you can contact the distributor directly for product support, shipping queries etc.
Is the 5025984593 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5025984593 have stock available?
Authorised distributors including Conrad, Farnell, Avnet America, element14 and TTI Americas have stock available or on a lead time for 5025984593.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5025984593 often in real-time on the comparison pages.
What if I can't find stock of 5025984593?
You can fill out our help required form which you can use to request a quote for 5025984593 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
