5023860770 CLIK-Mate by Molex

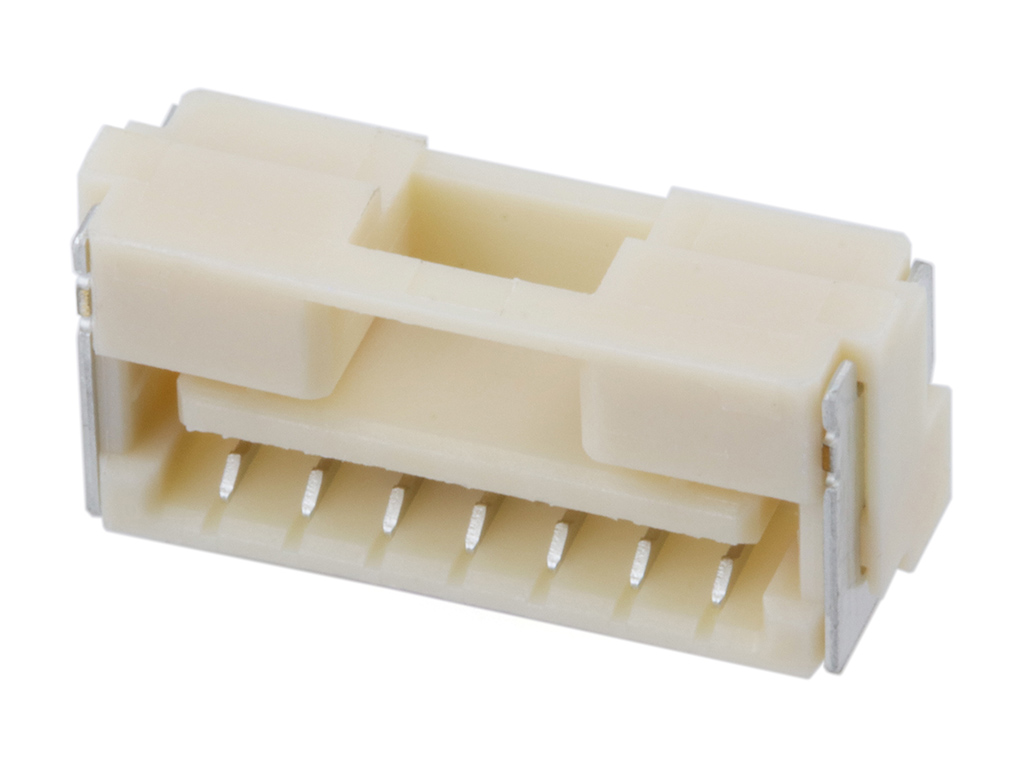

1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, Tin (Sn) Plating, 7 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502386-0770 |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.52
|
46,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.50
|
44,400
in stock
|
Buy Now |
|
Farnell
from US$0.50
|
42,120
in stock
|
Buy Now |
|
TME
from US$0.31
|
40,800
in stock
|
Buy Now |
|
element14
from US$0.56
|
1,462
in stock
|
Buy Now |
|
Avnet Abacus
-
|
7,200
in stock
|
Buy Now |
|
RS
from US$0.42
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.33
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.63
|
0
in stock
|
Buy Now |
|
Sager
from US$0.36
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.36
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 7 |
| Circuits Maximum | 7 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 5.55mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 332.401/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 7 Rastermaß: 1.25 mm 5023860770 1 St. Tape on Full reel | Conrad |
| 1.25Mm Pitch Clik-Mate Wire-To-Board Pcb Receptac |Molex 502386-0770 | Newark Electronics |
| PCB RECEPTACLES | Farnell |
| Contact | TME |
| WTB CONN, RCPT, 7POS, 1ROW, 1.25MM | element14 |
| Conn Wire to Board RCP 7 POS 1.25mm Solder RA SMD Embossed T/R | Avnet Abacus |
| Molex 502386-0770 Base Strip | RS |
| 1.25 W/B SGL R/A REC ASSY 7CKTEMBSTPPKG | RS Americas |
| Headers & Wire Housings 1.25MM CLIK-MATE REC 07P RA | Sager |
| 1.25 W/B SGL R/A REC ASSY 7CK EMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5023860770?
Additional datasheets, footprints and schematics for 5023860770 are listed on our Part Details page. You can also find images and similar parts to 5023860770 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5023860770 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5023860770 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5023860770 fall under?
The 5023860770 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5023860770 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5023860770 you can contact the distributor directly for product support, shipping queries etc.
Is the 5023860770 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5023860770 have stock available?
Authorised distributors including Conrad, Newark Electronics, Farnell, TME and element14 have stock available or on a lead time for 5023860770.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5023860770 often in real-time on the comparison pages.
What if I can't find stock of 5023860770?
You can fill out our help required form which you can use to request a quote for 5023860770 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
