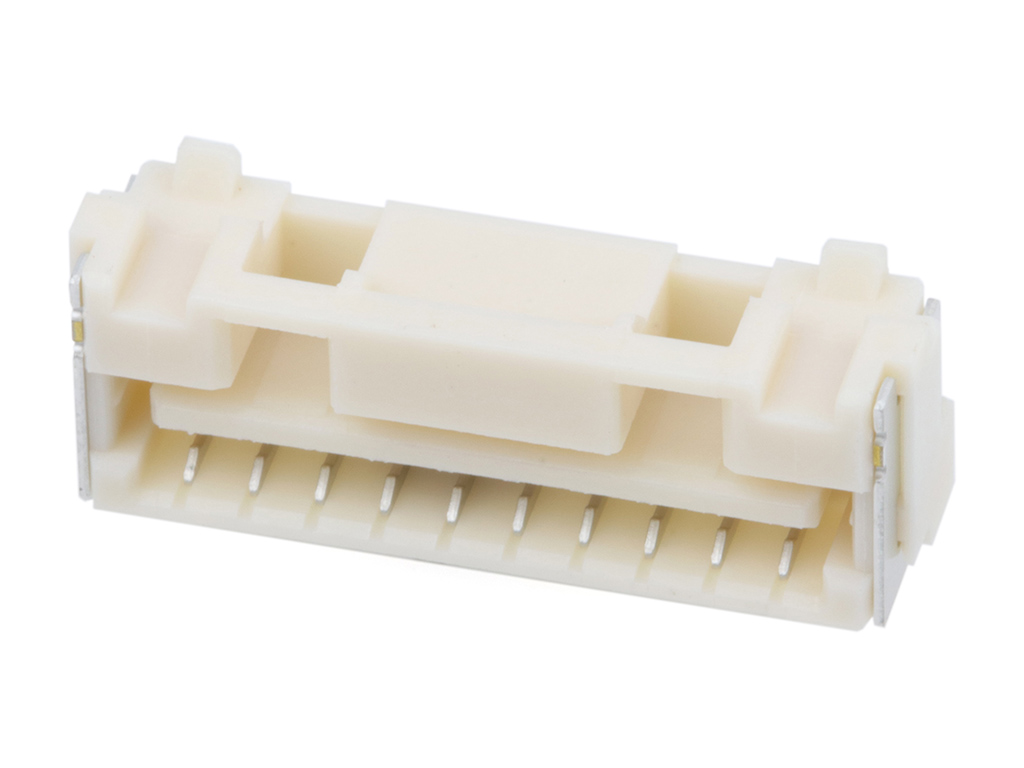

5023821070 CLIK-Mate by Molex
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502382-1070 |
Where to Buy
Prices starting from US$0.23
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.41
|
11,200
in stock
|
Buy Now |
|
Newark Electronics
from US$0.82
|
2,798
in stock
|
Buy Now |
|
Conrad
from US$0.73
|
1,398
in stock
|
Buy Now |
|
RS
from US$0.60
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.85
|
0
in stock
|
Buy Now |
|
element14
from US$0.51
|
0
in stock
|
Buy Now |
|
Sager
from US$0.48
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.23
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.57
|
0
in stock
|
Buy Now |
|
EME
from US$0.33
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 7.80mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 453.601/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PCB Receptacle, Signal, Wire-to-Board, 1.25 mm, 1 Rows, 10 Contacts, Surface Mount Straight | Avnet America |
| 1.25 W/B Sgl S/T Rec Assy 10Cktembstppkg |Molex/woodhead 502382-1070 | Newark Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 10 Rastermaß: 1.25 mm 5023821070 1 St. Tape on Full reel | Conrad |
| Molex 502382-1070 PCB Socket | RS |
| CLIK-MATE SERIES 1.25MM 10 WAY 1 ROW STRAIGHT PCB SOCKET SMNT WIRE TO BOARD | RS Americas |
| CONNECTOR, RCPT, 10POS, 1ROW, 1.25MM | element14 |
| Headers & Wire Housings 1.25 W/B Sgl S/T Rec Assy 10CktEmbsTpPkg | Sager |
| 1.25 W/B SGL S/T REC ASSY 10C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5023821070?
Additional datasheets, footprints and schematics for 5023821070 are listed on our Part Details page. You can also find images and similar parts to 5023821070 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5023821070 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5023821070 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5023821070 fall under?
The 5023821070 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5023821070 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5023821070 you can contact the distributor directly for product support, shipping queries etc.
Is the 5023821070 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5023821070 have stock available?
Authorised distributors including Avnet America, Newark Electronics, Conrad, RS and RS Americas have stock available or on a lead time for 5023821070.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5023821070 often in real-time on the comparison pages.
What if I can't find stock of 5023821070?
You can fill out our help required form which you can use to request a quote for 5023821070 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
