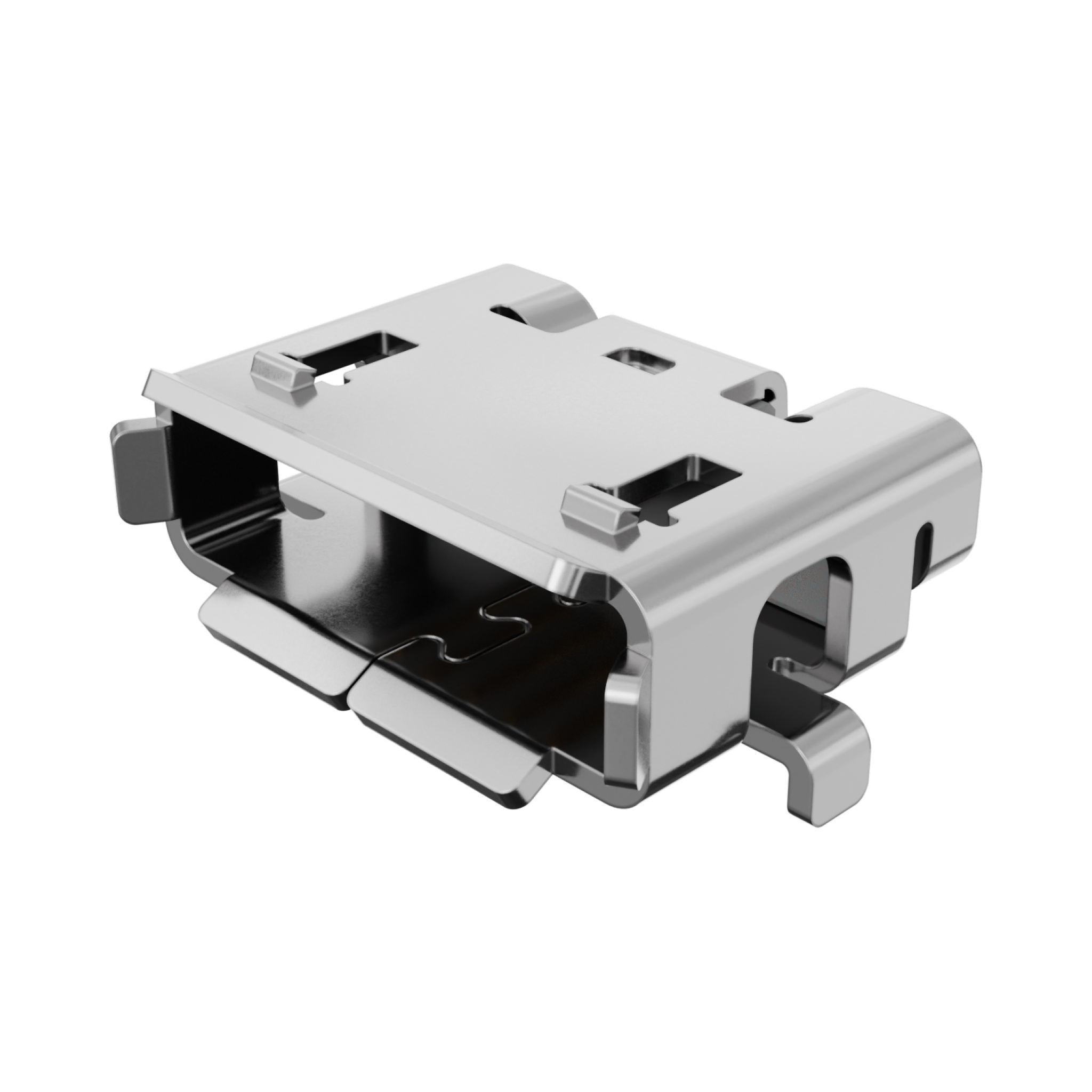

475891001 USB by Molex
Micro-USB AB Receptacle, Bottom-Mount, Surface Mount, Matte Tin Plated Shell, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
47589-1001,
0475891001 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.96
|
31,500
in stock
|
Buy Now |
|
Farnell
from US$0.66
|
28,500
in stock
|
Buy Now |
|
TTI Europe
from US$0.52
|
27,000
in stock
|
Buy Now |
|
element14
from US$0.60
|
3,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.52
|
950
in stock
|
Buy Now |
|
RS
from US$0.64
|
460
in stock
|
Buy Now |
|
Newark Electronics
from US$0.71
|
3
in stock
|
Buy Now |
|
Avnet America
from US$0.45
|
0
in stock
|
Buy Now |
|
TME
from US$0.57
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.82
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.38
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.58
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | USB |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.8A, 1.0A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V AC (RMS) |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Gray |
| Durability Mating Cycles Max | 10000 |
| Flammability | 94V-0 |
| Gender | Female |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Bottom-Mount |
| Net Weight | 0.263/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Panel Mount | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.65mm |
| Pitch Termination Interface | 0.65mm |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -30° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Micro USB Buchse Rechtwinklig 475891001 Molex Inhalt: 1 St. | Conrad |
| MICRO USB CONN, 2.0 TYPE AB, R/A RCPT | Farnell |
| MICRO USB AB RECEPTACLE | TTI Europe |
| MICRO USB CONN, 2.0 TYPE AB, RCPT, 5POS | element14 |
| MICRO USB AB REC RA SMT BOT | TTI Americas |
| Molex 47589-1001 USB Connector | RS |
| Micro Usb Conn, 2.0 Type Ab, Rcpt, 5Pos | Newark Electronics |
| Connector: USB AB micro | TME |
| UUSB AB REC BOTMT FLANGE TH GRAY 0.60 | RS Americas |
| UUSB AB REC BOTMT FLANGE AY 0.60 | Heilind Americas |
| UUSB AB REC BOTMT FLANGE TH GR | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 475891001?
Additional datasheets, footprints and schematics for 475891001 are listed on our Part Details page. You can also find images and similar parts to 475891001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 475891001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 475891001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 475891001 fall under?
The 475891001 is listed under I/O Connectors.
Can I view similar or alternative parts?
You can view similar parts to 475891001 when available in the I/O Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 475891001 you can contact the distributor directly for product support, shipping queries etc.
Is the 475891001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 475891001 have stock available?
Authorised distributors including Conrad, Farnell, TTI Europe, element14 and TTI Americas have stock available or on a lead time for 475891001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 475891001 often in real-time on the comparison pages.
What if I can't find stock of 475891001?
You can fill out our help required form which you can use to request a quote for 475891001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
