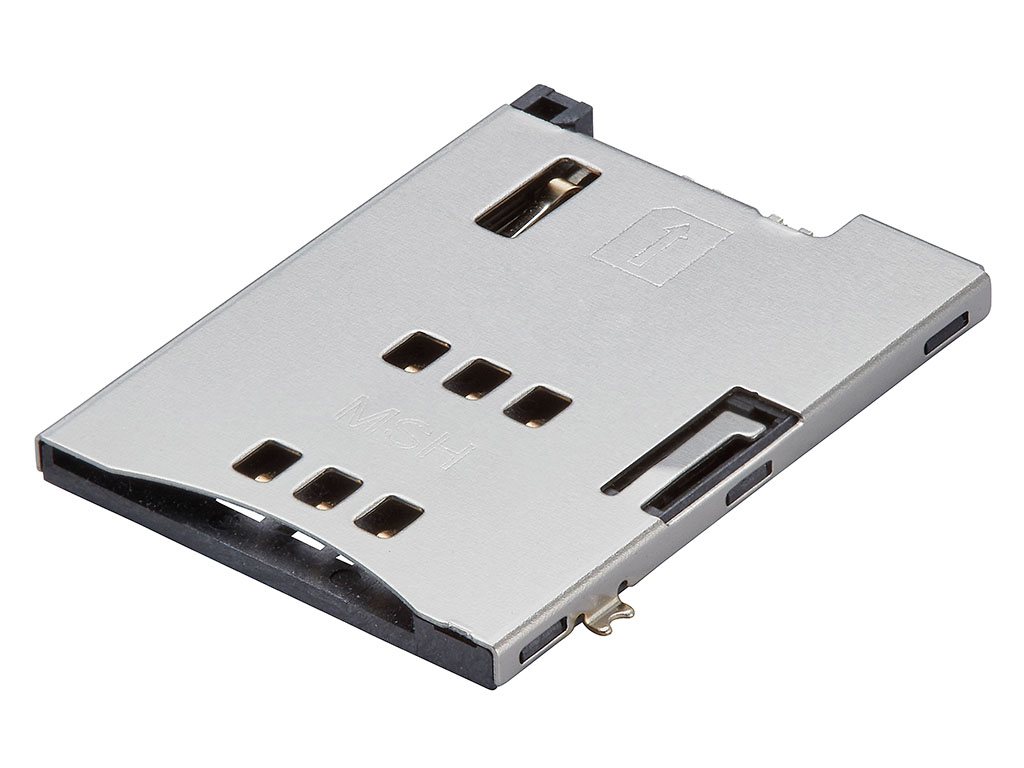

475531001 mini-SIM by Molex
1.27mm Pitch SIM Card Holder with 2 Detect Pins, 6 Circuits, Push-Push Style, Housing Height 1.80mm, with Pegs, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
47553-1001,
0475531001 |
Where to Buy
Prices starting from US$0.77
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.50
|
33,600
in stock
|
Buy Now |
|
Farnell
from US$2.31
|
5,400
in stock
|
Buy Now |
|
TME
from US$1.42
|
2,565
in stock
|
Buy Now |
|
Newark Electronics
from US$2.37
|
2,101
in stock
|
Buy Now |
|
element14
from US$2.43
|
2,101
in stock
|
Buy Now |
|
RS
from US$3.43
|
1,077
in stock
|
Buy Now |
|
|
RS Americas
from US$0.77
|
10
in stock
|
Buy Now |
|
Avnet Abacus
-
|
31,200
in stock
|
Buy Now |
|
Avnet America
from US$1.64
|
0
in stock
|
Buy Now |
|
Compona
from US$1.02
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.60
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.99
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.78
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | mini-SIM |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Shielded | Yes |
| Voltage Maximum | 50V DC |
Physical |
|
|---|---|
| Card Detection Switch | Open |
| Card Entry Location | Front |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Durability Mating Cycles Max | 5000 |
| Ejector Button Side | N/A |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Material Shell | Stainless Steel |
| Net Weight | 2.692/g |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 1.27mm |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.27MM SIM CARD HOLDER 6CIRCUI | TTI Europe |
| CONN, MINI SIM, 6POS, PUSH-PUSH | Farnell |
| Connector: for cards | TME |
| Connector, Mini Sim, 6Pos | Newark Electronics |
| CONNECTOR, MINI SIM, 6POS | element14 |
| 1.27mm Pitch SIM Card Holder Push-Push | RS |
| ASSY FOR PUSH PUSH 6 PIN SIM CONN | RS Americas |
| Conn Mini-SIM Card Receptacle 6 POS 2.54mm Solder RA SMD Emboss T/R | Avnet Abacus |
| MOLEX 47553-1001 Plug SIM 6p SMT | Compona |
| 1.27MM SIM 06P SMT PUSH/PUSH | TTI Americas |
| ASSY FOR PUSH PUSH 6 PIN ONN. | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 475531001?
Additional datasheets, footprints and schematics for 475531001 are listed on our Part Details page. You can also find images and similar parts to 475531001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 475531001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 475531001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 475531001 fall under?
The 475531001 is listed under Memory / SIM Card Connectors.
Can I view similar or alternative parts?
You can view similar parts to 475531001 when available in the Memory / SIM Card Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 475531001 you can contact the distributor directly for product support, shipping queries etc.
Is the 475531001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 475531001 have stock available?
Authorised distributors including TTI Europe, Farnell, TME, Newark Electronics and element14 have stock available or on a lead time for 475531001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 475531001 often in real-time on the comparison pages.
What if I can't find stock of 475531001?
You can fill out our help required form which you can use to request a quote for 475531001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
