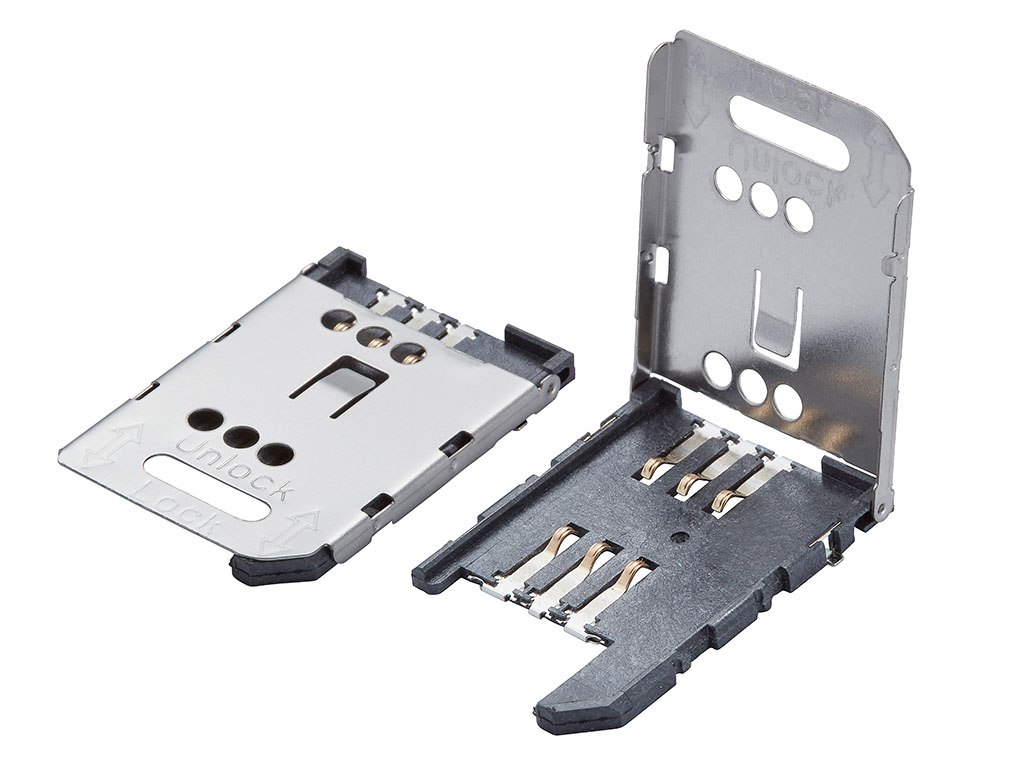

473882001 mini-SIM by Molex
2.54mm Pitch SIM Card Connector, Hinged Style, 6 Circuits, Surface Mount, with PCB Retention Solder Tabs, with Cover Shell, Housing Height 1.90mm, with 4 Dimples, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
47388-2001,
0473882001 |
Where to Buy
Prices starting from US$0.62
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.63
|
23,083
in stock
|
Buy Now |
|
Farnell
from US$1.53
|
21,000
in stock
|
Buy Now |
|
element14
from US$1.90
|
724
in stock
|
Buy Now |
|
RS
from US$2.02
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.79
|
0
in stock
|
Buy Now |
|
TME
from US$1.91
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.78
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.45
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.62
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | mini-SIM |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Shielded | Yes |
| Voltage Maximum | 5V |
Physical |
|
|---|---|
| Card Detection Switch | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 5000 |
| Ejector Button Side | N/A |
| Material Contact | Copper Alloy |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Material Shell | Stainless Steel |
| Net Weight | 1.082/g |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex SIM-Karten-Slot Polzahl Gesamt 6 Rastermaß: 2.54 mm 473882001 1 St. Tape on Full reel | Conrad |
| CONN, MINI SIM, 6POS, HINGED | Farnell |
| CONNECTOR, MINI SIM, 6POS | element14 |
| ASSY 1.90 SIM CARD READER CONN. | RS |
| Memory Card Connector, Mini SIM, Hinged, 6 Contacts, Phosphor Bronze, Gold Plated Contacts, 47388 | Avnet America |
| Connector: for cards | TME |
| 2.54MM SIM 06P SMT HINGED | TTI Americas |
| 2.54MM SIM CARD CONNECTOR 6CIR | TTI Europe |
| ASSY 1.90 SIM CARD READER CON . | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 473882001?
Additional datasheets, footprints and schematics for 473882001 are listed on our Part Details page. You can also find images and similar parts to 473882001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 473882001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 473882001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 473882001 fall under?
The 473882001 is listed under Memory / SIM Card Connectors.
Can I view similar or alternative parts?
You can view similar parts to 473882001 when available in the Memory / SIM Card Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 473882001 you can contact the distributor directly for product support, shipping queries etc.
Is the 473882001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 473882001 have stock available?
Authorised distributors including Conrad, Farnell, element14, RS and Avnet America have stock available or on a lead time for 473882001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 473882001 often in real-time on the comparison pages.
What if I can't find stock of 473882001?
You can fill out our help required form which you can use to request a quote for 473882001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
