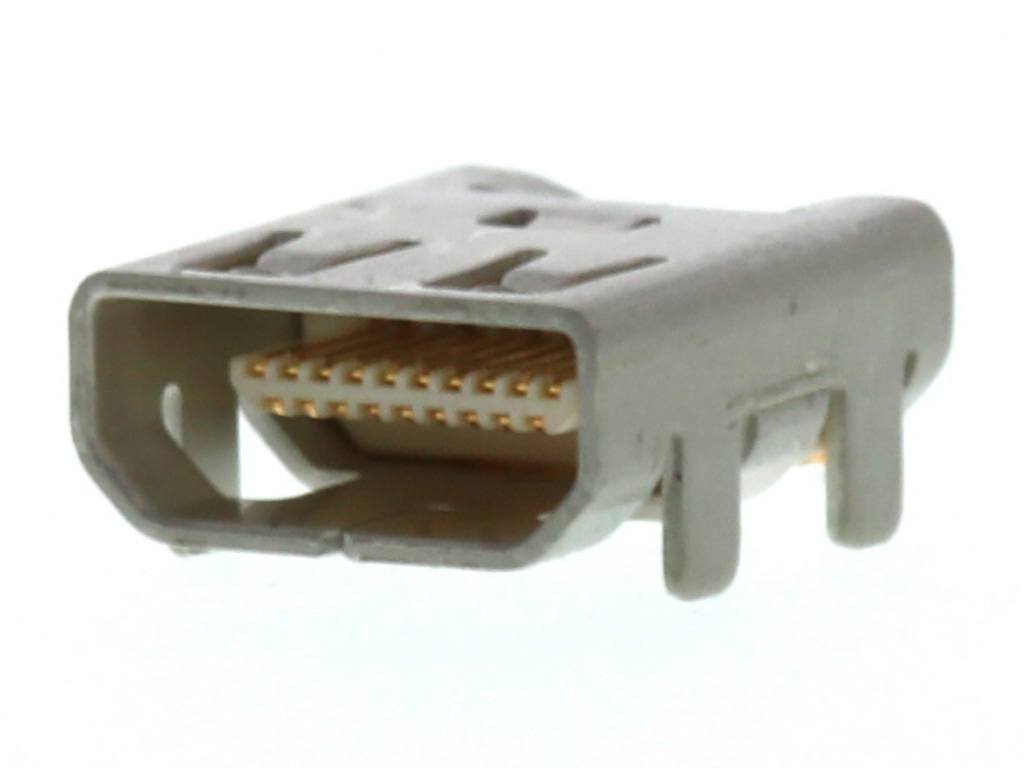

467651001 Micro HDMI by Molex
0.40mm Pitch Micro HDMI Connector, Right-Angle Receptacle, Surface Mount, with Through Hole Shell Tabs and Pick-and-Place Polyimide Tape, 19 Circuits, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46765-1001,
0467651001 |
Where to Buy
Prices starting from US$1.05
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.95
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.05
|
4,389
in stock
|
Buy Now |
|
Farnell
from US$2.17
|
640
in stock
|
Buy Now |
|
element14
from US$1.95
|
440
in stock
|
Buy Now |
|
RS
from US$2.80
|
120
in stock
|
Buy Now |
|
Avnet America
from US$1.93
|
0
in stock
|
Buy Now |
|
TME
from US$1.89
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.30
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.71
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.51
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.74
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro HDMI |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.8A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Boot Color | N/A |
| Circuits Loaded | 19 |
| Circuits Maximum | 19 |
| Flammability | 94V-0 |
| Gender | Female |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Top-Mount |
| Net Weight | 0.309/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 0.051µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO HDMI REC 19P RA SMT | TTI Americas |
| Hdmi Connector, Rcpt, 19Pos, Smt | Newark Electronics |
| HDMI CONNECTOR, RCPT, 19POS, SMT | Farnell |
| Molex 46765-1001 HDMI Connector | RS |
| Conn HDMI Receptacle 19 POS 0.4mm Solder RA Surface Mount 1 Port Emboss T/R | Avnet America |
| Connector: wire-board | TME |
| Molex 467651001 HDMI-Steckverbinder Buchse Polzahl: 19 1 St. Tape on Full reel | Conrad |
| 0.40MM PITCH MICRO HDMI CON | TTI Europe |
| 0.4MM MICRO HDMI REC T&R 0.76 ULF 19CKT | Heilind Europe |
