447640601 Micro-Fit BMI by Molex

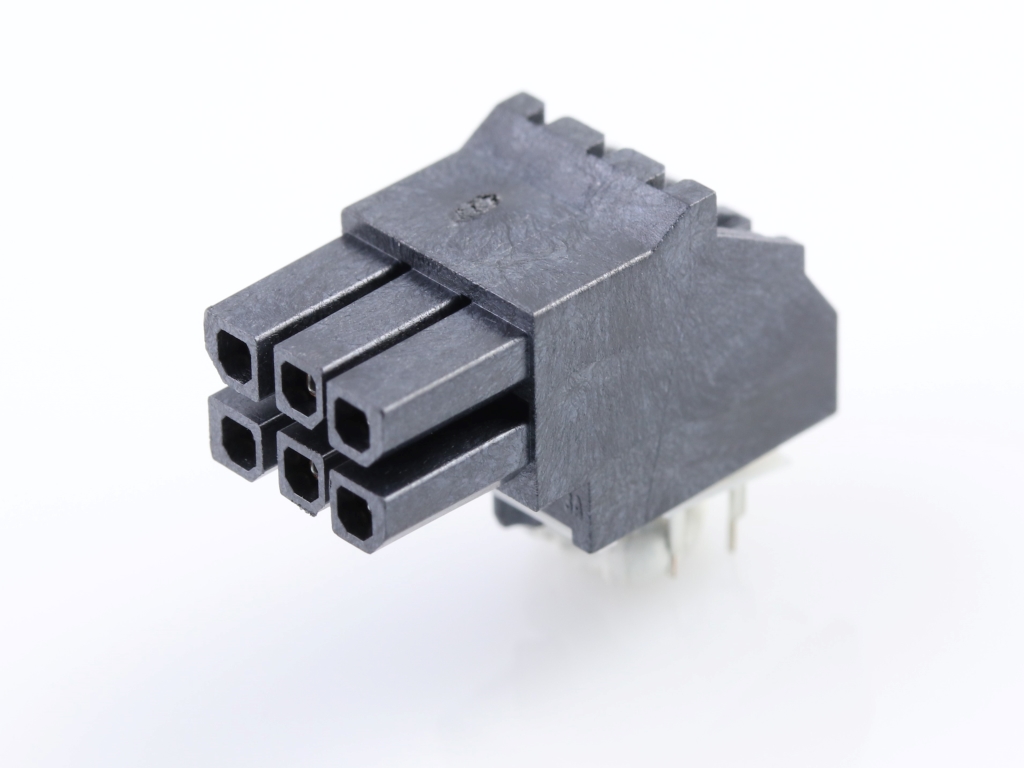

Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 1.02µm Tin (Sn) Plating, Mylar Positioning Strip, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44764-0601,
0447640601 |
Where to Buy
Prices starting from US$0.99
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$2.26
|
572
in stock
|
Buy Now |
|
Farnell
from US$2.67
|
572
in stock
|
Buy Now |
|
Newark Electronics
from US$0.99
|
130
in stock
|
Buy Now |
|
Heilind Americas
from US$1.76
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.13
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$2.02
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.850/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.70mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.020µm |
| Plating Min Termination | 1.020µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, RCPT, 6POS, 2ROW, 3MM | element14 |
| Connector, Rcpt, 6Pos, 2Row, 3Mm | Newark Electronics |
| MICRO-FIT (3.0) BMI RA HDR/FE TIN 6CKT | Heilind Americas |
| MICRO-FIT 3.0 BMI HDR 2X3P RA | TTI Asia |
