447640401 Micro-Fit BMI by Molex

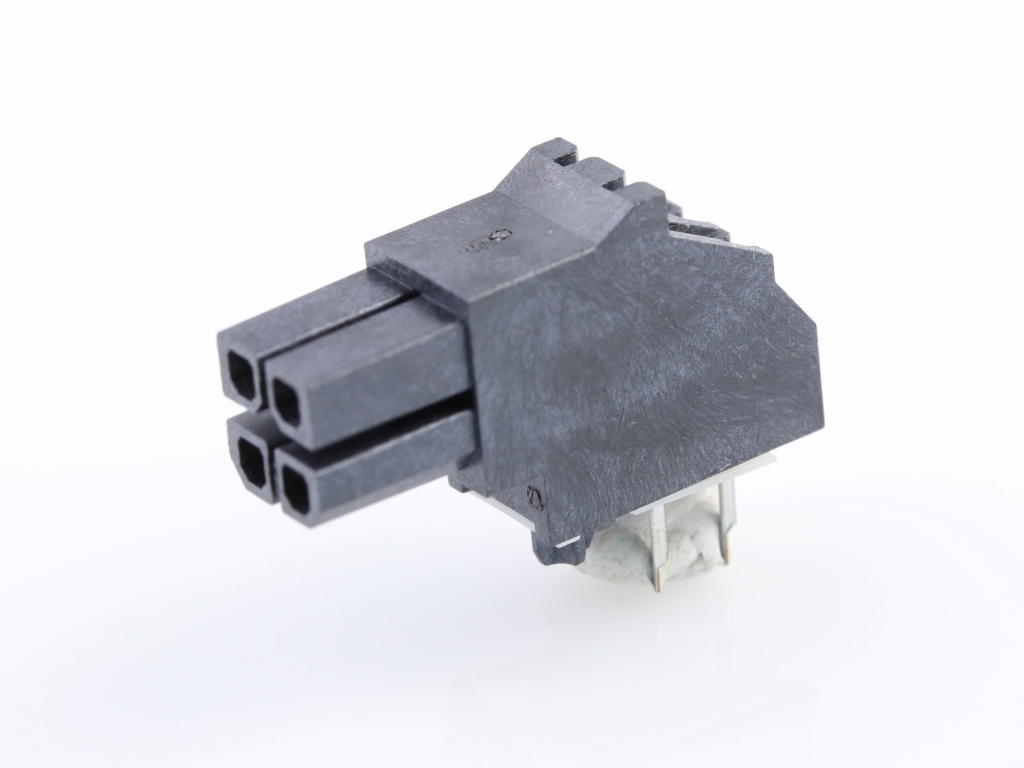

Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 1.02µm Tin (Sn) Plating, Mylar Positioning Strip, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44764-0401,
0447640401 |
Where to Buy
Prices starting from US$0.35
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.31
|
1,335
in stock
|
Buy Now |
|
Conrad
from US$2.43
|
1,335
in stock
|
Buy Now |
|
Farnell
from US$2.46
|
1,202
in stock
|
Buy Now |
|
element14
from US$1.91
|
356
in stock
|
Buy Now |
|
Newark Electronics
from US$0.35
|
7
in stock
|
Buy Now |
|
RS
from US$1.91
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.67
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.41
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.40
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.98
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.305/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.70mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.020µm |
| Plating Min Termination | 1.020µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 4 447640401 1 St. Tray | Conrad |
| PCB RECEPTACLES | Farnell |
| WTB CONN, RCPT, 4POS, 2ROW, 3MM | element14 |
| Wtb Conn, Rcpt, 4Pos, 2Row, 3Mm | Newark Electronics |
| Molex 44764-0401 PCB Header | RS |
| Conn Wire to Board RCP 4 POS 3mm Solder RA Thru-Hole Tray | Avnet America |
| MICRO-FIT (3.0) BMI RA HDR/FEM TIN 4CKT | RS Americas |
| MICRO-FIT (3.0) BMI RA HD | TTI Europe |
| MICRO-FIT (3.0) BMI RA HDR/FE TIN 4CKT | Heilind Americas |
