399700102 Eurostyle Fixed Mount by Molex

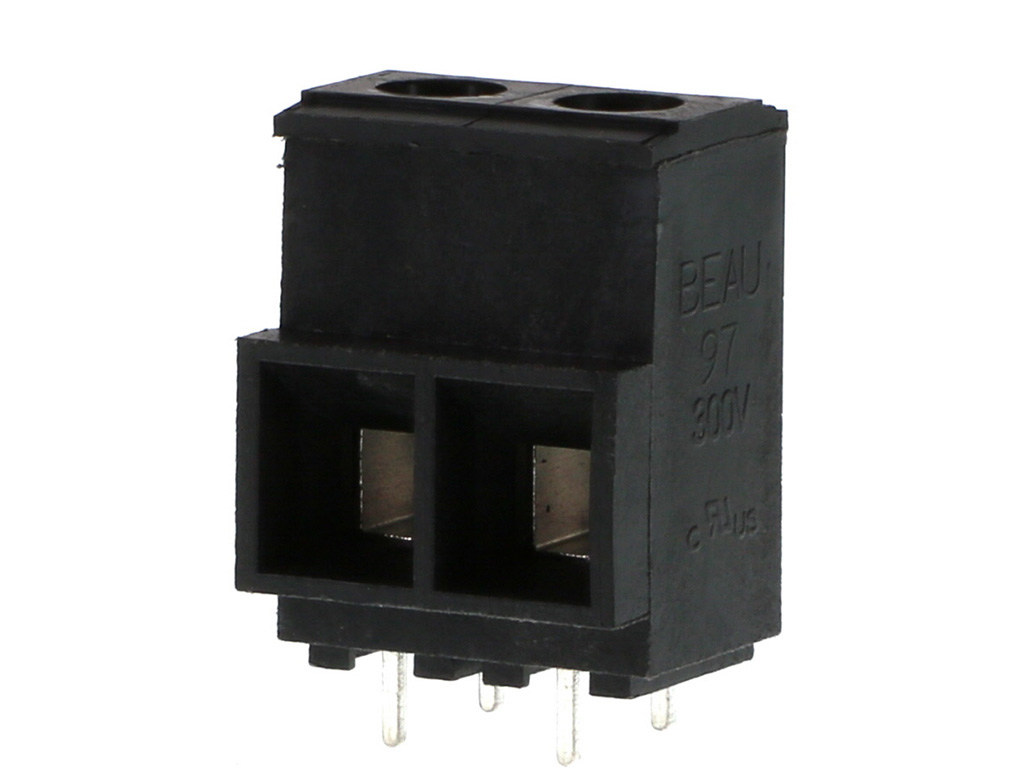

10.16mm Beau Eurostyle Fixed Mount PCB Terminal Block, High Power 60A, 2 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: |
39970-0102,
0399700102, 970502 |
Where to Buy
Prices starting from US$5.95
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$6.41
|
360
in stock
|
Buy Now |
|
TME
from US$7.79
|
360
in stock
|
Buy Now |
|
Conrad
from US$9.01
|
360
in stock
|
Buy Now |
|
Farnell
from US$8.15
|
324
in stock
|
Buy Now |
|
RS
from US$9.73
|
0
in stock
|
Buy Now |
|
Avnet America
from US$5.95
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$9.19
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 60.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Material Metal | Brass, Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pc Tail Length | 4.06mm |
| Pitch Mating Interface | 10.16mm |
| Pitch Termination Interface | 10.16mm |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | N/A |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | 130°C |
| Termination Interface Style | Through Hole |
| Wire Size Awg | 10, 12, 14, 16, 18, 6, 8 |
| Wire Size Mm | 0.75-10.00 |
