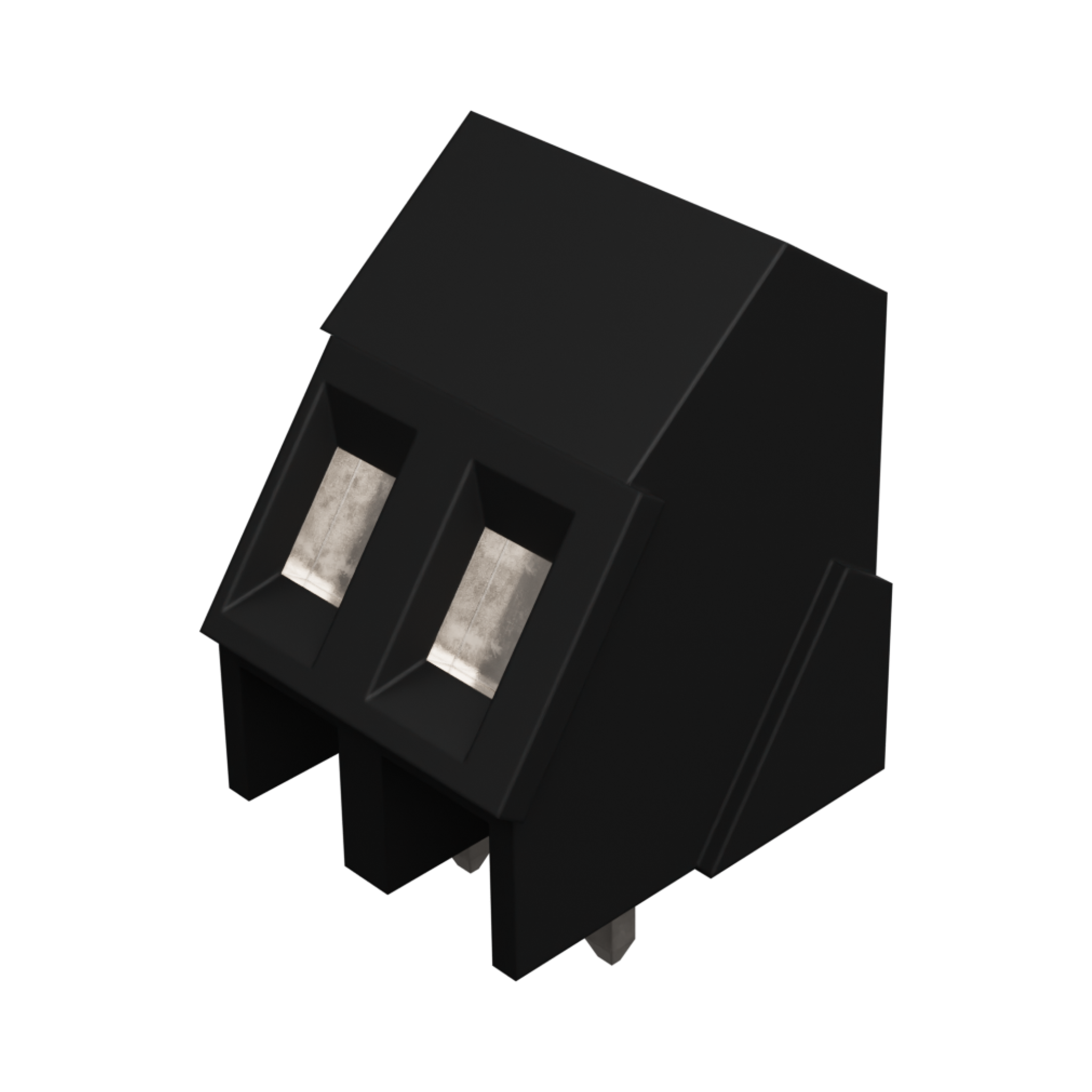

398900402 Eurostyle Fixed Mount by Molex
5.00mm Pitch Beau Eurostyle Low Profile, 35° Wire Entry, Single Level Modular Terminal Block, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39890-0402,
0398900402, MX-MSM02041-0N |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 17.5A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | 35° Angle |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Net Weight | 2.920/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 2.60mm |
| Pc Tail Length | 3.81mm |
| Pitch Mating Interface | 5.00mm |
| Pitch Termination Interface | 5.00mm |
| Polarized To Mating Part | No |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | 105°C |
| Wire Size Awg | 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 |
| Wire Size Mm | 0.05-2.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 35 DEGREE 5.00MM 2 ASY 01J8008 | Farnell |
| 35 DEGREE 5.00MM 2 ASY | Heilind Europe |
| Conn Eurostyle Block 2 POS 5mm Solder Thru-Hole 17.5A/Contact | Avnet Abacus |
