398800504 Eurostyle Multi-Level by Molex

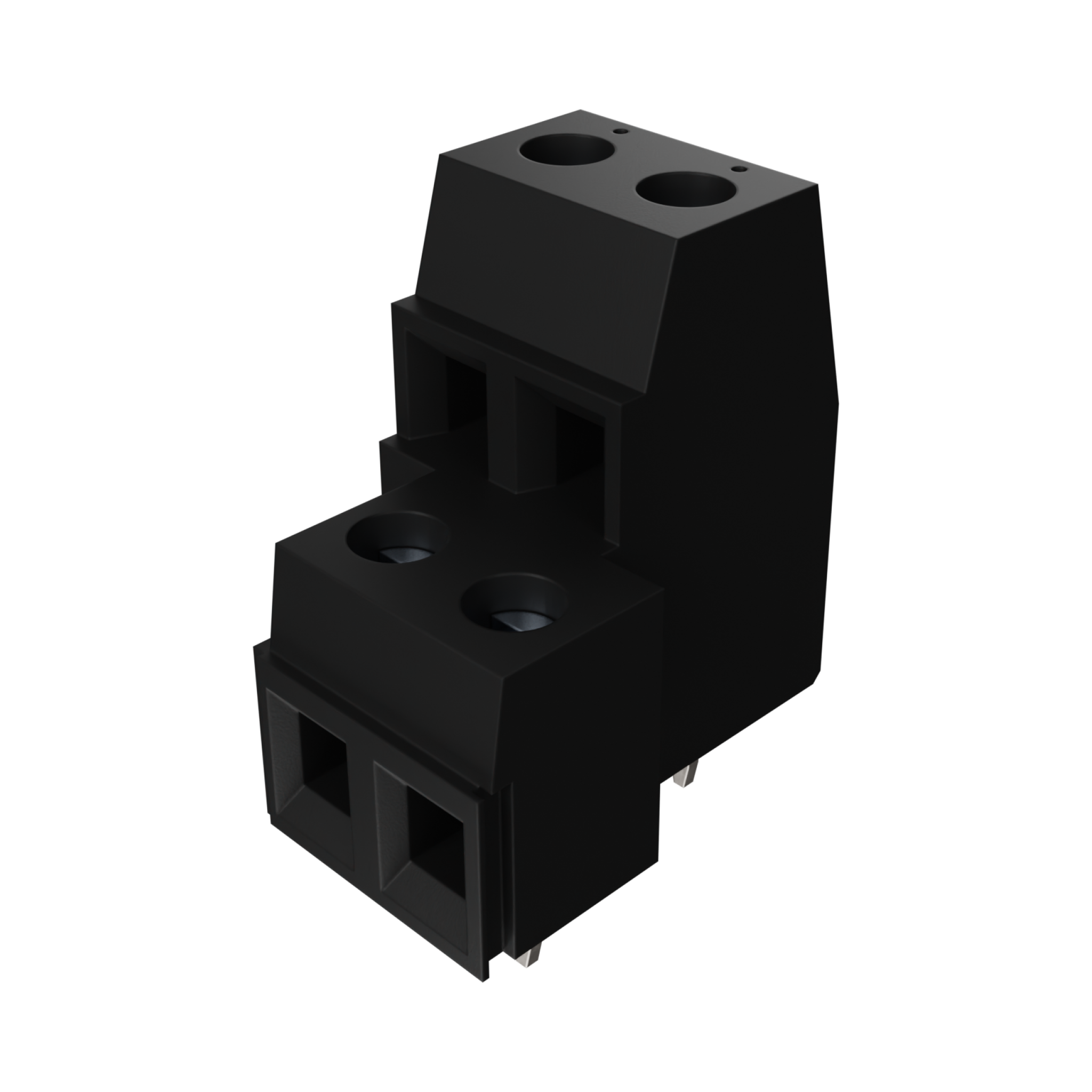

5.08mm Pitch Beau Eurostyle Low Profile, Two Level Terminal Block, Modular, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39880-0504,
0398800504, MX-PSB020D5-0N |
Where to Buy
Prices starting from US$1.00
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.49
|
9
in stock
|
Buy Now |
|
Newark Electronics
from US$1.38
|
6
in stock
|
Buy Now |
|
element14
from US$1.22
|
6
in stock
|
Buy Now |
|
Avnet America
from US$1.07
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.54
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.27
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Multi-Level |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Net Weight | 4.082/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 2.40mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Polarized To Mating Part | N/A |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | 110°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 26, 28, 30 |
| Wire Size Mm | 0.20-1.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| LOW PROFILE 2 LEVEL 5.08 4 ASY | Farnell |
| Low Profile 2 Level 5.08 4 Asy Rohs Compliant: Yes |Molex 39880-0504 | Newark Electronics |
| LOW PROFILE 2 LEVEL 5.08 4 ASY 01H8389 | element14 |
