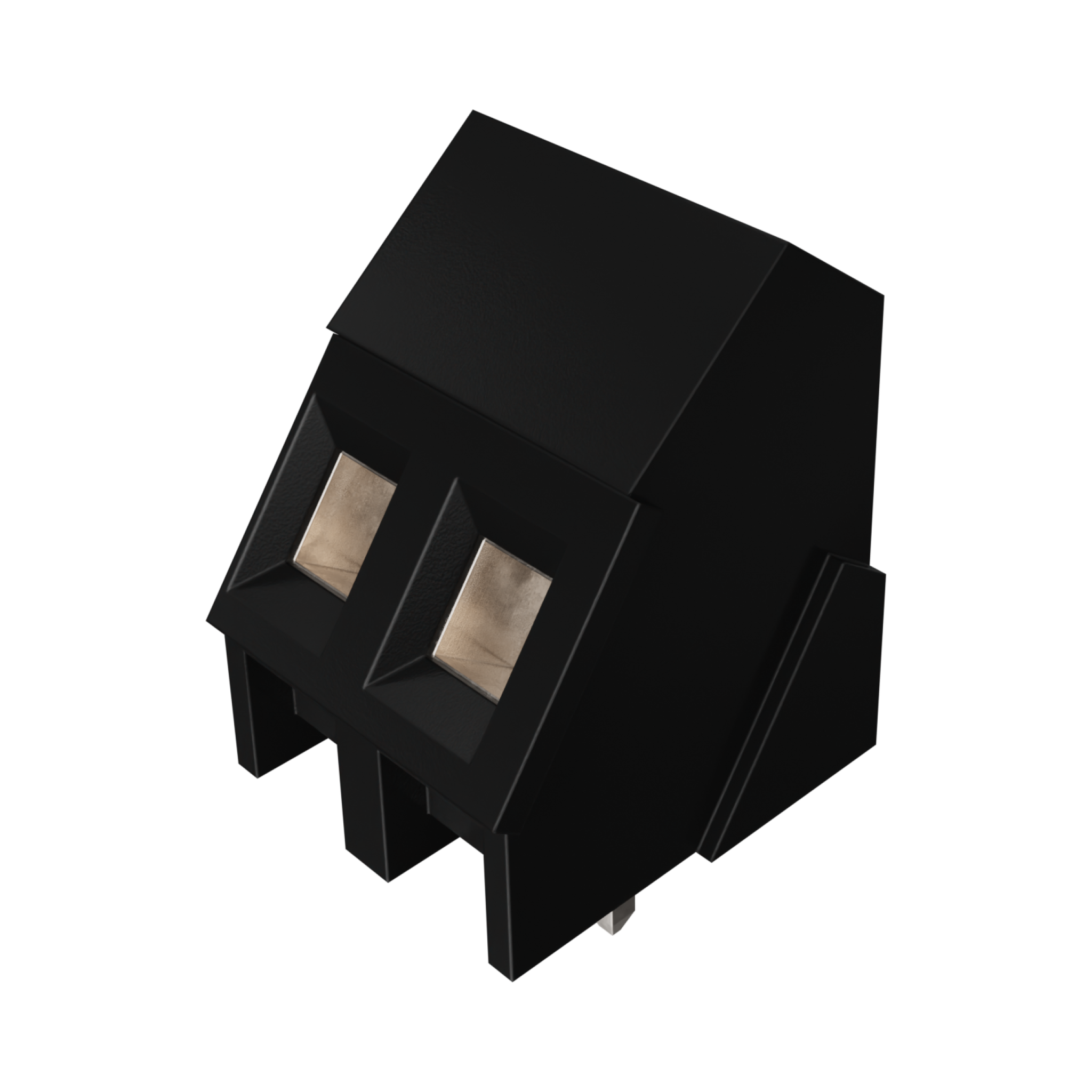

398800402 Eurostyle Fixed Mount by Molex
5.08mm Pitch Beau Eurostyle Low Profile, Fixed Block, 35° Wire Entry, Modular, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39880-0402,
0398800402, MX-MSM02045-0N |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.80
|
2,786
in stock
|
Buy Now |
|
Farnell
from US$0.81
|
2,508
in stock
|
Buy Now |
|
TTI Americas
from US$0.86
|
2,330
in stock
|
Buy Now |
|
Newark Electronics
from US$0.49
|
2,111
in stock
|
Buy Now |
|
TME
from US$0.81
|
2,111
in stock
|
Buy Now |
|
RS
from US$0.93
|
200
in stock
|
Buy Now |
|
Avnet Abacus
-
|
1,800
in stock
|
Buy Now |
|
Avnet America
from US$0.50
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.57
|
0
in stock
|
Buy Now |
|
element14
from US$0.77
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.44
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.58
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 17.5A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | 35° Angle |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Net Weight | 3.120/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 2.60mm |
| Pc Tail Length | 3.80mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Polarized To Mating Part | N/A |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | 105°C |
| Wire Size Awg | 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 |
| Wire Size Mm | 0.05-2.50 |
