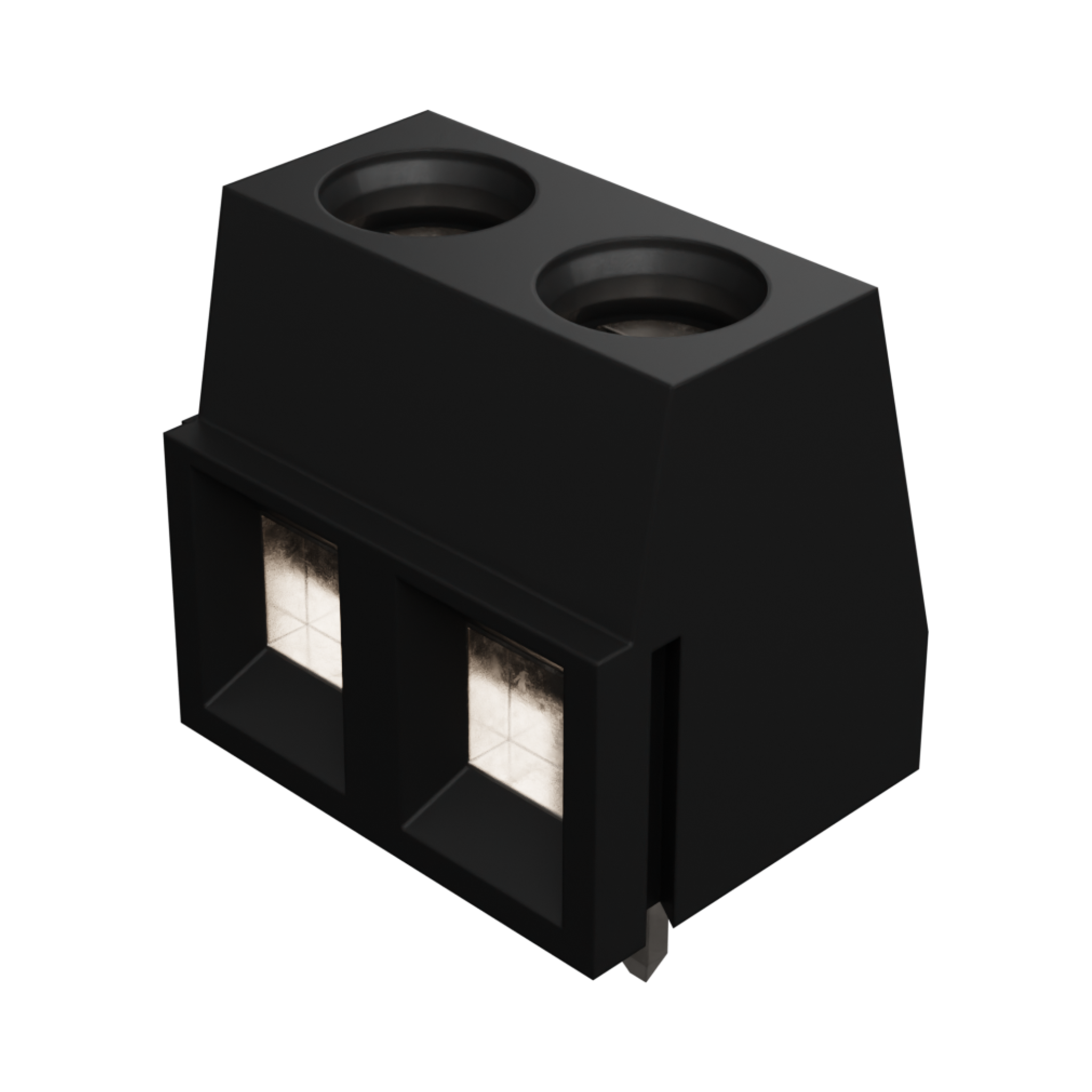

398800302 Eurostyle Fixed Mount by Molex
5.08mm Pitch, Beau Eurostyle Low Profile, Fixed Block, Modular, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39880-0302,
0398800302, MX-MSB02005-0N |
Where to Buy
Prices starting from US$0.24
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.38
|
4,360
in stock
|
Buy Now |
|
Newark Electronics
from US$0.54
|
2,184
in stock
|
Buy Now |
|
TME
from US$0.79
|
2,184
in stock
|
Buy Now |
|
Conrad
from US$0.96
|
2,184
in stock
|
Buy Now |
|
Farnell
from US$0.76
|
1,966
in stock
|
Buy Now |
|
Avnet America
from US$0.24
|
737
in stock
|
Buy Now |
|
TTI Americas
from US$0.44
|
260
in stock
|
Buy Now |
|
RS
from US$0.95
|
94
in stock
|
Buy Now |
|
element14
from US$0.79
|
24
in stock
|
Buy Now |
|
Avnet Abacus
-
|
3,200
in stock
|
Buy Now |
|
|
RS Americas
from US$1.15
|
0
in stock
|
Buy Now |
|
Sager
from US$0.42
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.61
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.39
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.5A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Net Weight | 1.750/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 2.40mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Polarized To Mating Part | N/A |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | 105°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 26, 28, 30 |
| Wire Size Mm | 0.20-1.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| LOW PROFILE 5.08 2 ASY | Heilind Americas |
| Tb, Wire To Brd, 2Pos, 16Awg | Newark Electronics |
| Connector: PCB terminal block | TME |
| Molex 398800302 Printklemme 1 St. | Conrad |
| TERMINAL BLOCK, WIRE TO BRD, 2POS, 30AWG | Farnell |
| Wire-To-Board Terminal Block, 5.08 mm, 2 Ways, 30 AWG, 12 AWG, 1.5 mm?, Screw | Avnet America |
| 5.08MM EURO 02P VT FIXED LOPRO | TTI Americas |
| Molex 398800302 | RS |
| HEADER, 2WAY | element14 |
| Conn PC Board Terminal Block RCP 2 POS 5.08mm RA Through Hole 13.5A | Avnet Abacus |
| Fixed Terminal Blocks 5.08MM EURO 02P VT FIXED LOPRO | Sager |
