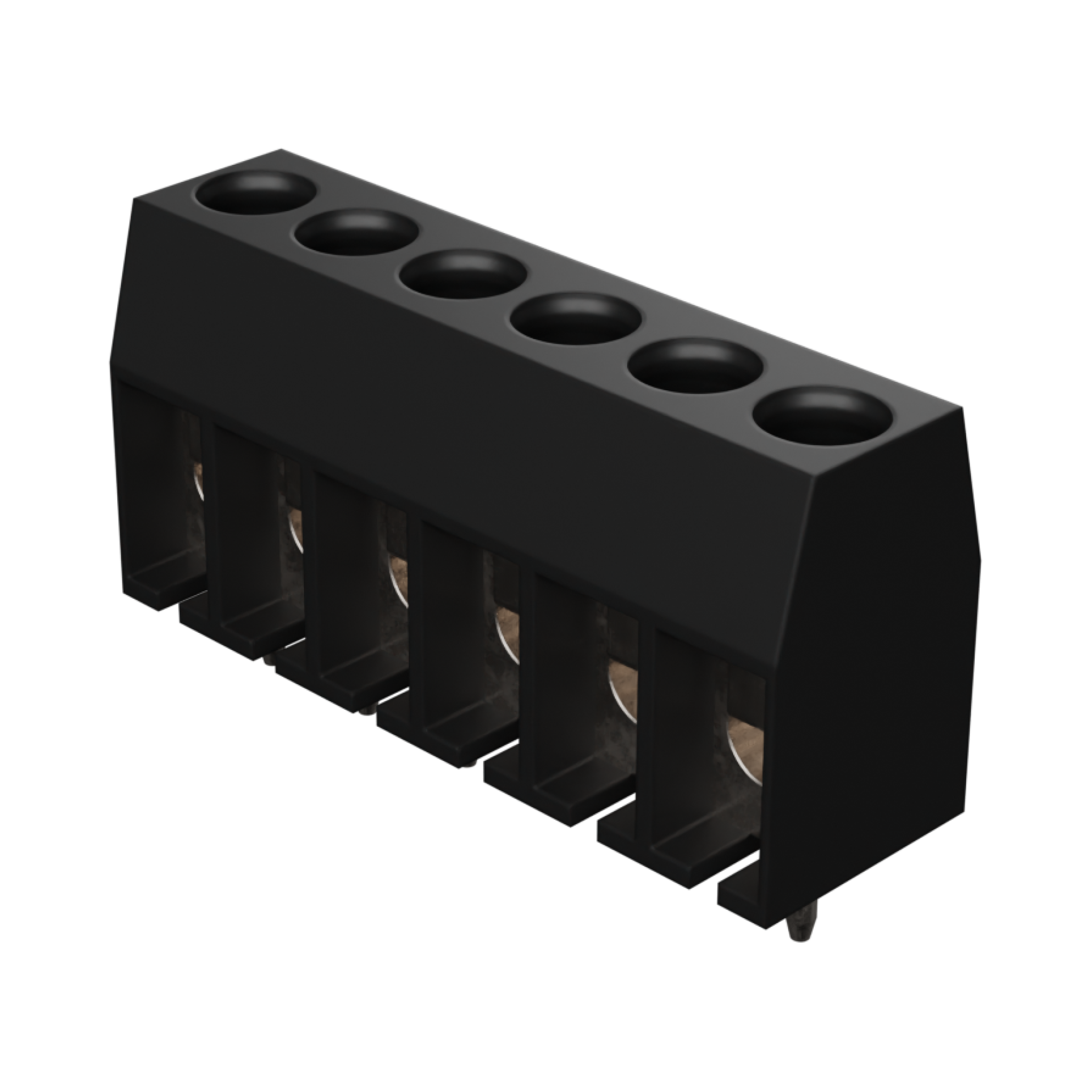

395430006 Eurostyle Fixed Mount by Molex
5.00mm Pitch Eurostyle Vertical Fixed Mount PCB Terminal Block, with Screw Pressure Clamp, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39543-0006,
0395430006 |
Where to Buy
Prices starting from US$0.83
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.01
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.05
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.58
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.83
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.97
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.10
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Thickness Recommended | 2.50mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.00mm |
| Pitch Termination Interface | 5.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | 14, 16, 18, 20, 22, 24 |
| Wire Size Mm | 0.20-2.08 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Tb, Wire To Brd, 6Pos, 14Awg | Newark Electronics |
| 5.0MM EUROBLOCK PC VERT BLK 6CKT | RS Americas |
| Molex 395430006 Printklemme Polzahl 6 1 St. | Conrad |
| 5MM EURO 06P FIXED VT | TTI Americas |
| 5.0MM EUROBLOCK PC VERT BLK 6 KT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 395430006?
Additional datasheets, footprints and schematics for 395430006 are listed on our Part Details page. You can also find images and similar parts to 395430006 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 395430006 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 395430006 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 395430006 fall under?
The 395430006 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 395430006 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 395430006 you can contact the distributor directly for product support, shipping queries etc.
Is the 395430006 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 395430006 have stock available?
Authorised distributors including Newark Electronics, RS Americas, Conrad, TTI Americas and Heilind Americas have stock available or on a lead time for 395430006.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 395430006 often in real-time on the comparison pages.
What if I can't find stock of 395430006?
You can fill out our help required form which you can use to request a quote for 395430006 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
