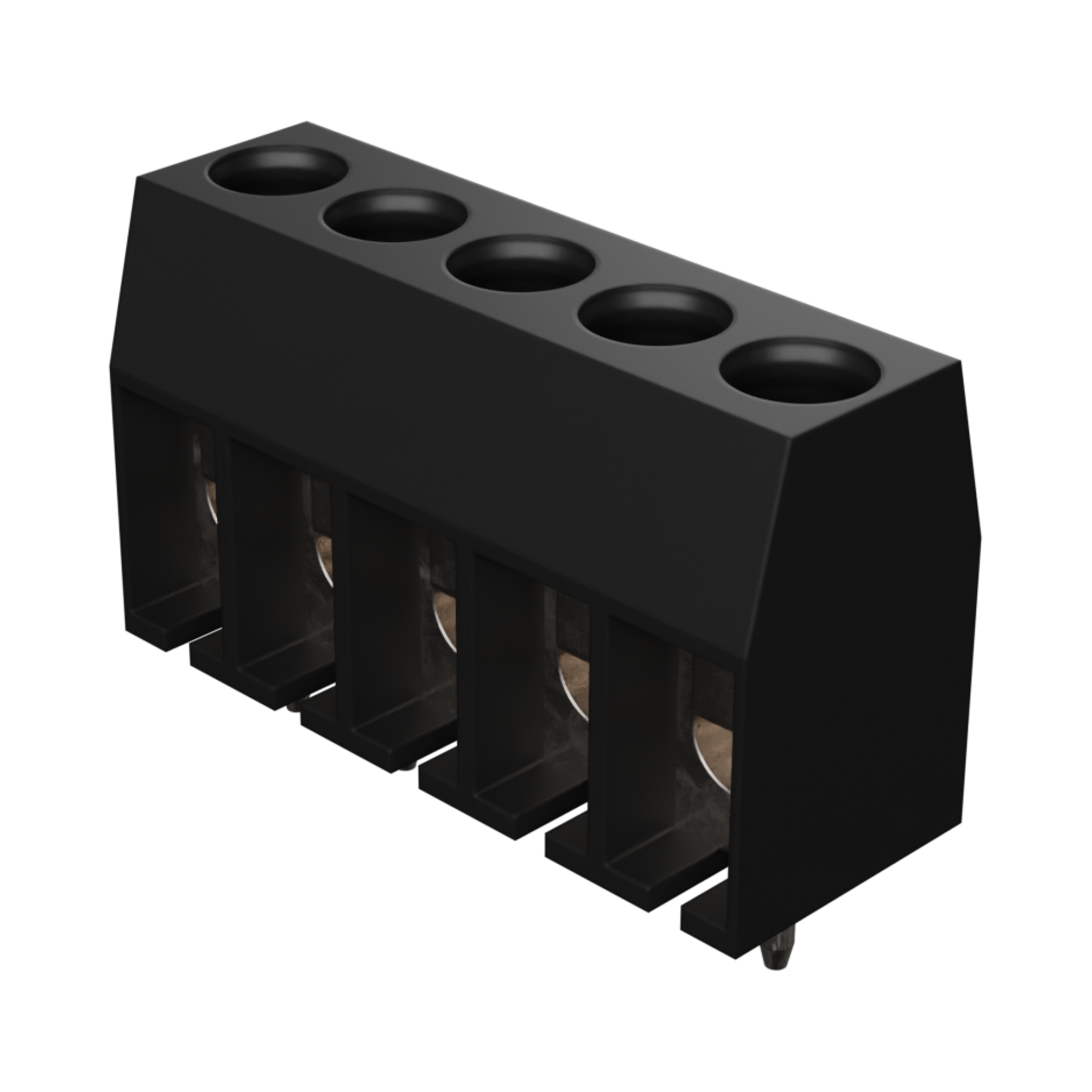

395430005 Eurostyle Fixed Mount by Molex
5.00mm Pitch Eurostyle Vertical Fixed Mount PCB Terminal Block, with Screw Pressure Clamp, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39543-0005,
0395430005 |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Thickness Recommended | 2.50mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.00mm |
| Pitch Termination Interface | 5.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | 14, 16, 18, 20, 22, 24 |
| Wire Size Mm | 0.20-2.08 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Tb, Wire To Brd, 5Pos, 14Awg | Newark Electronics |
| 5.0MM EUROBLOCK PC VERT BLK 5CKT | RS Americas |
| 5.0MM EUROBLOCK PC VERT BLK 5 KT | Heilind Americas |
