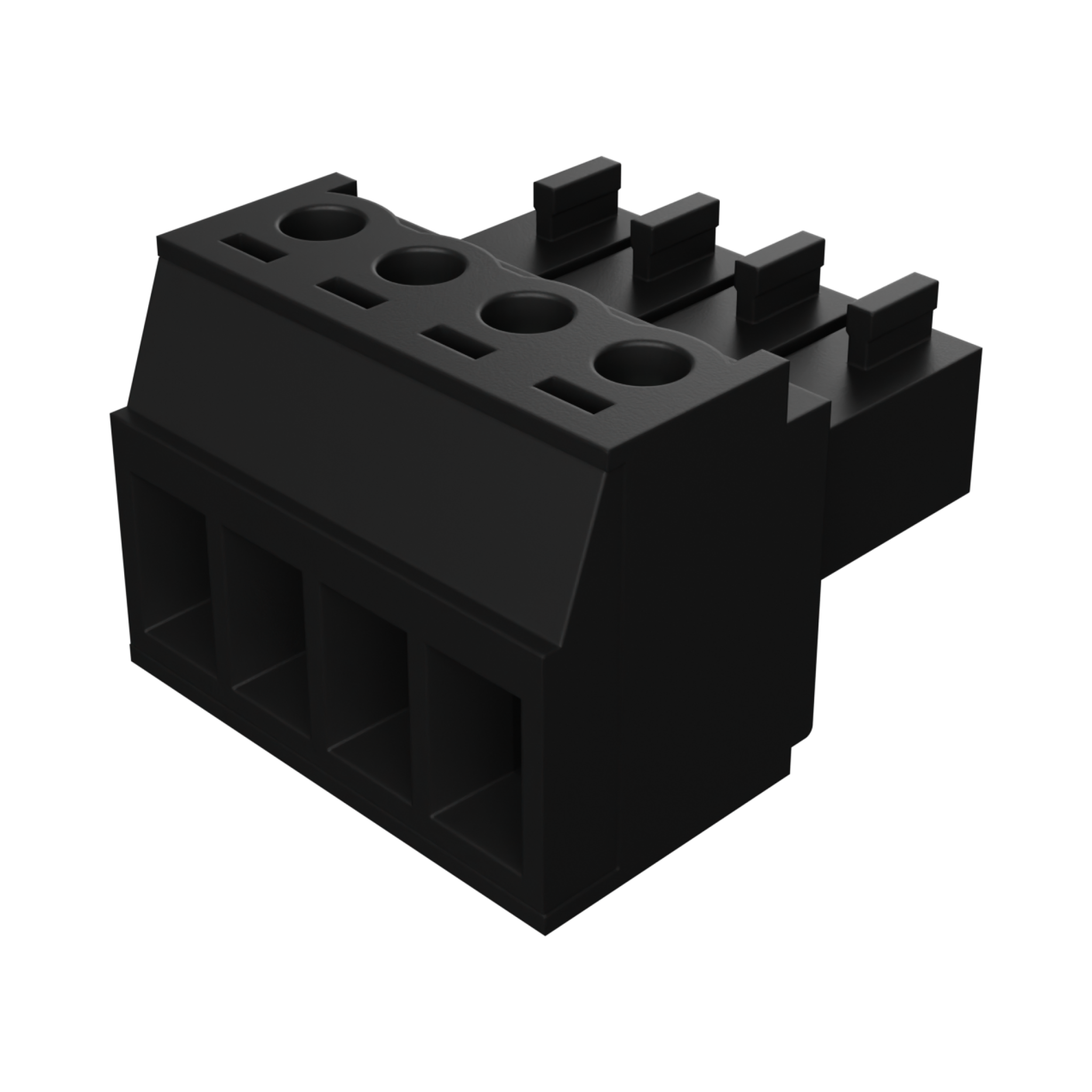

395000004 Eurostyle Pluggable by Molex
3.50mm Pitch Eurostyle Horizontal Plug, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39500-0004,
0395000004 |
Where to Buy
Prices starting from US$0.79
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.98
|
3,261
in stock
|
Buy Now |
|
element14
from US$0.91
|
3,261
in stock
|
Buy Now |
|
Farnell
from US$0.99
|
3,261
in stock
|
Buy Now |
|
Conrad
from US$1.41
|
921
in stock
|
Buy Now |
|
Heilind Europe
from US$1.25
|
120
in stock
|
Buy Now |
|
RS
from US$1.33
|
15
in stock
|
Buy Now |
|
TME
from US$1.30
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.00
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.01
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.79
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.17
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Entry Angle | Vertical |
| Lock To Mating Part | No |
| Net Weight | 2.600/g |
| Number Of Rows | 1 |
| Orientation | N/A |
| Panel Mount | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 30 |
| Wire Size Mm | 0.05-1.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal Block, Pluggable, 4Pos, 16Awg | Newark Electronics |
| TERMINAL BLOCK, PLUGGABLE, 4POS, 16AWG | element14 |
| Molex 395000004 Printklemme Polzahl 4 1 St. | Conrad |
| 3.5MM EURO PLUG RA BLK 4CKT | Heilind Europe |
| Molex 395000004 Pluggable Terminal Block | RS |
| Connector: pluggable terminal block | TME |
| 3.5MM EURO PLG 04P RA | TTI Americas |
| 3.5MM EURO PLUG RA 4CKT | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 395000004?
Additional datasheets, footprints and schematics for 395000004 are listed on our Part Details page. You can also find images and similar parts to 395000004 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 395000004 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 395000004 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 395000004 fall under?
The 395000004 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 395000004 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 395000004 you can contact the distributor directly for product support, shipping queries etc.
Is the 395000004 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 395000004 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Conrad and Heilind Europe have stock available or on a lead time for 395000004.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 395000004 often in real-time on the comparison pages.
What if I can't find stock of 395000004?
You can fill out our help required form which you can use to request a quote for 395000004 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
