393570003 Eurostyle Fixed Mount by Molex

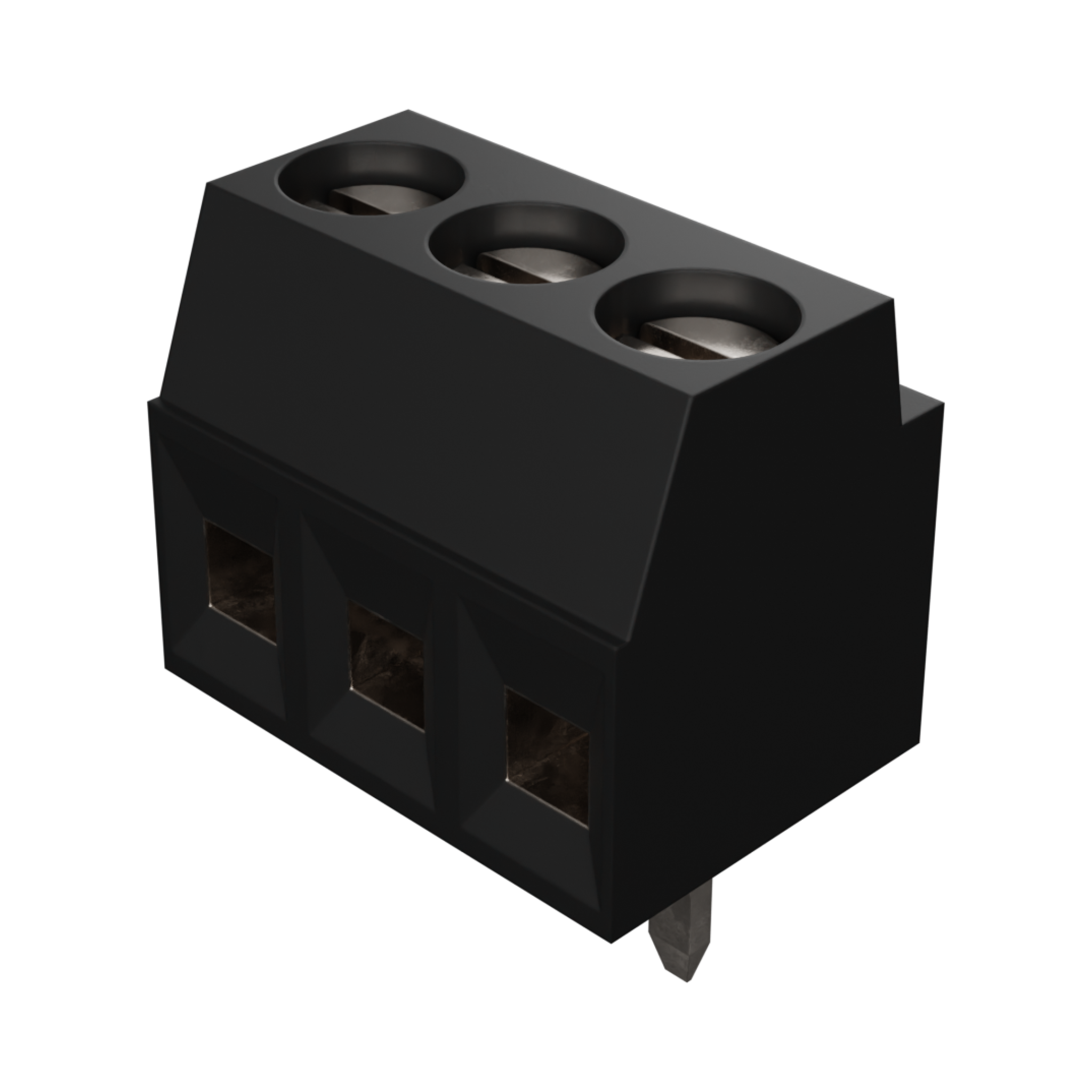

3.50mm Pitch Beau Eurostyle Fixed Mount PCB Terminal Block, 3 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39357-0003,
0393570003, MX-MTB03008-0N |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.70
|
5,634
in stock
|
Buy Now |
|
Farnell
from US$1.88
|
1,278
in stock
|
Buy Now |
|
Newark Electronics
from US$1.83
|
573
in stock
|
Buy Now |
|
element14
from US$1.66
|
573
in stock
|
Buy Now |
|
TME
from US$1.82
|
420
in stock
|
Buy Now |
|
RS
from US$2.00
|
80
in stock
|
Buy Now |
|
Avnet Abacus
-
|
1,000
in stock
|
Buy Now |
|
Avnet America
from US$0.76
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.74
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.59
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.64
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.34
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.93
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 17.5A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Net Weight | 2.020/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | No |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -30° to +85°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 26, 28 |
| Wire Size Mm | 0.20-1.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 3.5MM EURO PCB 03P VT FIXED | TTI Americas |
| TERMINAL BLOCK | Farnell |
| Tb, Wire To Board, 3Way, 16Awg Rohs Compliant: Yes |Molex 39357-0003 | Newark Electronics |
| TB, WIRE TO BOARD, 3WAY, 16AWG | element14 |
| Connector: PCB terminal block | TME |
| Molex 393570003 | RS |
| Wire-To-Board Terminal Block, 3.5 mm, 3 Ways, 28 AWG, 16 AWG, 1 mm�, Screw | Avnet Abacus |
| Wire-To-Board Terminal Block, 3.5 mm, 3 Ways, 28 AWG, 16 AWG, 1 mm?, Screw | Avnet America |
| 39357 SERIES 3.5MM PITCH STRAIGHT PCB TRM BLK W/ SOLDER TERM, THROUGH HOLE,3 WAY | RS Americas |
| PCB TERM BLK 3.5MM 3 POLE | TTI Europe |
| PCB TERM BLK 3.5MM 3 POLE STR GT | Heilind Americas |
