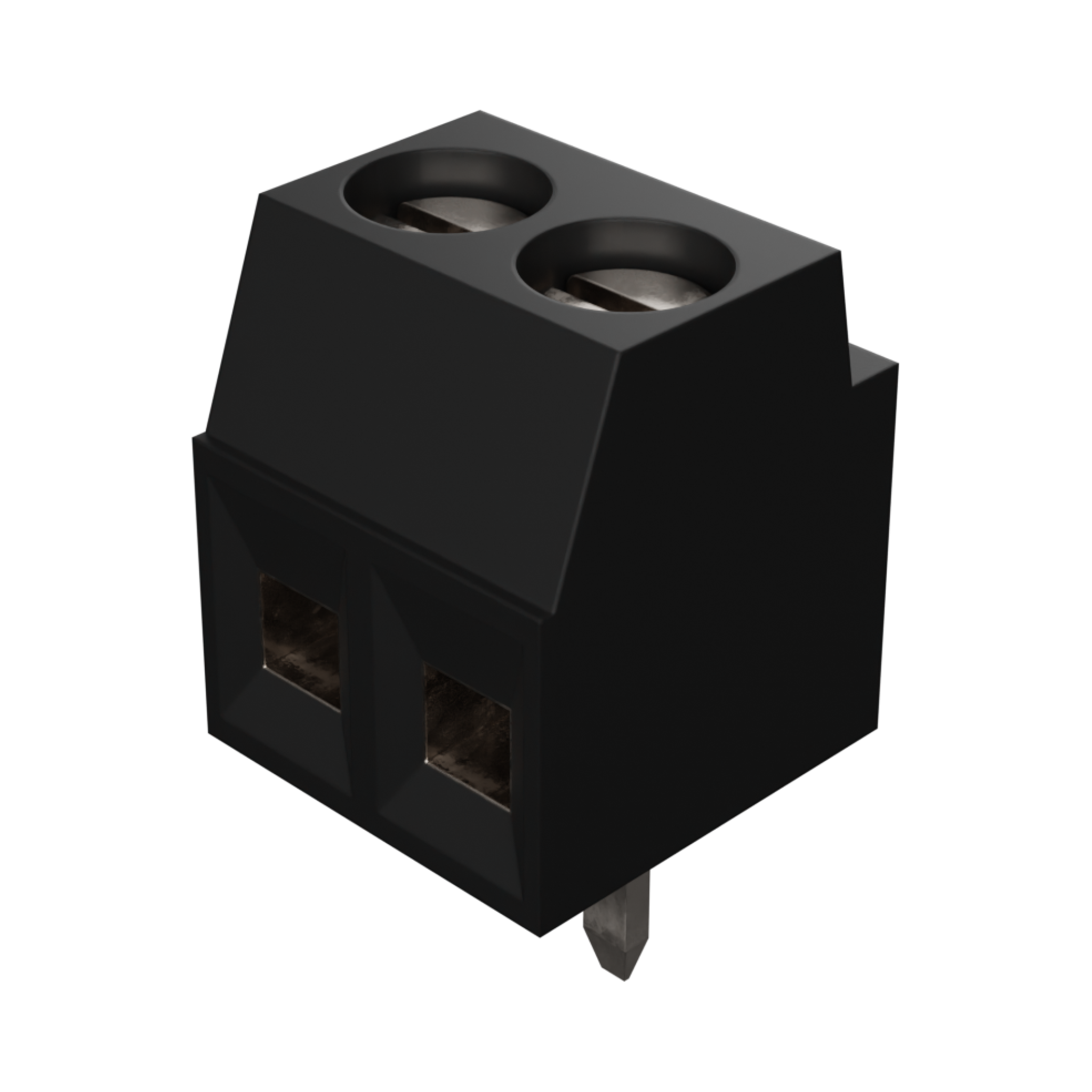

393570002 Eurostyle Fixed Mount by Molex
3.50mm Pitch Beau Eurostyle Fixed Mount PCB Terminal Block, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39357-0002,
0393570002, MX-MTB02008-0N |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.04
|
2,696
in stock
|
Buy Now |
|
Farnell
from US$1.07
|
2,427
in stock
|
Buy Now |
|
TME
from US$1.10
|
1,651
in stock
|
Buy Now |
|
Heilind Americas
from US$0.37
|
679
in stock
|
Buy Now |
|
element14
from US$1.13
|
634
in stock
|
Buy Now |
|
Newark Electronics
from US$0.53
|
181
in stock
|
Buy Now |
|
RS
from US$1.44
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.85
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.51
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Fixed Mount |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 17.5A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Net Weight | 1.240/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | No |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -30° to +85°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 26, 28 |
| Wire Size Mm | 0.20-1.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 393570002 Printklemme 1 St. | Conrad |
| TERMINAL BLOCK, WIRE TO BRD, 2POS, 28AWG | Farnell |
| Connector: PCB terminal block | TME |
| PCB TERM BLK 3.5MM 2POLE STRA T | Heilind Americas |
| TB, WIRE TO BRD, 2POS, 16AWG | element14 |
| Tb, Wire To Brd, 2Pos, 16Awg | Newark Electronics |
| Molex 393570002 | RS |
| 3.5MM EURO PCB 02P VT FIXED | TTI Americas |
| PCB TERM BLK 3.5MM 2POLE | TTI Europe |
| PCB TERM BLK 3.5MM 2POLE STRAG | TTI Asia |
