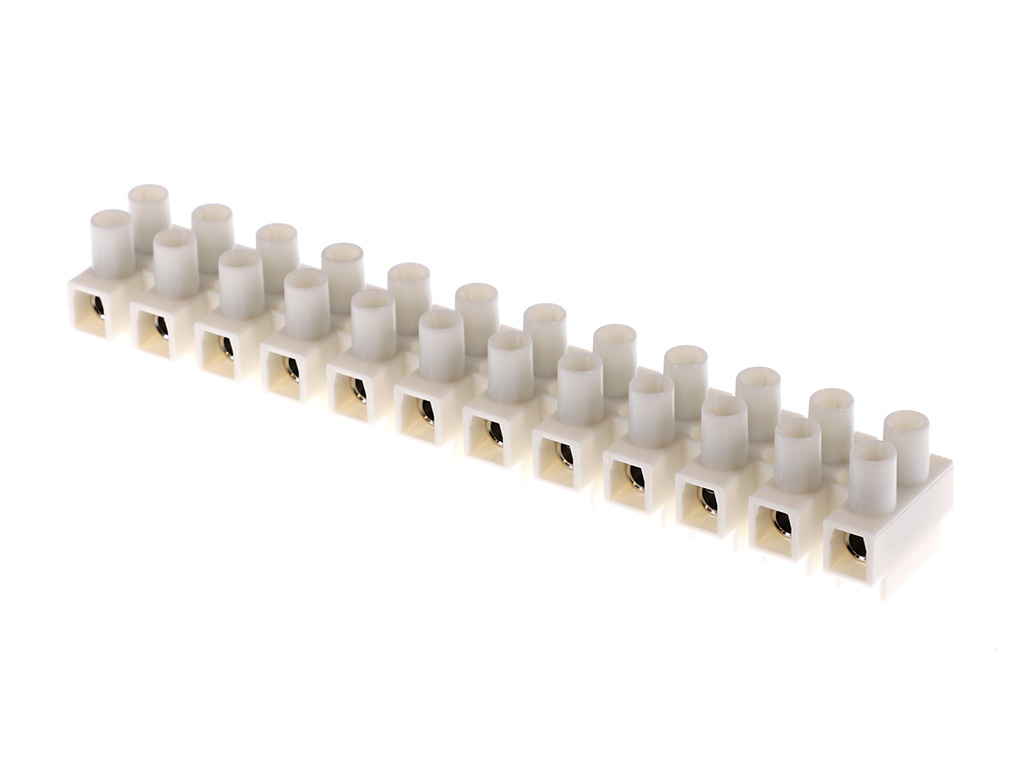

391002212 Eurostyle Two Screw by Molex
12.00mm Pitch, Beau Eurostyle Two-Screw Terminal Strips, 12 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39100-2212,
0391002212, M800-03-12-5-M1 |
Where to Buy
Prices starting from US$4.13
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$4.30
|
628
in stock
|
Buy Now |
|
TTI Americas
from US$4.13
|
516
in stock
|
Buy Now |
|
RS Americas
from US$6.60
|
461
in stock
|
Buy Now |
|
Newark Electronics
from US$5.18
|
400
in stock
|
Buy Now |
|
Avnet America
from US$4.17
|
0
in stock
|
Buy Now |
|
element14
from US$4.93
|
0
in stock
|
Buy Now |
|
Farnell
from US$5.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Two Screw |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 40.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | White |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Stainless Steel, Steel |
| Material Resin | Nylon |
| Net Weight | 49.000/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | Mounting Holes Between Circuit |
| Pitch Mating Interface | 12.00mm |
| Pitch Termination Interface | 12.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 8, 10, 12, 14, 16, 18, 20 |
| Wire Size Mm | 0.52-8.37 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 12MM EURO STRIP 12P | TTI Americas |
| TERM STRIP 12MM HIGH PROF 12 CIR, 39100 SERIES | RS Americas |
| Term Strip 12Mm High Prof 12 Cir Wht |Molex 39100-2212 | Newark Electronics |
| TERMINAL BLOCK, BARRIER, 12POS, 8AWG | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 391002212?
Additional datasheets, footprints and schematics for 391002212 are listed on our Part Details page. You can also find images and similar parts to 391002212 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 391002212 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 391002212 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 391002212 fall under?
The 391002212 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 391002212 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 391002212 you can contact the distributor directly for product support, shipping queries etc.
Is the 391002212 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 391002212 have stock available?
Authorised distributors including Waytek, TTI Americas, RS Americas, Newark Electronics and Avnet America have stock available or on a lead time for 391002212.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 391002212 often in real-time on the comparison pages.
What if I can't find stock of 391002212?
You can fill out our help required form which you can use to request a quote for 391002212 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
