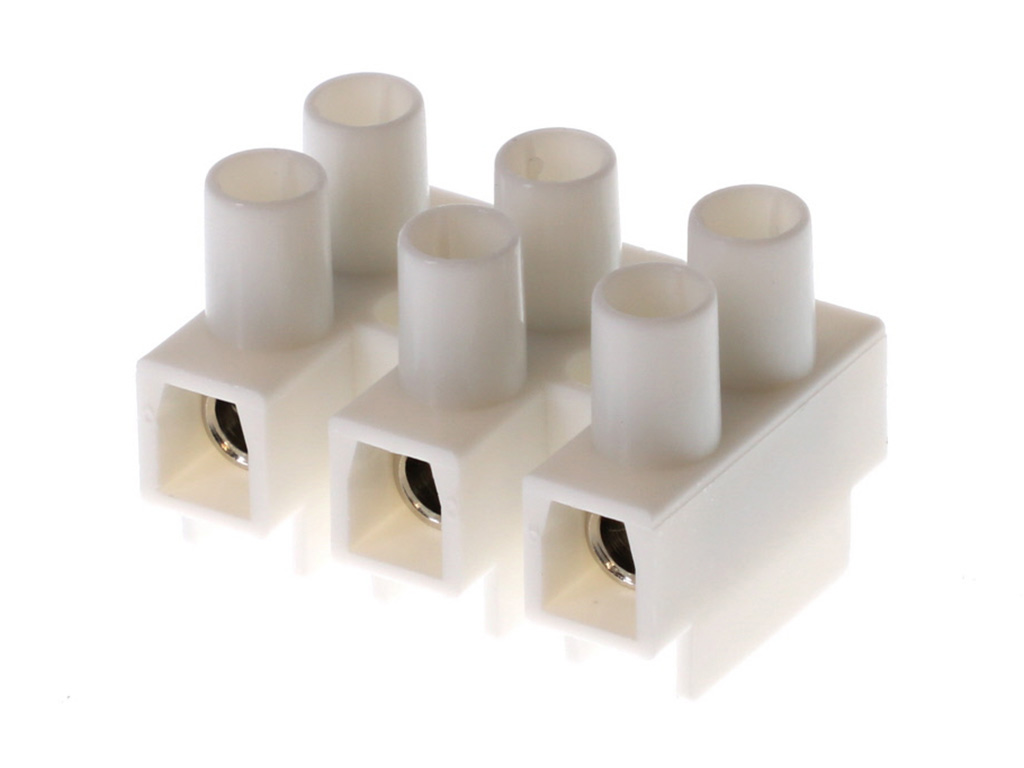

391002203 Eurostyle Two Screw by Molex
12.00mm Pitch, Beau Eurostyle Two-Screw Terminal Strips, 3 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39100-2203,
0391002203, M800-03-03-5-M1 |
Where to Buy
Prices starting from US$0.83
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.11
|
1,990
in stock
|
Buy Now |
|
element14
from US$1.13
|
1,990
in stock
|
Buy Now |
|
Farnell
from US$1.24
|
1,990
in stock
|
Buy Now |
|
TTI Americas
from US$1.04
|
1,829
in stock
|
Buy Now |
|
Heilind Americas
from US$0.99
|
93
in stock
|
Buy Now |
|
RS
from US$1.53
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.69
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.98
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.83
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Two Screw |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 40.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | White |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Stainless Steel, Steel |
| Material Resin | Nylon |
| Net Weight | 12.250/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | Mounting Holes Between Circuit |
| Pitch Mating Interface | 12.00mm |
| Pitch Termination Interface | 12.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 8, 10, 12, 14, 16, 18, 20 |
| Wire Size Mm | 0.52-8.37 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal Block, Barrier, 3Pos, 8Awg | Newark Electronics |
| TERMINAL BLOCK, BARRIER, 3POS, 8AWG | element14 |
| 12MM EURO STRIP 03P 2SCREW | TTI Americas |
| TERM STRIP 12MM HIGH PROF | Heilind Americas |
| Molex 39100-2203 Terminal Strip | RS |
| Molex 391002203 Printklemme 1 St. Bulk | Conrad |
| TERM STRIP 12MM HIGH PROF 3 | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 391002203?
Additional datasheets, footprints and schematics for 391002203 are listed on our Part Details page. You can also find images and similar parts to 391002203 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 391002203 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 391002203 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 391002203 fall under?
The 391002203 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 391002203 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 391002203 you can contact the distributor directly for product support, shipping queries etc.
Is the 391002203 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 391002203 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, TTI Americas and Heilind Americas have stock available or on a lead time for 391002203.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 391002203 often in real-time on the comparison pages.
What if I can't find stock of 391002203?
You can fill out our help required form which you can use to request a quote for 391002203 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
