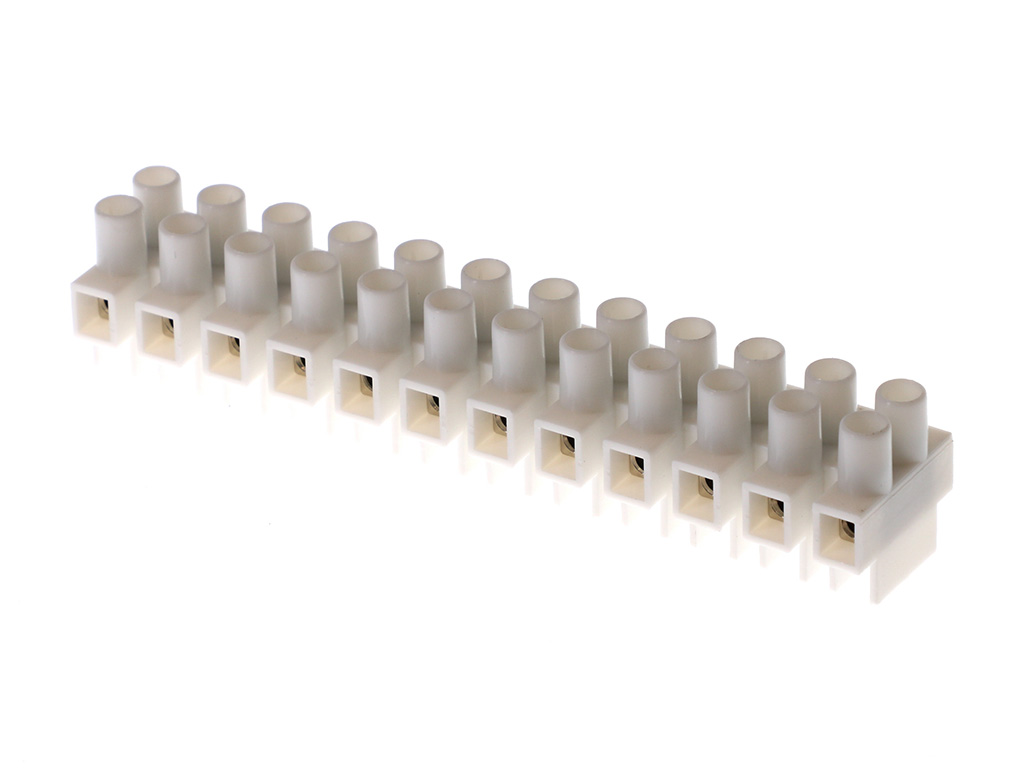

391001812 Eurostyle Two Screw by Molex
8.00mm Pitch, Beau Eurostyle Two-Screw Terminal Strips, 12 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39100-1812,
0391001812, M800-01-12-5-M1 |
Where to Buy
Prices starting from US$2.51
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$3.67
|
1,127
in stock
|
Buy Now |
|
TME
from US$3.54
|
1,002
in stock
|
Buy Now |
|
Waytek
from US$3.04
|
676
in stock
|
Buy Now |
|
element14
from US$3.62
|
644
in stock
|
Buy Now |
|
TTI Americas
from US$2.51
|
31
in stock
|
Buy Now |
|
Avnet Abacus
-
|
750
in stock
|
Buy Now |
|
Avnet America
from US$2.69
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.18
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$2.68
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Two Screw |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 20.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | White |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Stainless Steel, Steel |
| Material Resin | Nylon |
| Net Weight | 32.250/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | Mounting Holes Between Circuit |
| Pitch Mating Interface | 8.00mm |
| Pitch Termination Interface | 8.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 12, 14, 16, 18, 20, 22 |
| Wire Size Mm | 0.33-3.31 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| BARRIER, PANEL, 12POS, 2ROW, 8MM | Farnell |
| Connector: PCB terminal block | TME |
| 8MM EURO STRIP 12P 2SCREW | TTI Americas |
| Panel Mount Barrier Terminal Block, Eurostyle, 2 Row, 12 Positions, 22 AWG, 12 AWG, 8 mm, 20 A | Avnet America |
| TERM STRIP 8MM 12 CIR | TTI Europe |
| TERM STRIP 8MM HIGH PROF R WHT | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 391001812?
Additional datasheets, footprints and schematics for 391001812 are listed on our Part Details page. You can also find images and similar parts to 391001812 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 391001812 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 391001812 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 391001812 fall under?
The 391001812 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 391001812 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 391001812 you can contact the distributor directly for product support, shipping queries etc.
Is the 391001812 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 391001812 have stock available?
Authorised distributors including Farnell, TME, Waytek, element14 and TTI Americas have stock available or on a lead time for 391001812.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 391001812 often in real-time on the comparison pages.
What if I can't find stock of 391001812?
You can fill out our help required form which you can use to request a quote for 391001812 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
