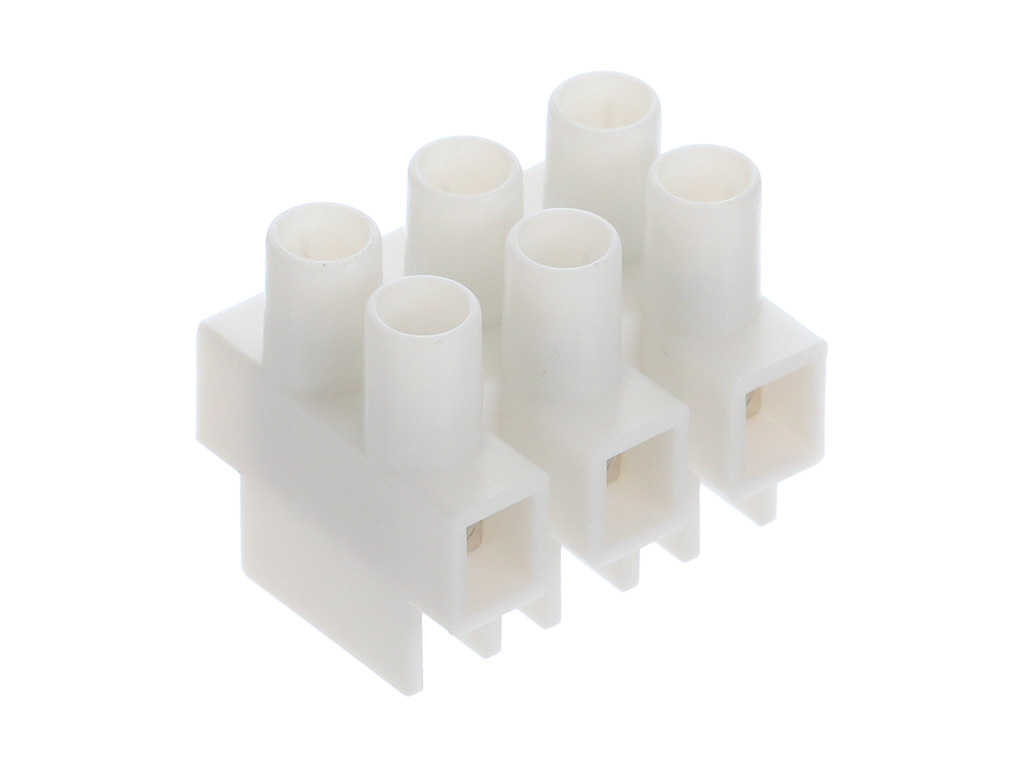

391001803 Eurostyle Two Screw by Molex
8.00mm Pitch, Beau Eurostyle Two-Screw Terminal Strips, 3 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39100-1803,
0391001803, M800-01-03-5-M1 |
Where to Buy
Prices starting from US$0.61
Specifications
| Product Name | Eurostyle Two Screw |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 20.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | White |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Stainless Steel, Steel |
| Material Resin | Nylon |
| Net Weight | 8.060/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | Mounting Holes Between Circuit |
| Pitch Mating Interface | 8.00mm |
| Pitch Termination Interface | 8.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 12, 14, 16, 18, 20, 22 |
| Wire Size Mm | 0.33-3.31 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| TERMINAL BLOCK, BARRIER, 3POS, 12AWG | element14 |
| Panel Mount Barrier Terminal Block, 2 Row, 3 Ways, 22 AWG, 12 AWG, 8 mm, 20 A | Avnet Abacus |
| Molex 391001803 Printklemme 1 St. | Conrad |
| 8MM EURO STRIP 03P 2SCREW | TTI Americas |
| TERM STRIP 8MM HIGH PROF WHT | Heilind Europe |
