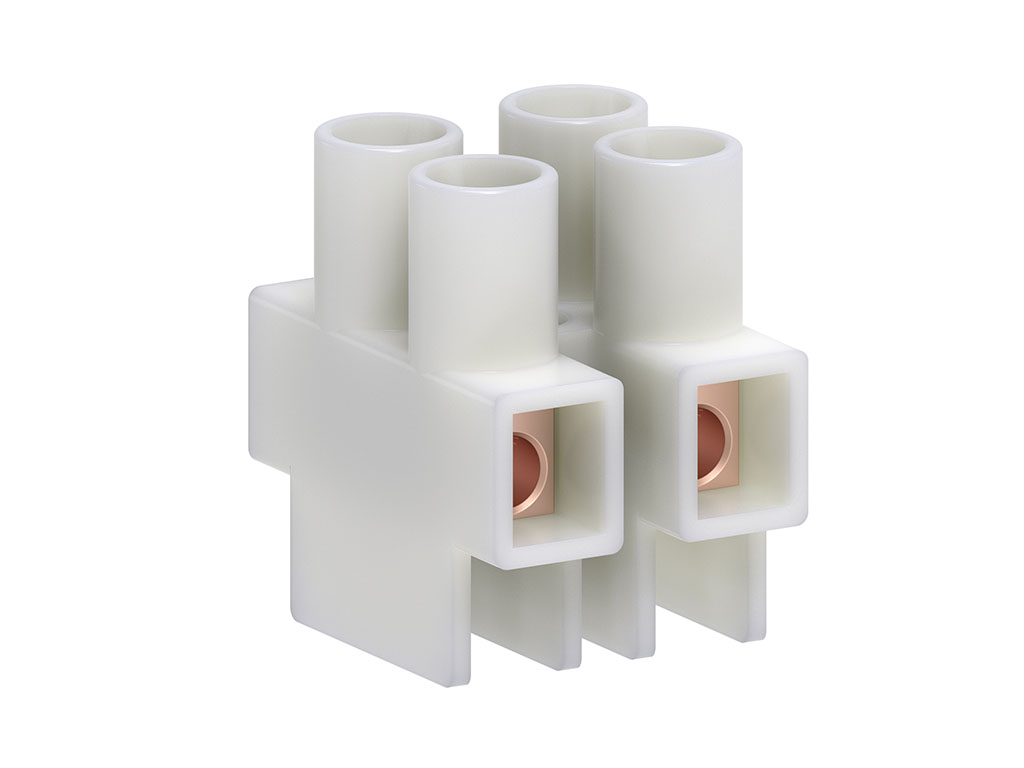

391001802 Eurostyle Two Screw by Molex
8.00mm Pitch, Beau Eurostyle Two-Screw Terminal Strips, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39100-1802,
0391001802, M800-01-02-5-M1 |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.32
|
11,510
in stock
|
Buy Now |
|
TME
from US$0.54
|
1,141
in stock
|
Buy Now |
|
Farnell
from US$0.67
|
1,027
in stock
|
Buy Now |
|
Conrad
from US$0.76
|
241
in stock
|
Buy Now |
|
Newark Electronics
from US$0.51
|
170
in stock
|
Buy Now |
|
element14
from US$0.51
|
170
in stock
|
Buy Now |
|
Avnet Abacus
-
|
4,000
in stock
|
Buy Now |
|
Rutronik
from US$0.51
|
0
in stock
|
Buy Now |
|
RS
from US$0.64
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.42
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.45
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.38
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Two Screw |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 20.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | White |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Stainless Steel, Steel |
| Material Resin | Nylon |
| Net Weight | 5.380/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Panel Mount | Mounting Holes Between Circuit |
| Pitch Mating Interface | 8.00mm |
| Pitch Termination Interface | 8.00mm |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 12, 14, 16, 18, 20, 22 |
| Wire Size Mm | 0.33-3.31 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| TERM STRIP 8MM HIGH PROF WHT | Heilind Americas |
| Connector: PCB terminal block | TME |
| TERMINAL BLOCK, BARRIER, 2POS, 12AWG | Farnell |
| Molex 391001802 Printklemme 1 St. | Conrad |
| Terminal Block, Barrier, 2Pos, 22-12Awg Rohs Compliant: Yes |Molex 39100-1802 | Newark Electronics |
| TERMINAL BLOCK, BARRIER, 2POS, 22-12AWG | element14 |
| Conn Barrier Terminal Block 2 POS 8mm Screw ST Panel Mount 20A | Avnet Abacus |
| 8.00mm Pitch Beau Eurostyle | Rutronik |
| Molex 39100-1802 Strip | RS |
| TERM STRIP 12MM HIGH PROF 12 CIR WHT | RS Americas |
| 8MM EURO STRIP 02P 2SCREW | TTI Americas |
