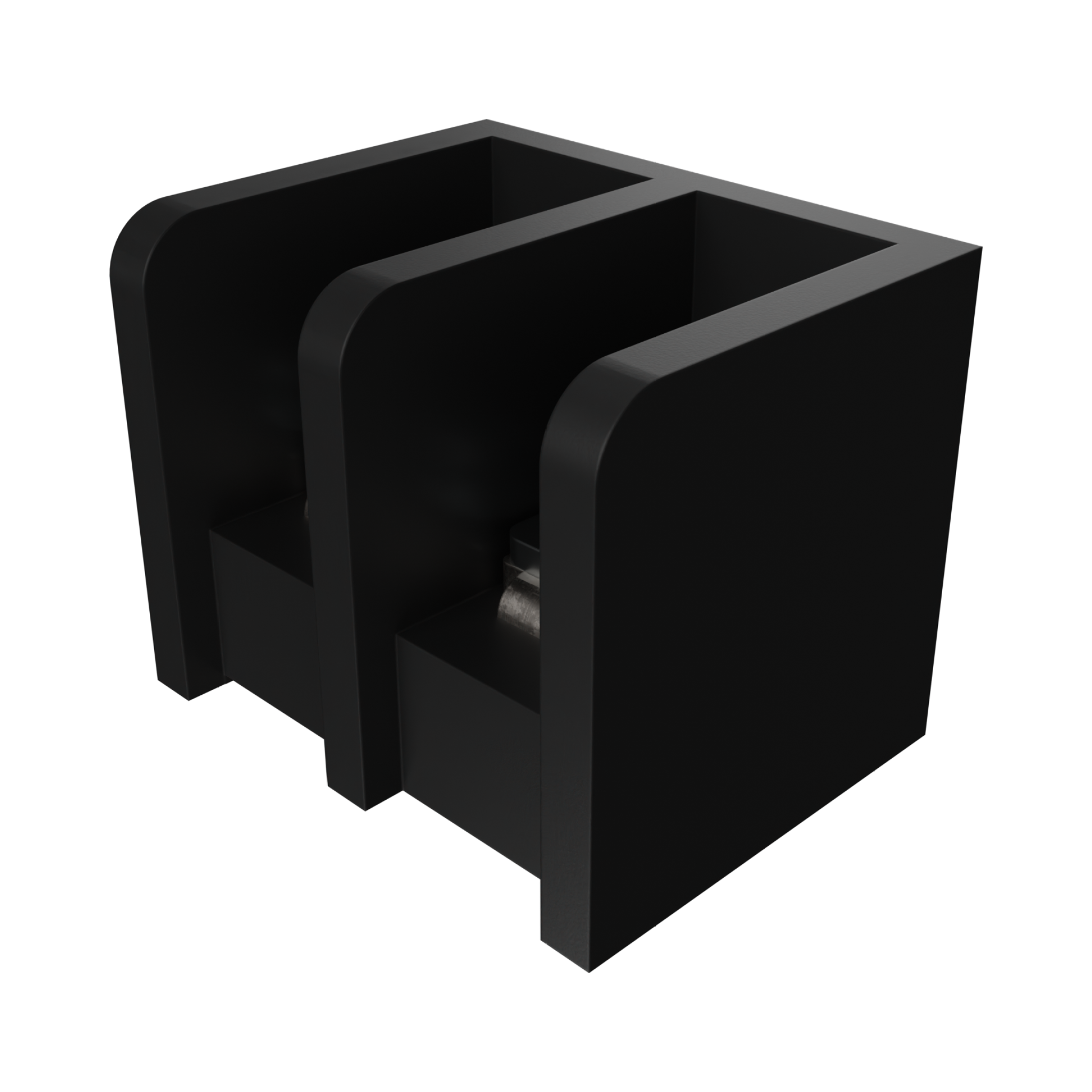

389690002 Fixed Mount Barrier by Molex
12.70mm Pitch, Single Row, Tri-Barrier Terminal Strip, without Mounting Ends, Black, Steel Screws, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
38969-0002,
0389690002 |
Where to Buy
Prices starting from US$0.68
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.19
|
2,201
in stock
|
Buy Now |
|
element14
from US$0.94
|
446
in stock
|
Buy Now |
|
Farnell
from US$1.07
|
446
in stock
|
Buy Now |
|
RS
from US$1.06
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.54
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.87
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.68
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.99
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Fixed Mount Barrier |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 50.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Brass, Steel |
| Material Plating Mating | Nickel |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 17.000/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 4.00mm |
| Pitch Mating Interface | N/A |
| Pitch Termination Interface | 12.70mm |
| Polarized To Mating Part | No |
| Shrouded | Tri-Barrier |
| Stackable | No |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 8, 10, 12, 14, 16, 18, 20 |
| Wire Size Mm | 0.52-8.37 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal Block, Barrier, 2Pos, 8Awg | Newark Electronics |
| 12.70MM SR CS NO MTG PC STL 2 CKT | element14 |
| Molex 38969-0002 Barrier Strip | RS |
| Molex 389690002 Printklemme Polzahl 2 1 St. | Conrad |
| .250 TRI BARRIER 02P | TTI Americas |
| 12.70MM SR CS NO MTG PC S CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 389690002?
Additional datasheets, footprints and schematics for 389690002 are listed on our Part Details page. You can also find images and similar parts to 389690002 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 389690002 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 389690002 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 389690002 fall under?
The 389690002 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 389690002 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 389690002 you can contact the distributor directly for product support, shipping queries etc.
Is the 389690002 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 389690002 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS and Conrad have stock available or on a lead time for 389690002.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 389690002 often in real-time on the comparison pages.
What if I can't find stock of 389690002?
You can fill out our help required form which you can use to request a quote for 389690002 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
