2451320699 Micro-Fit 3.0 by Molex

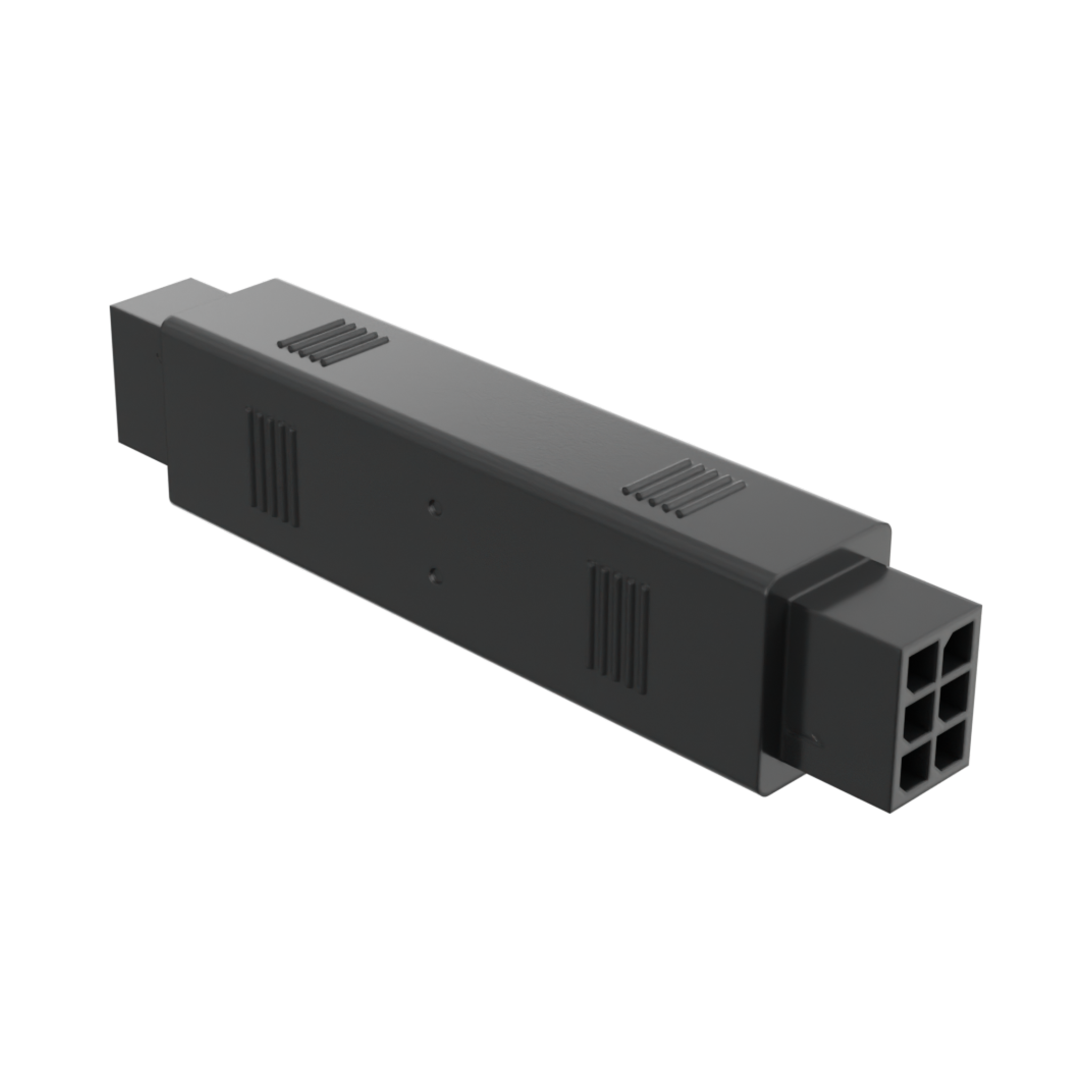

Micro-Fit 3.0 Overmolded Plug Adapter, Dual Row, 6 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 245132-0699 |
Where to Buy
Prices starting from US$4.25
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$4.43
|
223
in stock
|
Buy Now |
|
TTI Americas
from US$4.47
|
148
in stock
|
Buy Now |
|
RS
from US$7.20
|
103
in stock
|
Buy Now |
|
Newark Electronics
from US$6.47
|
92
in stock
|
Buy Now |
|
TME
from US$9.00
|
18
in stock
|
Buy Now |
|
element14
from US$7.35
|
2
in stock
|
Buy Now |
|
Farnell
from US$7.28
|
2
in stock
|
Buy Now |
|
Avnet America
from US$4.25
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$6.16
|
0
in stock
|
Buy Now |
|
Compona
from US$6.63
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$6.58
|
0
in stock
|
Buy Now |
|
Sager
from US$5.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.81
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.6A |
| Voltage Maximum | 300V DC |
Physical |
|
|---|---|
| Cable Length | 50.00mm |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Gender | Male-Male |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon, Polybutylene Terephthalate (PBT) |
| Net Weight | 36.636/g |
| Number Of Rows | 2 |
| Over Molded | Yes |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1007 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PLUG ADPTR,6POS,2ROW MICROFIT3.0,OVRMLD BLK | Heilind Americas |
| MICRO-FIT PLG ADAPTER 02X03P | TTI Americas |
| Molex 245132-0699 Connector Housing | RS |
| Plug Adapter, 2Row, 6Pos, 20Awg | Newark Electronics |
| Connector: wire-wire | TME |
| ADAPTER, 6POS, RCPT CONNECTOR | element14 |
| MICRO-FIT 3.0 PLUG ADAPTER, DUAL ROW, 6 CIRCUITS, BLACK | RS Americas |
| MOLEX 245132-0699 Adapter Micro-Fit M/M 6p | Compona |
| MICROFIT 6CKT 50MM OM | TTI Europe |
| Headers & Wire Housings MICRO-FIT PLG ADAPTER 02X03P | Sager |
