22182081 KK 254 by Molex

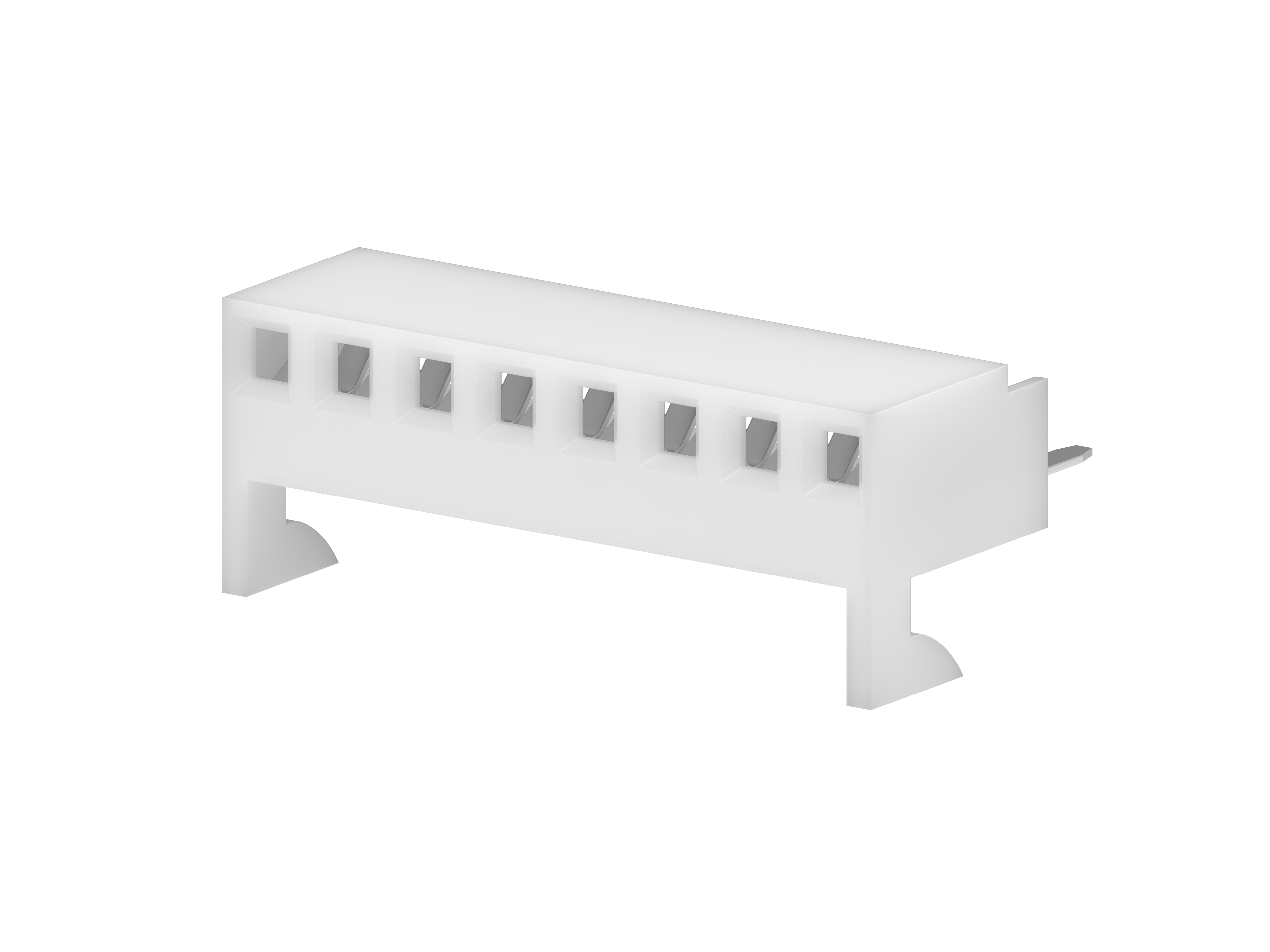

KK 254 PC Board Connector, Top Entry, End-to-End Stackable, with Cat Ear Terminal, 0.38µm Gold (Au) Plating, 8 Circuits, with Hooks
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-18-2081,
0022182081, A-4455-CZ08A(208) |
Where to Buy
Prices starting from US$0.61
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.99
|
3,024
in stock
|
Buy Now |
|
Heilind Americas
from US$0.85
|
36
in stock
|
Buy Now |
|
Avnet America
from US$0.89
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.05
|
0
in stock
|
Buy Now |
|
element14
from US$0.77
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.82
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.61
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.82
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.842/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 8Pos, 1Row, 2.54Mm | Newark Electronics |
| KK 100 PCB ASSY TOP 08 CKT GO D | Heilind Americas |
| Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray | Avnet America |
| KK 100 PCB ASSY TOP 08 CKT GOLD | RS Americas |
| CONNECTOR, RCPT, 8POS, 1ROW, 2.54MM | element14 |
| KK .100 REC 08P TOP ENTRY | TTI Americas |
