22173162 KK 254 by Molex

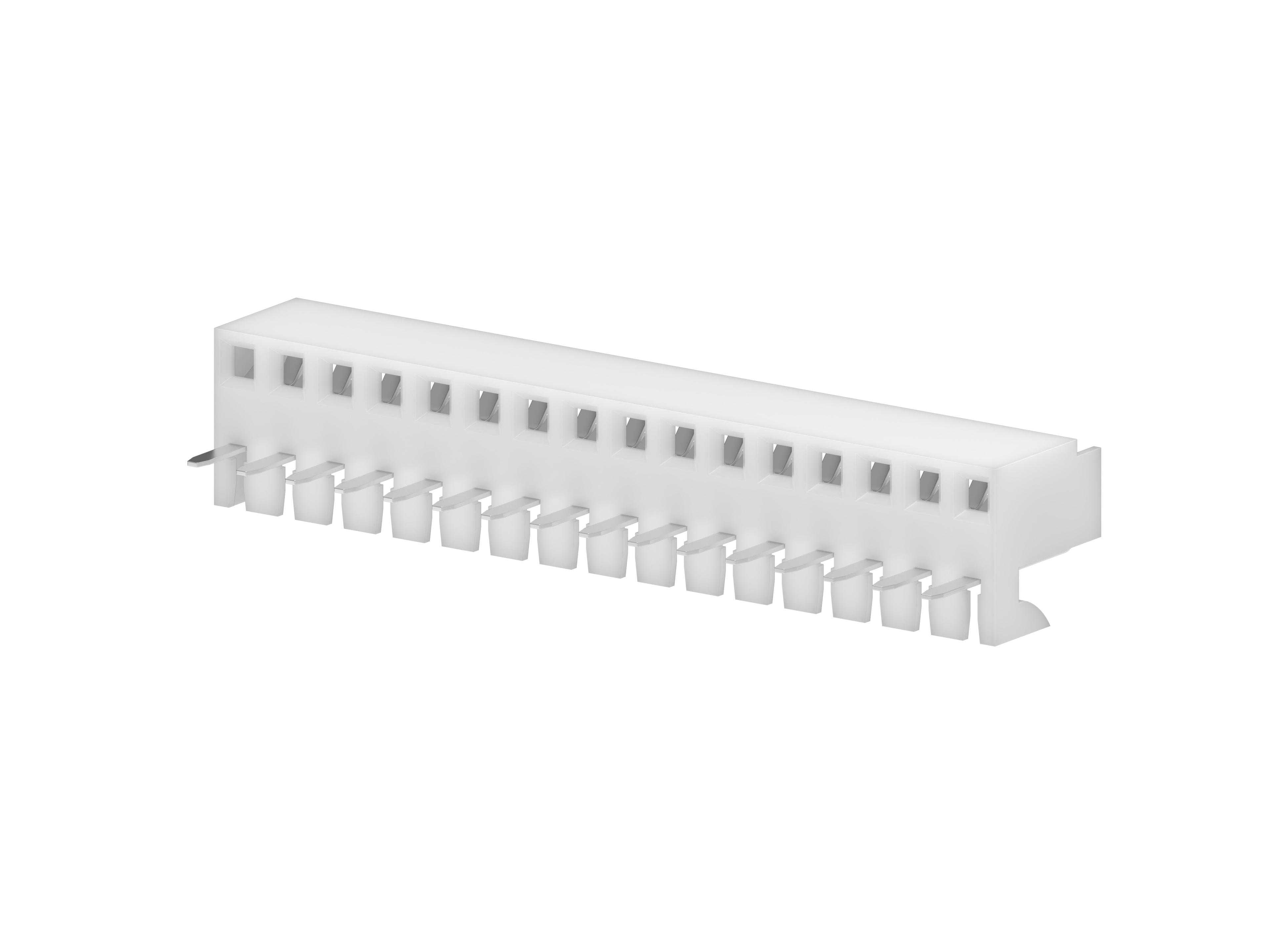

KK 254 PC Board Connector, Bottom Entry, End-to-End Stackable, 0.38µm Gold (Au) Plating, 16 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-17-3162,
0022173162, A-4455-BH16D(208) |
Where to Buy
Prices starting from US$0.70
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.38
|
950
in stock
|
Buy Now |
|
RS Americas
from US$0.70
|
596
in stock
|
Buy Now |
|
TME
from US$1.40
|
154
in stock
|
Buy Now |
|
element14
from US$1.80
|
139
in stock
|
Buy Now |
|
Farnell
from US$2.52
|
139
in stock
|
Buy Now |
|
|
RS
from US$2.15
|
119
in stock
|
Buy Now |
|
Heilind Americas
from US$1.77
|
6
in stock
|
Buy Now |
|
Avnet America
from US$1.30
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.25
|
0
in stock
|
Buy Now |
|
Sager
from US$1.60
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.13
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.84
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 16 |
| Circuits Maximum | 16 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.949/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, plug,16 Contacts, skt,0.1 Pitch, pc Tail Terminal |Molex 22-17-3162 | Newark Electronics |
| KK 254 SERIES 2.54MM 16 WAY 1 ROW STRAIGHT PCB SOCKET THROUGH HOLE SOCKET STRIP | RS Americas |
| Connector: wire-board | TME |
| CONNECTOR, RCPT, 16POS, 2.54MM | element14 |
| CONN, RCPT, 16POS, 2.54MM, TH | Farnell |
| Molex 22-17-3162 PCB Socket | RS |
| KK 100 PCB ASSY BTM 16 CKT GO D | Heilind Americas |
| Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Tray | Avnet America |
| KK .100 REC 16P BTM ENTR 15AU | TTI Americas |
| Headers & Wire Housings KK 100 PCB Assy Btm 16 Ckt Gold | Sager |
