22152076 KK 254 by Molex

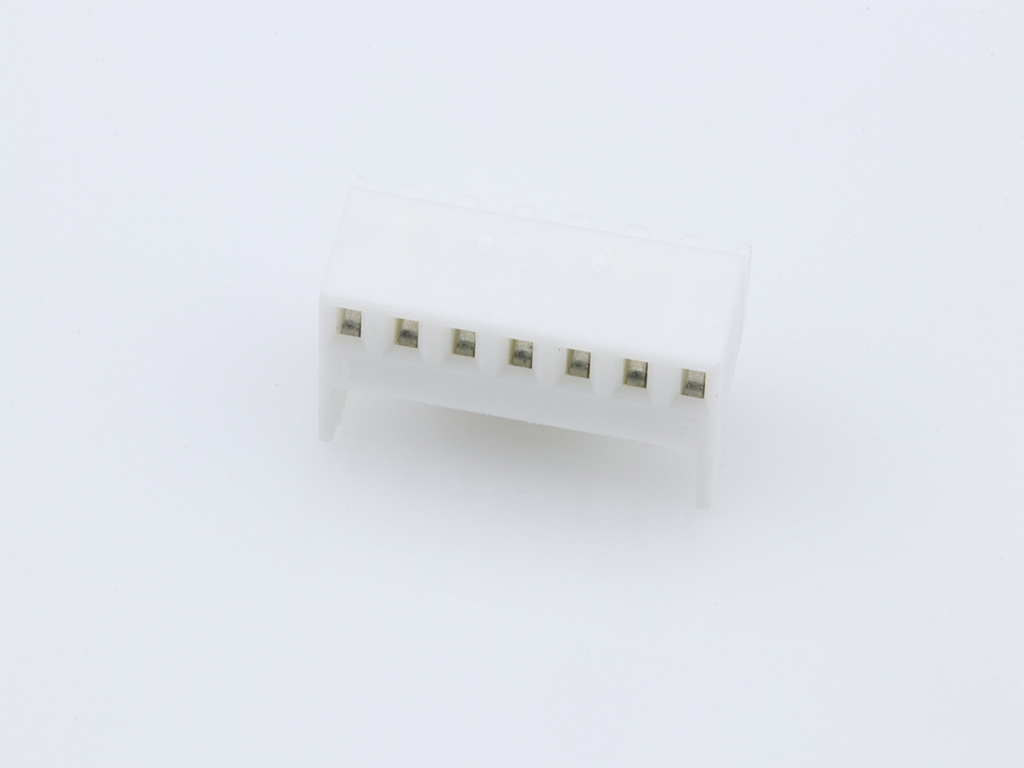

KK 254 PC Board Connector, Right-Angle, End-to-End Stackable, 2.54µm Tin (Sn) Plating, 7 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-15-2076,
0022152076, A-4455-AZ07A(P909) |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.12
|
3,215
in stock
|
Buy Now |
|
Farnell
from US$0.89
|
3,078
in stock
|
Buy Now |
|
TME
from US$0.54
|
2,772
in stock
|
Buy Now |
|
Newark Electronics
from US$0.12
|
136
in stock
|
Buy Now |
|
RS
from US$1.00
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.51
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.55
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.39
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.60
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 7 |
| Circuits Maximum | 7 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.739/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
