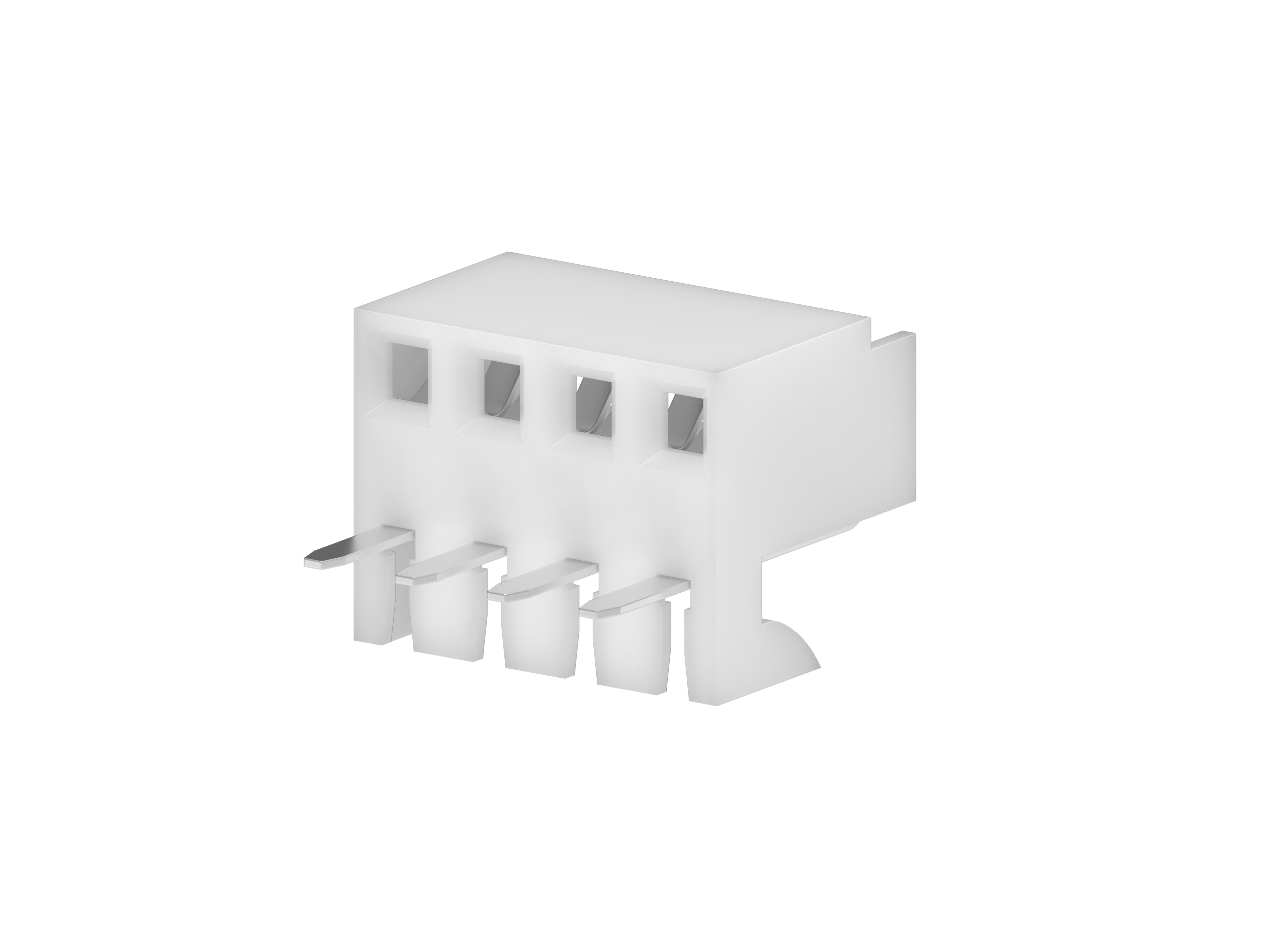

22142044 KK 254 by Molex
KK 254 PC Board Connector, Bottom Entry, End-to-End Stackable, 2.54µm Tin (Sn) Plating, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-14-2044,
0022142044, A-4455-BH04D(P909) |
Where to Buy
Prices starting from US$0.22
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.28
|
12,096
in stock
|
Buy Now |
|
TME
from US$0.28
|
10,410
in stock
|
Buy Now |
|
Heilind Americas
from US$0.22
|
4,864
in stock
|
Buy Now |
|
RS
from US$0.50
|
604
in stock
|
Buy Now |
|
Newark Electronics
from US$0.46
|
434
in stock
|
Buy Now |
|
element14
from US$0.26
|
374
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.47
|
77
in stock
|
Buy Now |
|
Conrad
from US$0.69
|
77
in stock
|
Buy Now |
|
Avnet America
from US$0.29
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.39
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.24
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.487/g |
| Number Of Rows | 1 |
| Orientation | Bottom Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.35mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, RCPT, 4POS, 2.54MM, TH | Farnell |
| Connector: wire-board | TME |
| KK 100 PCB ASSY BTM 04 CKT TIN | Heilind Americas |
| Molex 22-14-2044 PCB Socket | RS |
| Connector, Rcpt, 4Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 4POS, 1ROW, 2.54MM | element14 |
| Molex 22142044 KK 254 Socket 4 Pins 2.54mm Spacing Bottom Entry | Rapid Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 4 Rastermaß: 2.54 mm 22142044 1 St. Tray | Conrad |
| Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Tray | Avnet America |
| KK 254 SERIES 2.54MM 4 WAY 1 ROW STRAIGHT PCB SOCKET THROUGH HOLE SOCKET STRIP | RS Americas |
| KK .100 REC 04P BTM ENTRY SN | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22142044?
Additional datasheets, footprints and schematics for 22142044 are listed on our Part Details page. You can also find images and similar parts to 22142044 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22142044 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22142044 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22142044 fall under?
The 22142044 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22142044 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22142044 you can contact the distributor directly for product support, shipping queries etc.
Is the 22142044 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22142044 have stock available?
Authorised distributors including Farnell, TME, Heilind Americas, RS and Newark Electronics have stock available or on a lead time for 22142044.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22142044 often in real-time on the comparison pages.
What if I can't find stock of 22142044?
You can fill out our help required form which you can use to request a quote for 22142044 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
