22051142 KK,Mini-Latch by Molex

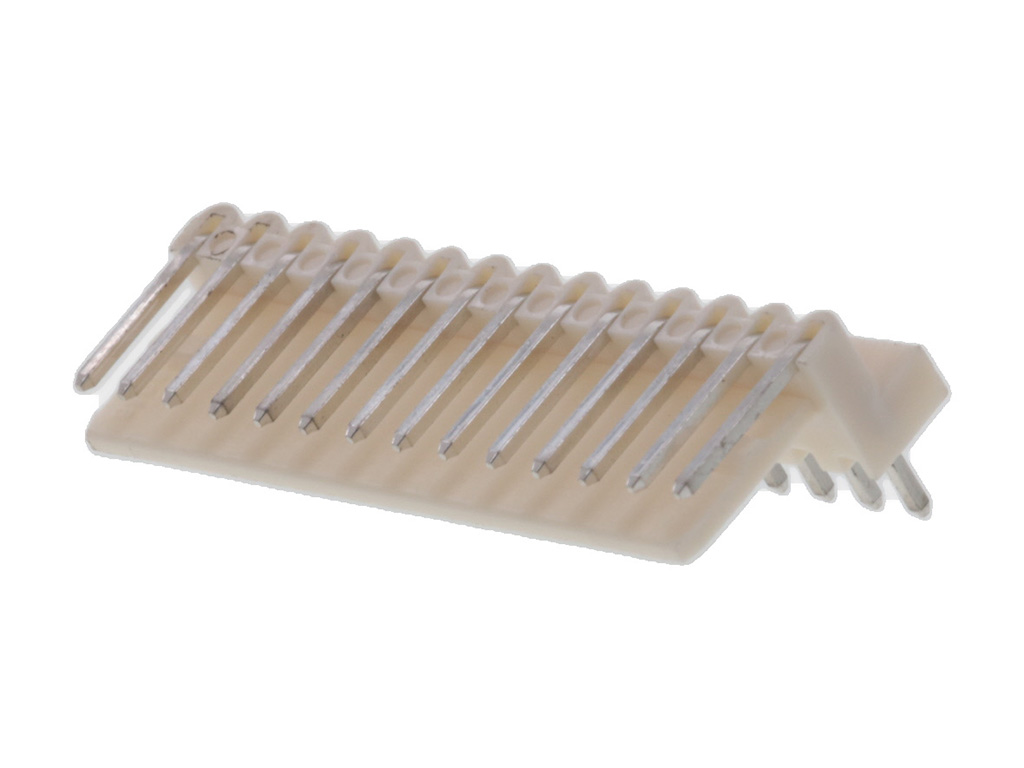

Mini-Latch / KK Wire-to-Board Header, Right-Angle, with Friction Ramp, 14 Circuits, Tin (Sn) Plating, Natural
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-05-1142,
0022051142, 5046-14A |
Where to Buy
Prices starting from US$0.90
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.77
|
4,195
in stock
|
Buy Now |
|
Conrad
from US$3.09
|
4,195
in stock
|
Buy Now |
|
Farnell
from US$2.09
|
3,776
in stock
|
Buy Now |
|
TME
from US$0.95
|
3,195
in stock
|
Buy Now |
|
RS
from US$1.46
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.81
|
0
in stock
|
Buy Now |
|
EME
from US$0.90
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK,Mini-Latch |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1819.400/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.40mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Wire-To-Board Connector, 5046 Series, Through Hole, Header, 14, 2.5 Mm, Tin Plated Contacts |Molex 22-05-1142 | Newark Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 14 22051142 1 St. Bulk | Conrad |
| CONN, HEADER, 14POS, 1ROW, 2.5MM | Farnell |
| Connector: wire-board | TME |
| Molex 22-05-1142 PCB Header | RS |
| Conn Wire to Board HDR 14 POS 2.5mm Solder RA Thru-Hole Bag | Avnet America |
2205114-2 Copper Cable Assemblies by TE Connectivity
CA 150MM 08 POS. MOW-PB M-M VALUE LINE
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Color | Gray |
|---|---|
| Equalized | No |
| Keyed | No |
| Configuration | Double-Ended |
| Number of Power Positions | 8 |
| Wire Size | 28AWG |
| Flammability Rating | UL 2651 |
| IEEE 1394 | No |
| CLOUDSPLITTER | No |
| Cable Assembly Length | .15m, .492ft |
| Cable Assembly Category | Industry Standard |
| Cable Assembly Type | MOW to PB |
| Product Type | Cable Assembly |
| Product Designation | Patch Cord |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ribbon Cables / IDC Cables CA 150MM 08 POS. MOW-PB | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22051142?
Additional datasheets, footprints and schematics for 22051142 are listed on our Part Details page. You can also find images and similar parts to 22051142 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22051142 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22051142 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22051142 fall under?
The 22051142 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22051142 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22051142 you can contact the distributor directly for product support, shipping queries etc.
Is the 22051142 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22051142 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, TME and RS have stock available or on a lead time for 22051142.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22051142 often in real-time on the comparison pages.
What if I can't find stock of 22051142?
You can fill out our help required form which you can use to request a quote for 22051142 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
