22051052 KK,Mini-Latch by Molex

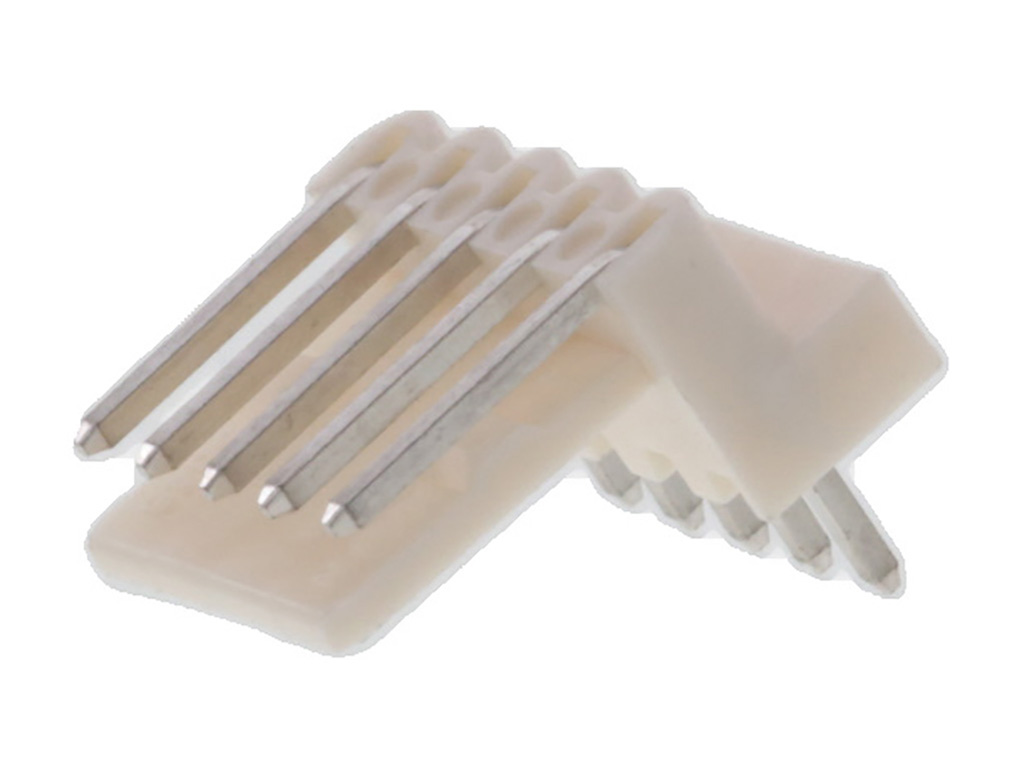

Mini-Latch / KK Wire-to-Board Header, Right-Angle, with Friction Ramp, 5 Circuits, Tin (Sn) Plating, Natural
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-05-1052,
0022051052, 5046-05A |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.95
|
57,037
in stock
|
Buy Now |
|
Farnell
from US$1.04
|
51,334
in stock
|
Buy Now |
|
Newark Electronics
from US$0.79
|
37,737
in stock
|
Buy Now |
|
TTI Americas
from US$0.69
|
1,989
in stock
|
Buy Now |
|
Heilind Americas
from US$0.68
|
306
in stock
|
Buy Now |
|
RS
from US$0.73
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.75
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.05
|
0
in stock
|
Buy Now |
|
element14
from US$0.75
|
0
in stock
|
Buy Now |
|
EME
from US$0.40
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK,Mini-Latch |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 630.500/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.40mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Platine 22051052 1 St. | Conrad |
| PIN HEADER, R/A, 5POS, 1ROW, 2.5MM, TH | Farnell |
| Header Connector, pcb Mount, recept,5 Contacts, pin,0.098 Pitch, pc Tail Terminal Rohs Compliant: Yes |Molex 22-05-1052 | Newark Electronics |
| 2.50MM HDR 05P RA SN FRIC LOCK | TTI Americas |
| 2.5MM 5CKT R/A WAFER ASSY 504605A | Heilind Americas |
| Molex 22-05-1052 Pin Header | RS |
| Pin Header, Wire-to-Board, 2.5 mm, 1 Rows, 5 Contacts, Through Hole Right Angle | Avnet America |
| HEADER 2.5MM WTB, RA, FRICTION LOCK, 5W | RS Americas |
| CONNECTOR, HEADER, 5POS, 1ROW, 2.5MM | element14 |
2205105-2 Copper Cable Assemblies by TE Connectivity
CA 150MM 08 POS. MOW-MOW M-M VALUE LINE
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Color | Gray |
|---|---|
| Equalized | No |
| Keyed | No |
| Configuration | Double-Ended |
| Number of Power Positions | 8 |
| Wire Size | 28AWG |
| Flammability Rating | UL 2651 |
| IEEE 1394 | No |
| CLOUDSPLITTER | No |
| Cable Assembly Length | .15m, .492ft |
| Product Designation | Patch Cord |
| Cable Assembly Category | Industry Standard |
| Product Type | Cable Assembly |
| Cable Assembly Type | MOW to MOW |
Alternative Descriptions
| Ribbon Cables / IDC Cables CA 150MM 08 POS. MOW-MOW | Sager |
