22051042 KK,Mini-Latch by Molex

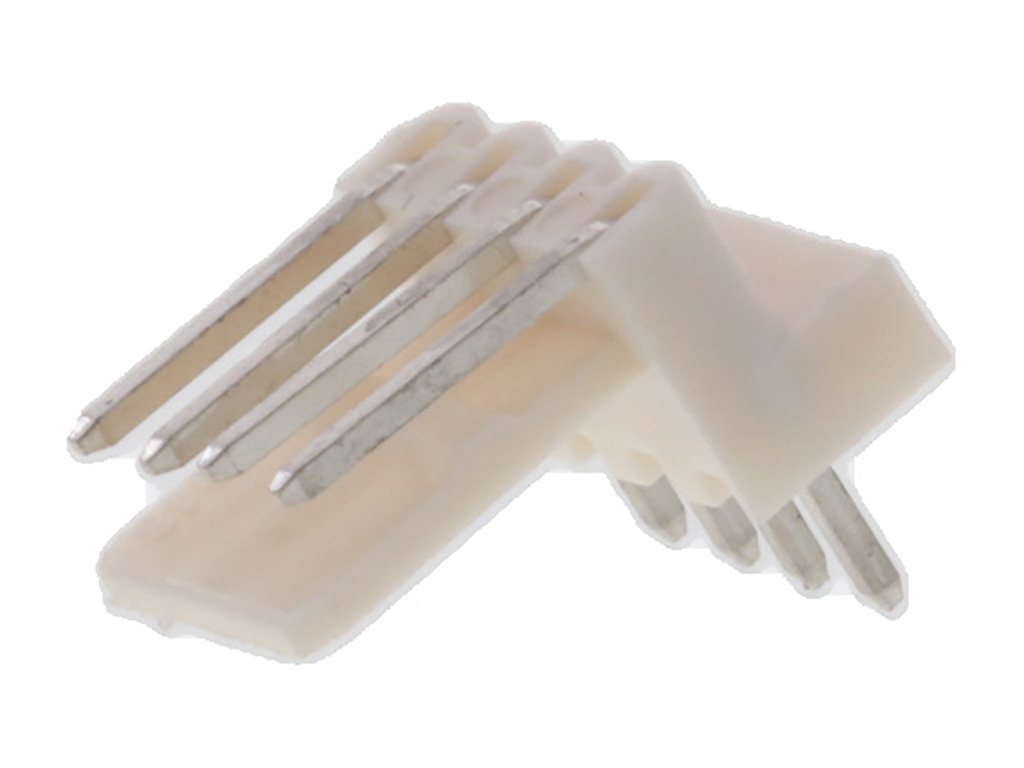

Mini-Latch / KK Wire-to-Board Header, Right-Angle, with Friction Ramp, 4 Circuits, Tin (Sn) Plating, Natural
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-05-1042,
0022051042, 5046-04A |
Where to Buy
Prices starting from US$0.33
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.33
|
17,160
in stock
|
Buy Now |
|
TTI Europe
from US$0.47
|
17,150
in stock
|
Buy Now |
|
element14
from US$0.50
|
17,140
in stock
|
Buy Now |
|
Newark Electronics
from US$1.38
|
1,615
in stock
|
Buy Now |
|
TME
from US$1.06
|
1,500
in stock
|
Buy Now |
|
Powell Electronics
from US$0.93
|
1,066
in stock
|
Buy Now |
|
Heilind Americas
from US$0.73
|
20
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
2
in stock
|
Buy Now |
|
RS Americas
from US$0.73
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK,Mini-Latch |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 498.400/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.40mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, HEADER, 4POS, 1ROW, 2.5MM | Farnell |
| 2.50 MM HEADER RT ANGLE F/L | TTI Europe |
| 2.5MM 4CKT R/A WAFER ASSY 504604A | Heilind Americas |
| HEADER 2.5MM WTB, RA, FRICTION LOCK, 4W | RS Americas |
| 04P PINHEAD W FRICION LOCK 90° | Rutronik |
| 2.50MM HDR 04P RA SN FRIC LOCK | TTI Asia |
2205104-2 Copper Cable Assemblies by TE Connectivity
CA 150MM 06 POS. MOW-MOW M-M VALUE LINE
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Equalized | No |
|---|---|
| Color | Gray |
| Configuration | Double-Ended |
| Keyed | No |
| Number of Power Positions | 6 |
| Wire Size | 28AWG |
| IEEE 1394 | No |
| Flammability Rating | UL 2651 |
| Cable Assembly Length | .15m, .492ft |
| CLOUDSPLITTER | No |
| Cable Assembly Type | MOW to MOW |
| Cable Assembly Category | Industry Standard |
| Product Designation | Patch Cord |
| Product Type | Cable Assembly |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ca 150Mm 06 Pos. Mow-Mow M-M Value Line |Te Connectivity Holsworthy 2205104-2 | Newark Electronics |
| Ribbon cable with connectors | TME |
| Ribbon Cables / IDC Cables CA 150MM 06 POS. MOW-MOW | Sager |
