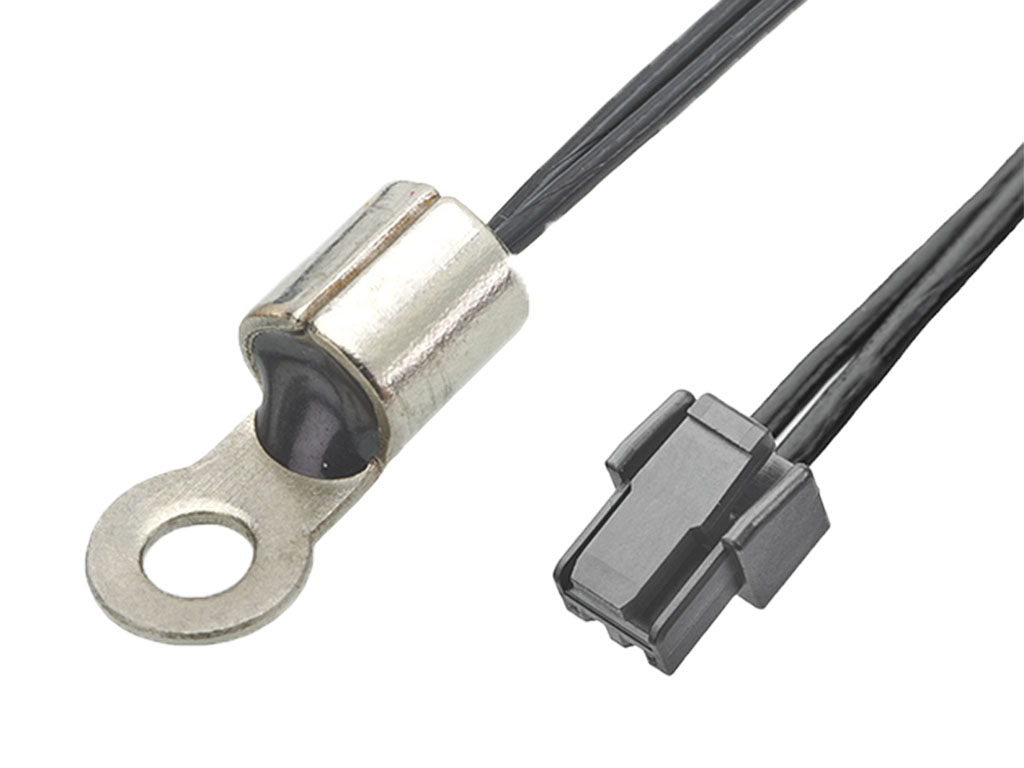

2138652133 NTC Temperature Sensor by Molex
NTC Ring Temperature Sensor-to-Micro-Lock Plus Cable Assembly, 75.00mm Length, 3982 Beta Value with 1% Tolerance, 1kOhm Resistance at 25°C with 2% Tolerance, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 213865-2133 |
Specifications
| Product Name | NTC Temperature Sensor |
|---|---|
| Application | Temperature Sensing |
Electrical |
|
|---|---|
| Beta Value K | 3982 |
| Current Maximum Per Contact | 0.5A |
| Resistance At25ck Ohms | 1 |
| Resistance Tolerance | 2 |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 75.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Nickel |
| Material Plating Termination | Nickel, Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 1.730/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Singleended | No |
| Stud Size | 6 (M3.5) |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | PTFE, UL 10344 |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Specialized Cables NTC SENSING RING TERMINAL ASSY | Sager |
| NTC RING CABLE - 3982 M3.5 75M | Heilind Americas |
