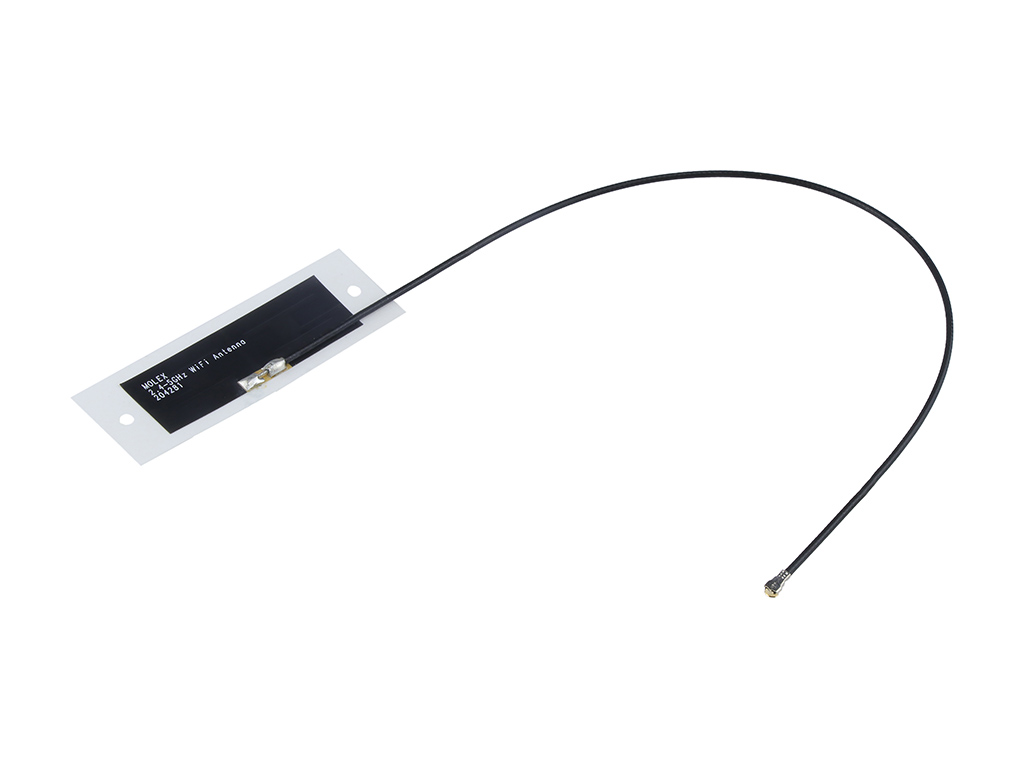

2042811200 2.4/5GHz Wi-Fi Antenna by Molex
Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 200.00mm Cable Length, Compatible with I-PEX MHF4 Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 204281-1200 |
Where to Buy
Prices starting from US$1.61
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.75
|
984
in stock
|
Buy Now |
|
Farnell
from US$2.40
|
890
in stock
|
Buy Now |
|
Newark Electronics
from US$2.39
|
479
in stock
|
Buy Now |
|
element14
from US$2.07
|
479
in stock
|
Buy Now |
|
RS
from US$1.61
|
150
in stock
|
Buy Now |
|
Rutronik
from US$2.25
|
0
in stock
|
Buy Now |
|
TME
from US$1.73
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.72
|
0
in stock
|
Buy Now |
|
Sager
from US$1.71
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Wi-Fi Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5850 |
| Band2f Start Mhz | 5150 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 1.6 @ 2.4 GHz, 2.8 @ 5 GHz |
| Return Loss S11db | < -10 |
| Total Efficiency | >60% @2.4 GHz, >64% @ 5 GHz |
Physical |
|
|---|---|
| Cable Length | 200.00mm |
| Length | 35.00mm |
| Mounting Style | Adhesive |
| Net Weight | 0.935/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.10mm |
| Width | 11.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 204281-1200 1 St. Tape on Full reel | Conrad |
| RF ANTENNA, 5.15 TO 5.85GHZ, 2.8DBI | Farnell |
| 2.4-5Ghz Wifi Ant Edge-Fed 200Mm Mhf4 Rohs Compliant: Yes |Molex 204281-1200 | Newark Electronics |
| WIFI ANTENNA, 5.15-5.85GHZ, 2.8DBI | element14 |
| Molex 204281-1200 WiFi Antenna | RS |
| Flex Antenna 2.4/5 GHz 200mm c | Rutronik |
| Antenna | TME |
| WIFI 6E ANTENNA | TTI Americas |
| Antennas WIFI 6E ANTENNA | Sager |
