2032631234 Sentrality by Molex

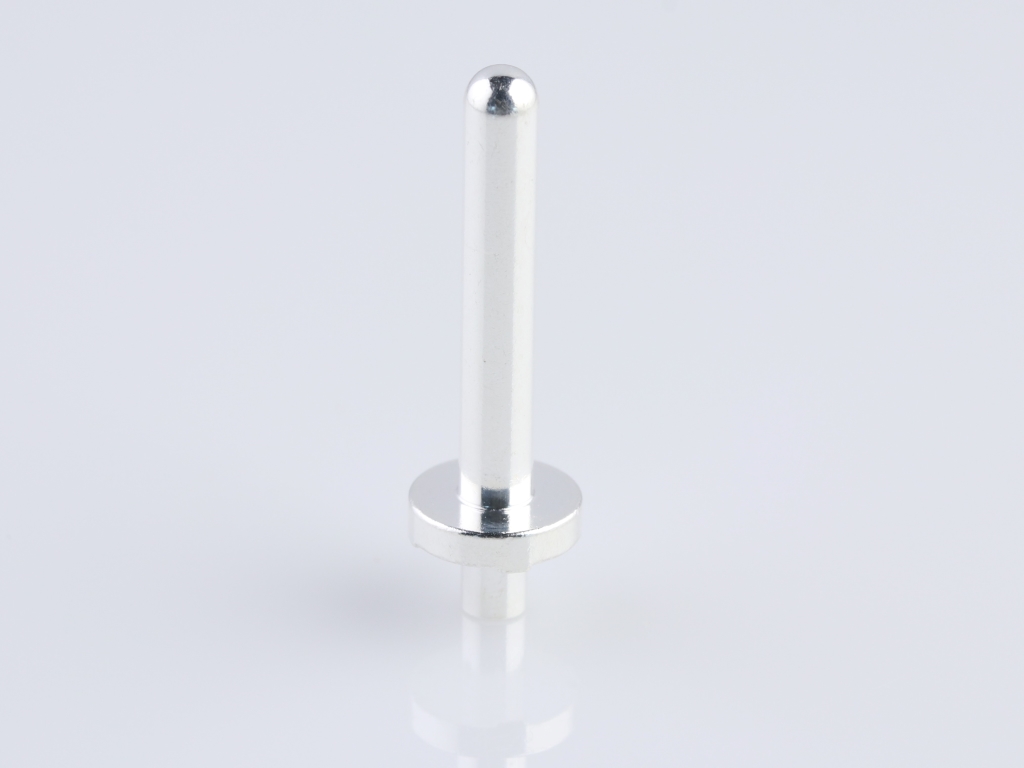

Sentrality 3.40mm Surface Mount Pin, 20.00mm Engagement Length, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 203263-1234 |
Where to Buy
Prices starting from US$0.82
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$3.87
|
431
in stock
|
Buy Now |
|
Conrad
from US$4.18
|
431
in stock
|
Buy Now |
|
Farnell
from US$3.53
|
388
in stock
|
Buy Now |
|
Newark Electronics
from US$0.82
|
77
in stock
|
Buy Now |
|
TTI Europe
from US$3.04
|
50
in stock
|
Buy Now |
|
RS
from US$3.71
|
45
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.03
|
20
in stock
|
Buy Now |
|
element14
from US$3.56
|
11
in stock
|
Buy Now |
|
Avnet America
from US$1.77
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.23
|
0
in stock
|
Buy Now |
|
Sager
from US$2.50
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.46
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.72
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sentrality |
|---|---|
| Application | Board-to-Board, Busbar-to-Board, Busbar-to-Busbar |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 75.00A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 1 |
| Circuits Maximum | 1 |
| Diameter | 3.40mm |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Height Above Board | 20.00mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Silver |
| Material Plating Termination | Silver |
| Net Weight | 2.011/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | No |
| Pitch Mating Interface | N/A |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 203263-1234 | TME |
| Molex Stiftgehäuse-Platine 2032631234 1 St. Tray | Conrad |
| RECT PWR CONTACT, PIN, SURFACE MOUNT | Farnell |
| Male Pin - 3.4Mm Smt Rohs Compliant: Yes |Molex 203263-1234 | Newark Electronics |
| SENT 3.4MM SURFACE MOUNT PIN | TTI Europe |
| Molex 203263-1234 Crimp Terminal | RS |
| 3.40MM COEUR CST PFIT PIN SMT | TTI Americas |
| RECT CONTACT, PIN, SMT | element14 |
| High Current Contact Male 75A Surface Mount Tray | Avnet America |
| SENTRALITY 3.40MM SURFACE MOUNT PIN, 20.00MM ENGAGEMENT LENGTH | RS Americas |
| Pin & Socket Connectors 3.40MM COEUR CST PFIT PIN SMT | Sager |
| MALE PIN - 3.4MM SMT | Heilind Americas |
