2032630006 Sentrality by Molex

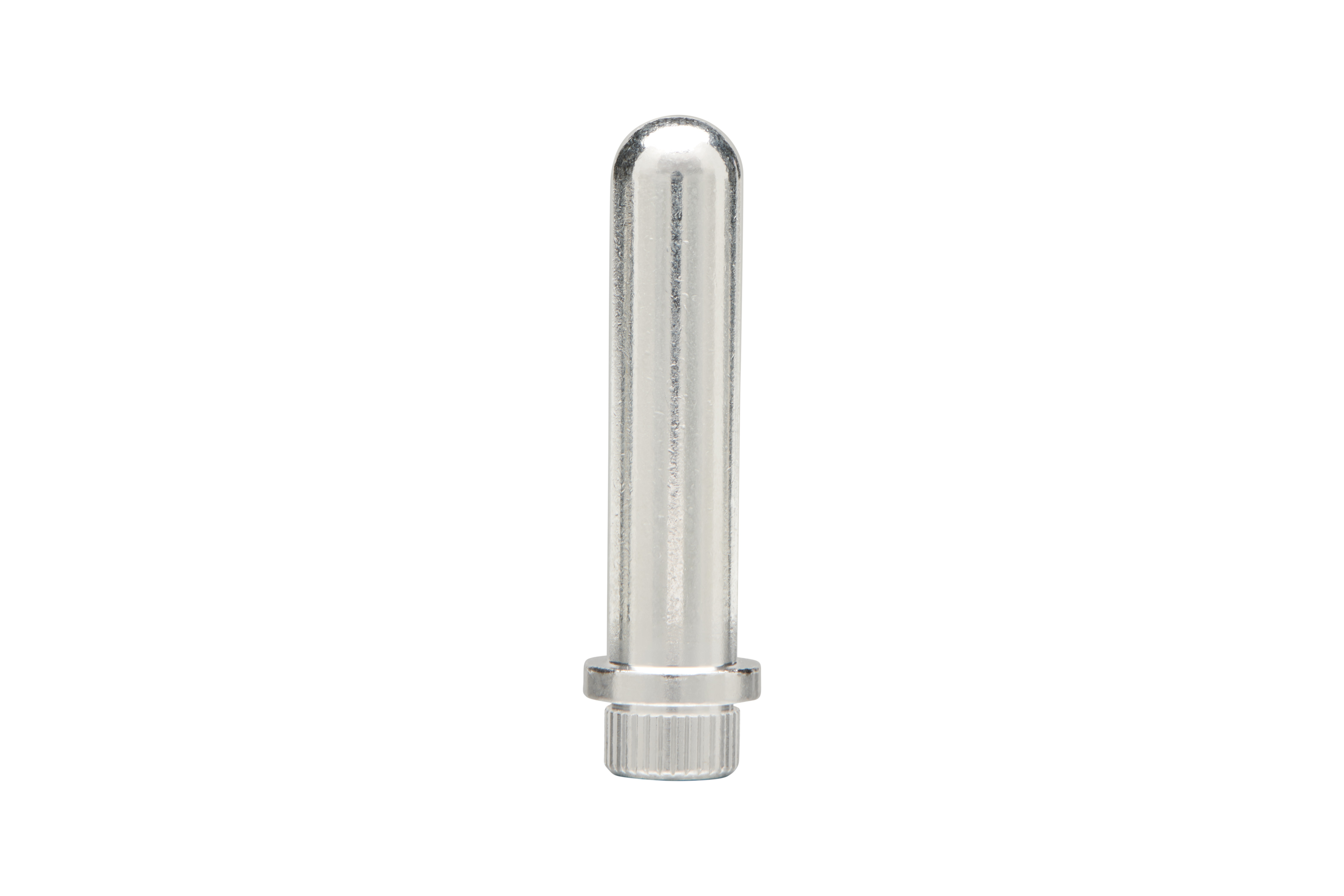

Sentrality 6.00mm Knurled Press-fit Pin, 26.00mm Engagement Length, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 203263-0006 |
Where to Buy
Prices starting from US$1.98
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$3.45
|
2,400
in stock
|
Buy Now |
|
Newark Electronics
from US$2.31
|
150
in stock
|
Buy Now |
|
element14
from US$3.18
|
140
in stock
|
Buy Now |
|
Farnell
from US$3.07
|
140
in stock
|
Buy Now |
|
RS
from US$3.67
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.98
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.44
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
Sager
from US$2.40
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sentrality |
|---|---|
| Application | Board-to-Board, Busbar-to-Board, Busbar-to-Busbar, Power |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 140.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 1 |
| Circuits Maximum | 1 |
| Diameter | 6.00mm |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Height Above Board | 26.00mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Silver |
| Material Plating Termination | Silver |
| Net Weight | 7.527/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | No |
| Pitch Mating Interface | N/A |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Press-Fit |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 203263-0006 | TME |
| Conn Terminal/Busbar Pin/6X26Mm/Pressfit | Newark Electronics |
| RECT CONTACT, PIN, PRESS FIT | element14 |
| Molex 203263-0006 Crimp Terminal | RS |
| High Current Contact Male 140A Press-Fit Tray | Avnet America |
| SENT 6MM PF PIN IN BAG, 26.00MM | RS Americas |
| 6.00MM COEUR CST PFIT PIN SMT | TTI Americas |
| Pin & Socket Connectors 6.00MM COEUR CST PFIT PIN SMT | Sager |
