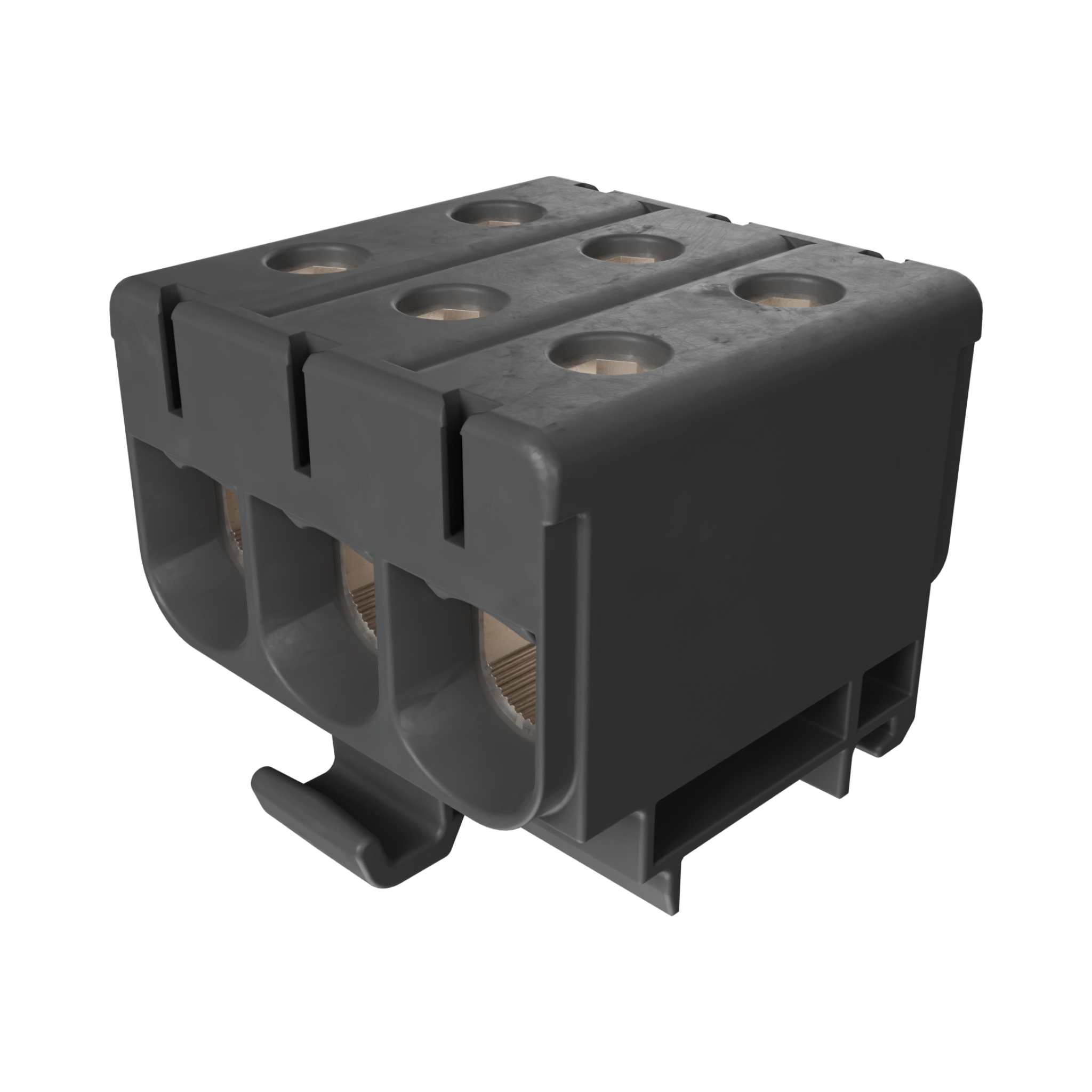

2016066163 Universal Clamp by Molex
High Current Universal Clamp Terminal Block, 35.00mm DIN-rail Mount, 150.0A / 600V, Grey Housing and Cover, 3 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
201606-6163,
MX-KE61-03 |
Where to Buy
Prices starting from US$8.95
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$18.34
|
120
in stock
|
Buy Now |
|
Newark Electronics
from US$18.59
|
90
in stock
|
Buy Now |
|
Farnell
from US$15.95
|
90
in stock
|
Buy Now |
|
element14
from US$16.74
|
87
in stock
|
Buy Now |
|
Waytek
from US$10.13
|
81
in stock
|
Buy Now |
|
Heilind Americas
from US$11.02
|
3
in stock
|
Buy Now |
|
Avnet America
from US$8.95
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$13.82
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$10.59
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$15.34
|
0
in stock
|
Buy Now |
|
Sager
from US$10.04
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$12.92
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Universal Clamp |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 150.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Gray |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Aluminum |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 77.000/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Panel Mount | No |
| Pitch Mating Interface | N/A |
| Polarized To Mating Part | N/A |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Screw |
| Wire Size Awg | 1/0-6, 6+6, 8+8+8 |
| Wire Size Mm | 13.00+13.00, 13.00-53.00, 8.30+8.30+8.30 |
