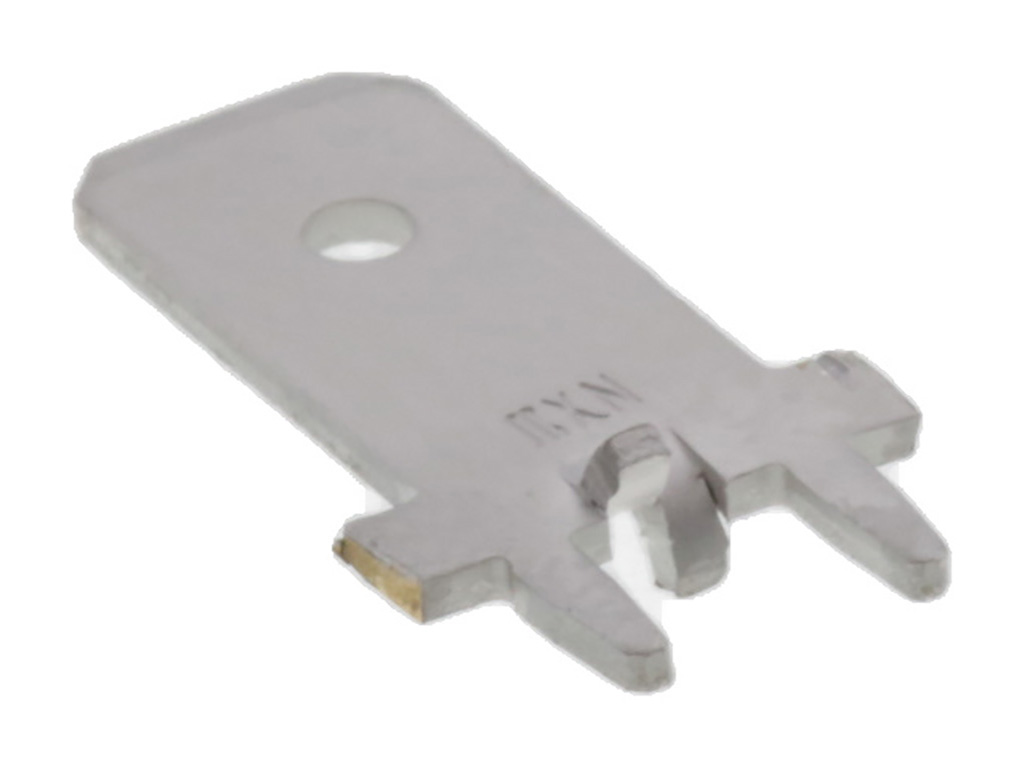

197054003 PCB Tab by Molex
PCB Tab Quick Disconnect, Male, for Wire, Metal Strip, Tab 6.35 x 0.81mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19705-4003,
0197054003 |
Where to Buy
Prices starting from US$0.08
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.11
|
25,000
in stock
|
Buy Now |
|
RS
from US$0.13
|
7,950
in stock
|
Buy Now |
|
Heilind Americas
from US$0.08
|
3,750
in stock
|
Buy Now |
|
Newark Electronics
from US$0.14
|
60
in stock
|
Buy Now |
|
Avnet America
from US$0.10
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.18
|
0
in stock
|
Buy Now |
|
element14
from US$0.12
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.08
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.12
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.09
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PCB Tab |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | N/A |
Physical |
|
|---|---|
| Barrel Type | N/A |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | No |
| Insulation | None |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.502/g |
| Orientation | PCB Straight Tab |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Termination Interface Style | Through Hole |
| Wire Insulation Diameter | N/A |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| NTAB-DSC|PCB |250X032|N-I|SN | TTI Americas |
| Molex 197054003 Spade Connector | RS |
| .250 X .032 STRIP PCB TERMINA PLATED | Heilind Americas |
| Pcb Terminal, 1.7Mm, Brass | Newark Electronics |
| Quick Disconnect Terminal M 7.9mm Tin Reel | Avnet America |
| .250 X .032 STRIP PCB TERMINAL PLATED | RS Americas |
| PCB TERMINAL, 1.7MM, BRASS | element14 |
