196060006 Avikrimp by Molex

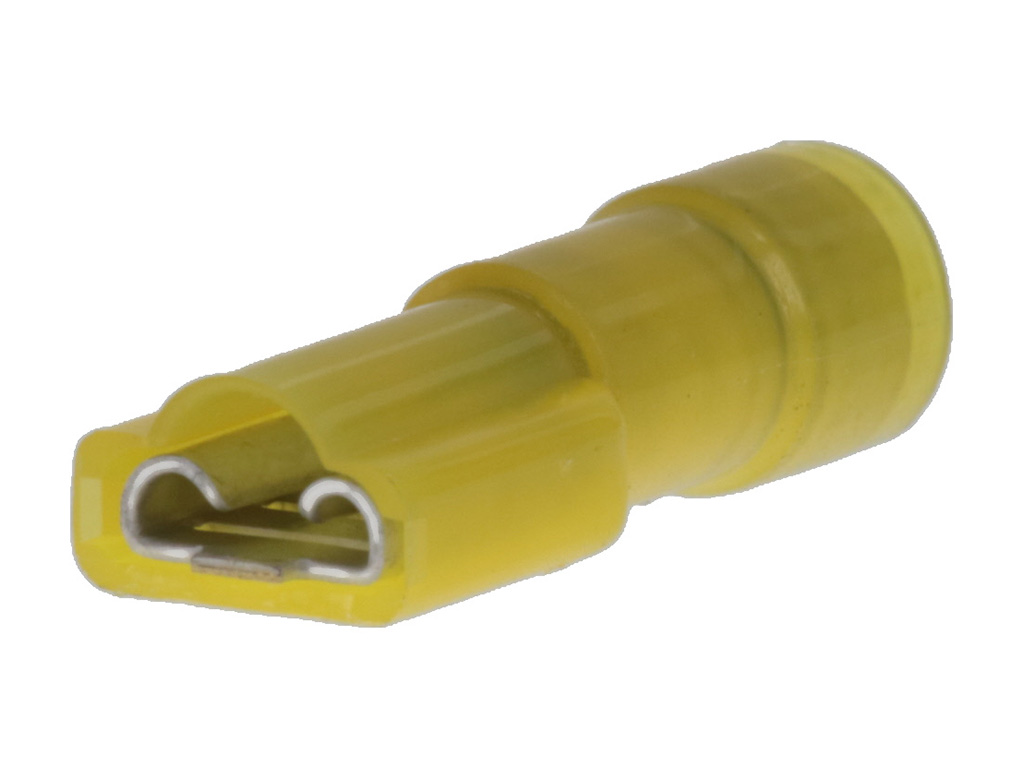

Avikrimp Fully Insulated Quick Disconnect, Female, for 12-10 AWG Wire, Mylar Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19606-0006,
0196060006, C-5293T |
Where to Buy
Prices starting from US$0.43
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.43
|
64,875
in stock
|
Buy Now |
|
Newark Electronics
from US$0.81
|
7,500
in stock
|
Buy Now |
|
TTI Americas
from US$0.47
|
4,500
in stock
|
Buy Now |
|
TME
from US$0.54
|
2,500
in stock
|
Buy Now |
|
Conrad
from US$0.72
|
2,500
in stock
|
Buy Now |
|
Farnell
from US$0.56
|
2,500
in stock
|
Buy Now |
|
RS
from US$0.69
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.57
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.75
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.43
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.713/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 5.84mm max. |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| C-5293T LOW PROF AVIK FIQD 25 X032 TAPE | Heilind Americas |
| Female Disconnect, 6.35Mm, 12-10Awg, Yel | Newark Electronics |
| FREC-DSC|12-10|250X032|NYL|YEL | TTI Americas |
| Terminal: flat | TME |
| Molex 19606-0006 Flachsteckhülse 1 St. Tape on Full reel | Conrad |
| CRIMP TERMINALS - CONNECT AND DISCONNECT | Farnell |
| Molex 19606-0006 Spade Connector | RS |
| C-5293T LOW PROF AVIK FIQD 250X032 TAPE | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 196060006?
Additional datasheets, footprints and schematics for 196060006 are listed on our Part Details page. You can also find images and similar parts to 196060006 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 196060006 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 196060006 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 196060006 fall under?
The 196060006 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 196060006 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 196060006 you can contact the distributor directly for product support, shipping queries etc.
Is the 196060006 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 196060006 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, TTI Americas, TME and Conrad have stock available or on a lead time for 196060006.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 196060006 often in real-time on the comparison pages.
What if I can't find stock of 196060006?
You can fill out our help required form which you can use to request a quote for 196060006 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
